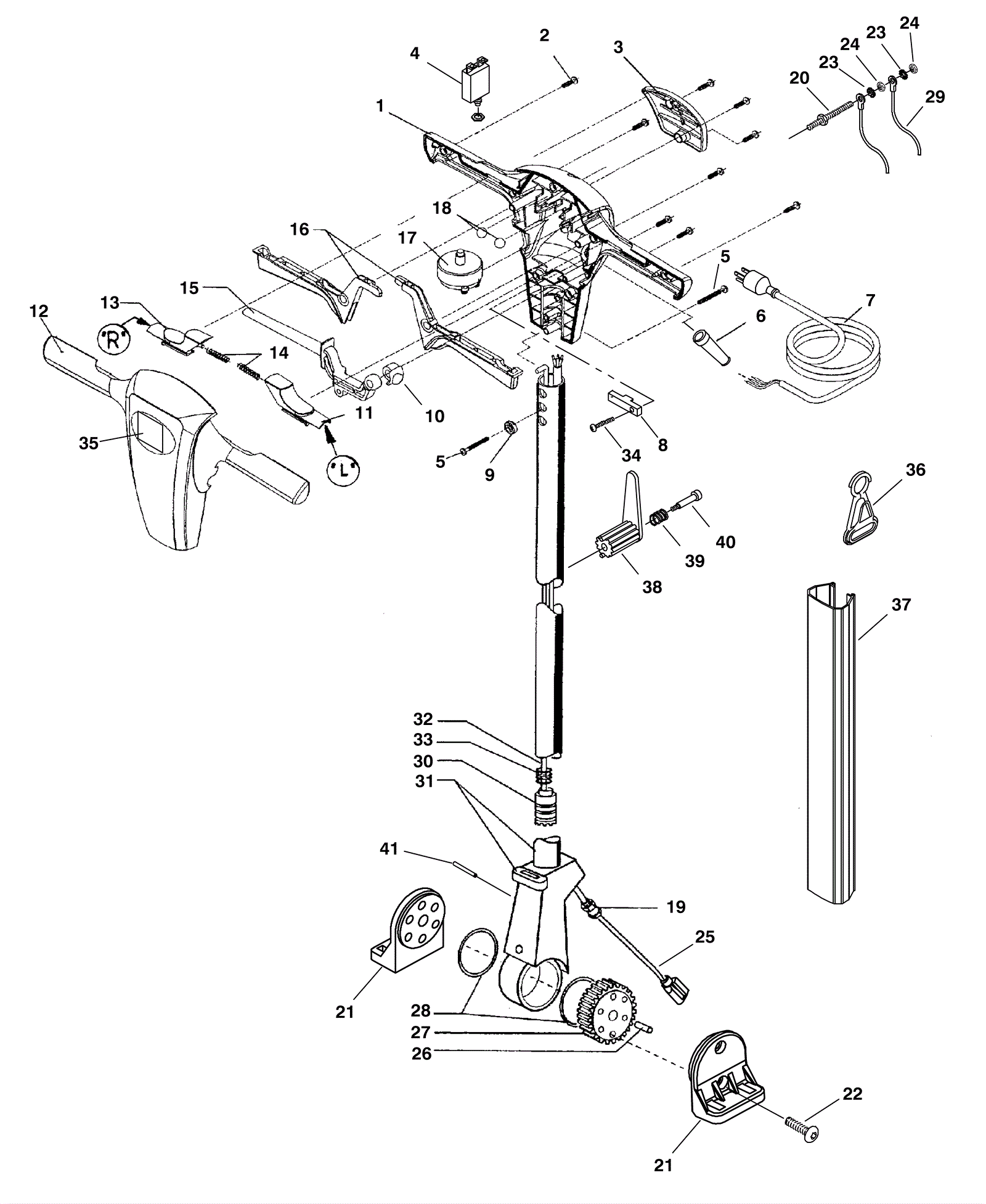

ULTRASHINE Handle Assembly - SN 10419263 and After

#PartDescriptionPriceReqNotesAvailability
1 375-1467 Rear handle cover $111.87 1 (SN 10419263 and after) usually ships 10-16 days
2 175-7660 Screw #10-14 x .675 shoulder self-tapping $3.04 9 (SN 10419263 and after) ships same day
3 375-1468 Cover $18.81 1 (SN 10419263 and after) usually ships 10-16 days
4 175-7698 17amp circuit breaker $52.80 1 (SN 10419263 and after) usually ships 10-16 days
5 275-4694 Screw #10-14 x 1 1/2 shoulder self-tapping $3.04 2 (SN 10419263 and after) usually ships 10-16 days
6 175-7664 Strain relief $35.31 1 (SN 10419263 and after) ships same day
7 275-2293 14/3 power cord 75 foot $288.97 1 (SN 10419263 and after) usually ships 10-16 days
8 275-2307 Binding post $5.50 1 (SN 10419263 and after) usually ships 10-16 days
9 275-2308 Flanged bushing $4.88 1 (SN 10419263 and after) usually ships 10-16 days
10 275-2309 Plug $5.50 1 (SN 10419263 and after) usually ships 10-16 days
11 175-7669 Left side safety lock button (Tennant Industrial) $10.34 1 (SN 10419263 and after) usually ships 10-16 days
12 375-1469 Front handle cover $102.41 1 (SN 10419263 and after) usually ships 10-16 days
13 175-7671 Right side safety lock button $4.68 1 (SN 10419263 and after) ships same day
14 175-7672 Spring $8.14 2 (SN 10419263 and after) usually ships 10-16 days
15 275-2310 Handle adjustment lever $8.47 1 (SN 10419263 and after) usually ships 10-16 days
16 175-7673 Lever $9.57 2 (SN 10419263 and after) usually ships 10-16 days
17 275-2311 Press switch $97.90 1 (SN 10419263 and after) usually ships 10-16 days
18 175-7675 Ball $4.88 2 (SN 10419263 and after) usually ships 10-16 days
19 275-2312 Cord grip $14.08 1 (SN 10419263 and after) ships same day
20 275-2313 Screw M4-.7 x 12mm hex head double threaded $1.85 1 (SN 10419263 and after) usually ships 10-16 days
21 275-2314 Handle pivot $40.70 2 (SN 10419263 and after) usually ships 10-16 days
22 999-0802 Screw M8-1.25 x 16mm socket head $0.99 4 (SN 10419263 and after) ships same day
23 999-0148 Washer #6 external star lock zinc plated $0.99 2 (SN 10419263 and after) ships same day
24 999-0869 Nut M4-.7 hex coarse thread plain finish $0.99 2 (SN 10419263 and after) ships same day
25 275-2315 Interconnect cord $21.34 1 (SN 10419263 and after) usually ships 10-16 days
26 275-2316 Roll pin $1.85 2 (SN 10419263 and after) usually ships 10-16 days
27 275-2317 Locking gear $121.88 1 (SN 10419263 and after) usually ships 10-16 days
28 175-3967 Seal $5.50 2 (SN 10419263 and after) ships same day
29 275-2318 Wire assembly $14.85 1 (SN 10419263 and after) usually ships 1-5 days
30 275-2319 Plunger kit $66.66 1 (SN 10419263 and after) usually ships 10-16 days
31 275-2320 Tube assembly $300.08 1 (SN 10419263 and after) usually ships 10-16 days
32 275-2321 Handle release rod $32.01 1 (SN 10419263 and after) usually ships 10-16 days
33 275-2322 Spring $3.04 1 (SN 10419263 and after) usually ships 10-16 days
34 175-7660 Screw #10-14 x .675 shoulder self-tapping $3.04 2 (SN 10419263 and after) ships same day
35 375-1470 Nobles decal (OBSOLETE) $13.20 1 (SN 10419263 and after) usually ships 10-16 days
36 175-0236 Cord belt clip $10.23 1 (SN 10419263 and after) ships same day
37 N/A Not available Call for price 1 (Handle cover) (SN 10419263 and after) usually ships 3-26 days
38 175-5503 Quick release cord hook $7.70 1 (SN 10419263 and after) ships same day
39 175-5504 Spring $4.88 1 (SN 10419263 and after) usually ships 10-16 days
40 175-1719 Shoulder bolt $5.50 1 (SN 10419263 and after) usually ships 10-16 days
41 275-2325 Roll pin $1.85 1 (SN 10419263 and after) usually ships 10-16 days
KIT 1 275-6092 Handle assembly $2,833.82 1 (includes 1-34) (SN 10419263 and after) usually ships 1-5 days
