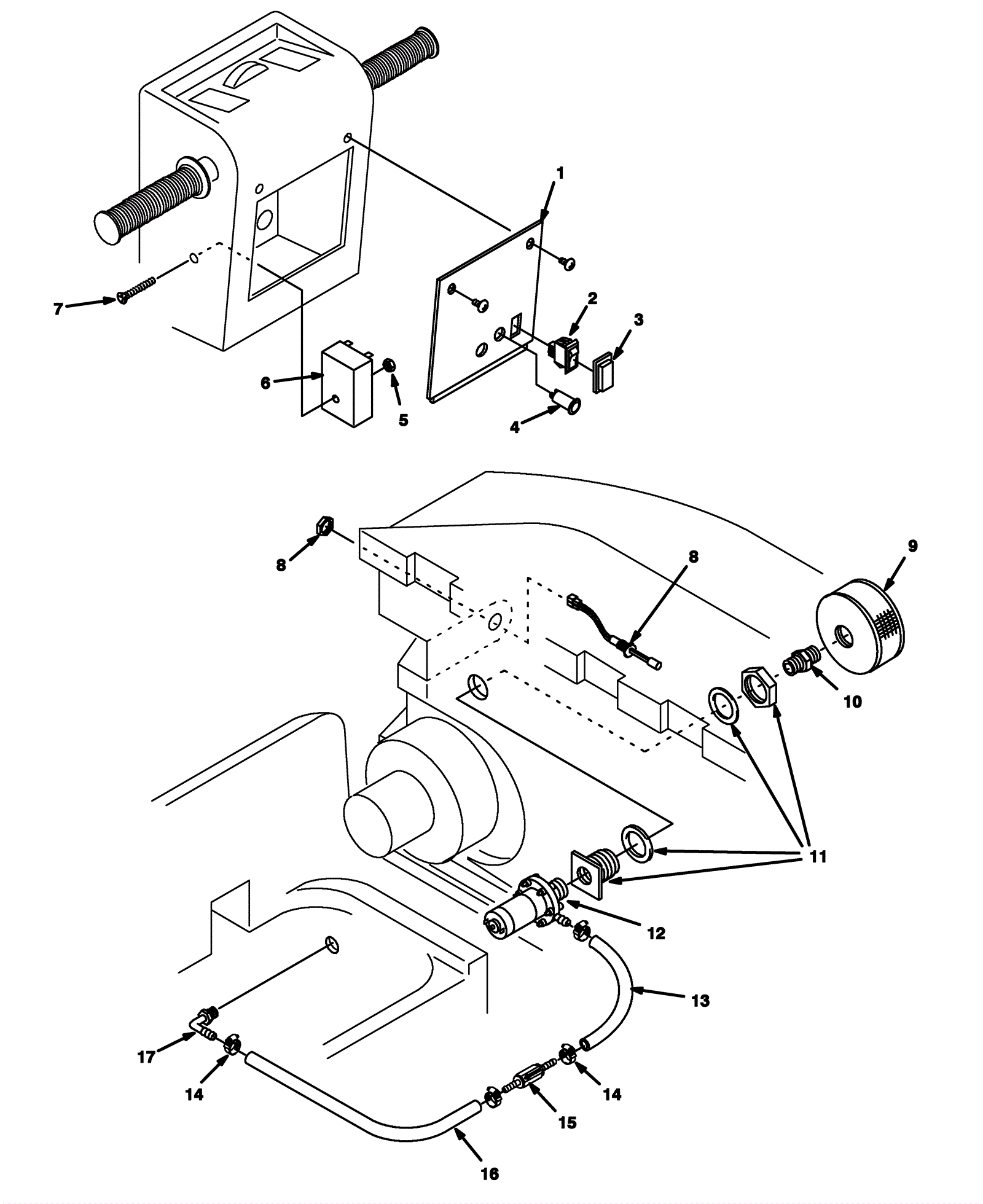

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
175-6664
|
Control panel cover (OBSOLETE) |
1 |
(included with entire assembly) |
|
2 |
175-2847
|
Rocker switch |
1 |
(included with entire assembly) |
|
3 |
175-2848
|
Rocker switch splash guard |
1 |
(included with entire assembly) |
|
4 |
175-2849
|
Indicator light |
1 |
(included with entire assembly) |
|
5 |
999-0442
|
Nut 10-24 nylon insert lock stainless steel |
1 |
(included with entire assembly) |
|
6 |
175-2845
|
Relay |
1 |
(included with entire assembly) |
|
7 |
999-0449
|
Screw 10-24 x 1 1/2 flat head slotted zinc plated |
1 |
(included with entire assembly) |
|
8 |
175-2835
|
Liquid level switch with nut |
1 |
(included with entire assembly) |
|
9 |
175-2836
|
Screen filter (OBSOLETE) |
1 |
(included with entire assembly) |
|
10 |
175-2837
|
3/4 inch nipple fitting (OBSOLETE) |
1 |
(included with entire assembly) |
|
11 |
175-2838
|
Bulkhead fitting 3/4 inch (OBSOLETE) |
1 |
(included with entire assembly) |
|
12 |
175-2840
|
24V solution pump |
1 |
(included with entire assembly) |
|
13 |
175-4809
|
Wand pump hose |
1 |
(included with entire assembly) |
|
14 |
175-6081
|
Hose clamp |
4 |
(included with entire assembly) |
|
15 |
175-2842
|
Check valve |
1 |
(included with entire assembly) |
|
16 |
175-5904
|
Hose 3/8 x 13 inch |
1 |
(included with entire assembly) |
|
17 |
175-2844
|
90 degree elbow fitting |
1 |
(included with entire assembly) |
|
N/S |
175-3724
|
Extended scrub wire harness (OBSOLETE) |
1 |
(entire assembly) |
|
N/S |
175-6663
|
Extended scrub (ES) recycle kit (OBSOLETE) |
1 |
(included with entire assembly) |
|
