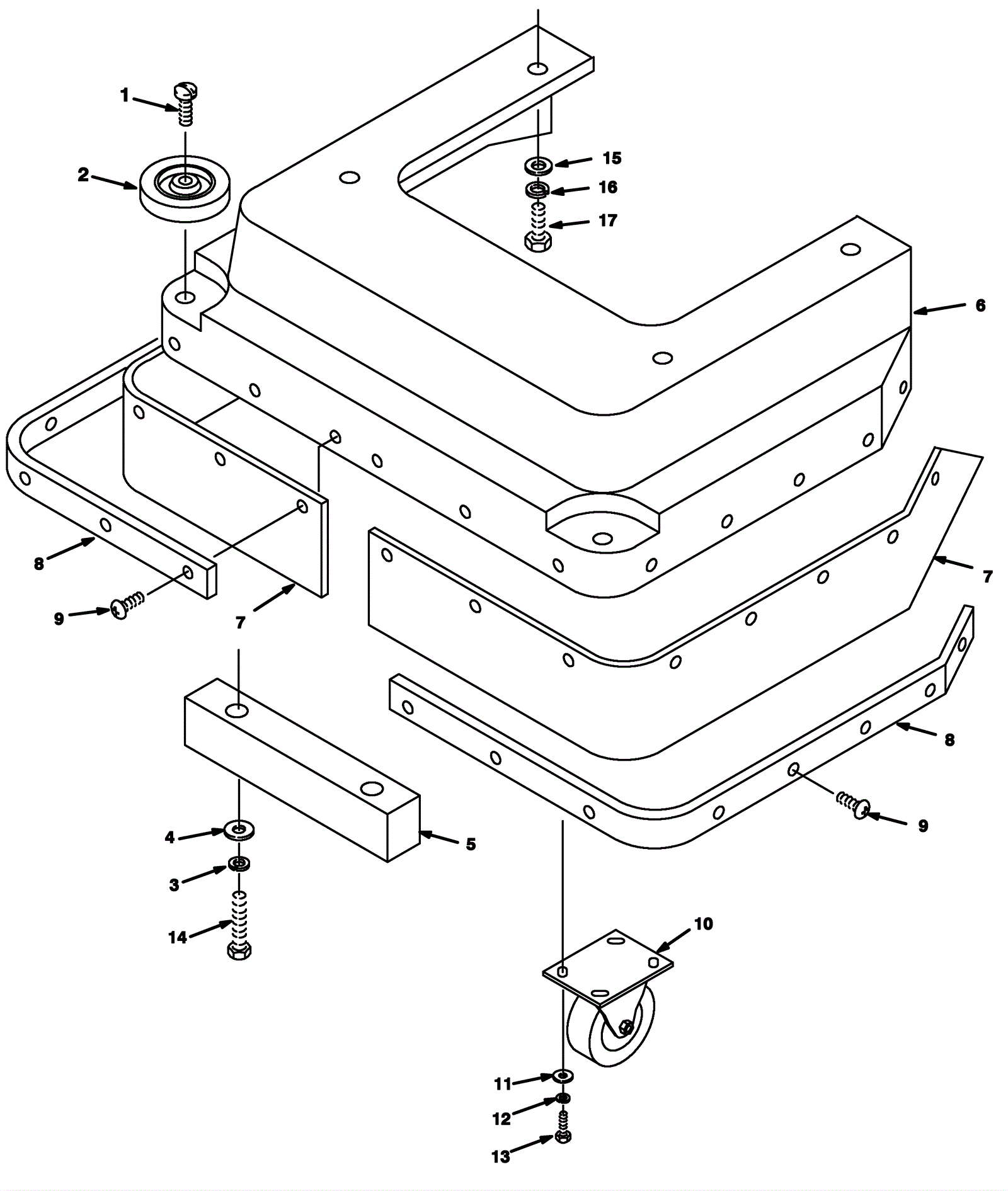

Skirt Assembly

#PartDescription ReqNotesAvailability
1 999-1039 Screw 5/16-18 x 1 1/2 truss head phillips stainless steel 2
2 175-0117 Guide wheel with bushing 2
3 999-0553 Washer 5/16 medium split lock stainless steel 4
4 999-0024 Washer 5/16 flat stainless steel 2
5 175-1041 Weight 1
6 475-2293 SKIRT, HSNG, RM-CPHG, AFMKT [WB-20] 1
7 175-2974 Splash guard 2
8 175-1157 Splash guard strap 2
9 999-0586 Screw 10-24 x 1/2 truss head stainless steel 16
10 175-3496 Swivel caster 3 x 1-1/2 2
11 999-0016 Washer 1/4 flat plain finish 8
12 999-0632 Washer 1/4 split lock stainless steel 8
13 999-1032 Screw 1/4-20 x 5/8 hex head stainless steel 8
14 175-0955 Screw 5/16-18 x 2 1/2 2
15 999-0024 Washer 5/16 flat stainless steel 4
16 999-0553 Washer 5/16 medium split lock stainless steel 4
17 999-0109 Bolt 5/16-18 x 1 1/2 hex head grade 5 zinc plated 4
