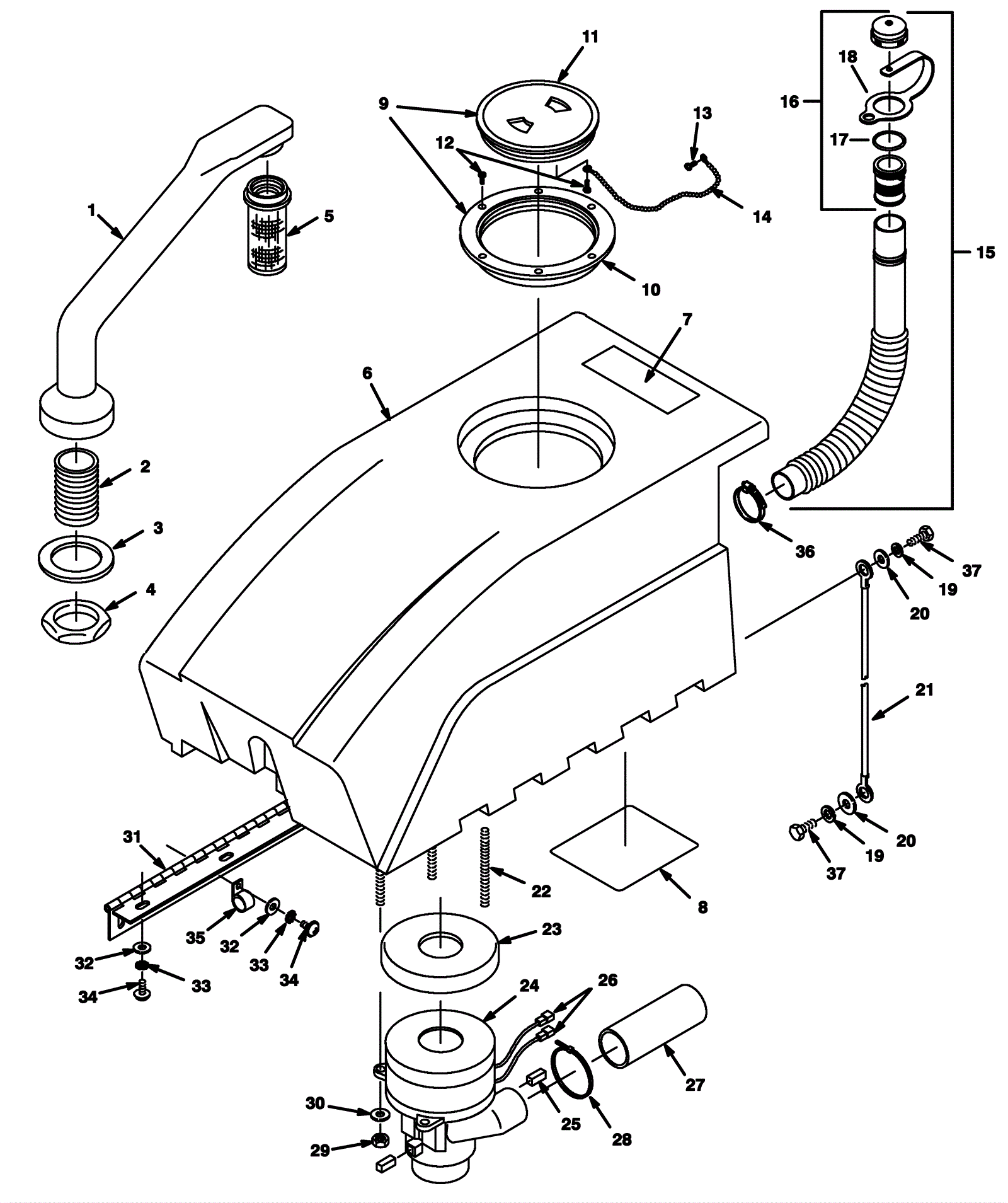

WB-20B Recovery Tank Assembly

#PartDescriptionPriceReqNotesAvailability
1 175-2998 Standpipe with nipple assembly $177.76 1 (includes item 2) usually ships 10-16 days
2 175-2639 1 1/2 inch nipple fitting $21.56 1 (also included in 2) usually ships 10-16 days
3 175-2640 Gasket $5.28 1 ships same day
4 175-2907 Nut 1 1/2 flanged hex $6.82 1 usually ships 10-16 days
5a 175-2642 Shut-off float $115.06 1 usually ships 10-16 days
5b 991-5136 Shut-off float $33.33 1 (NON-OEM) ships same day
6a 175-7421 Green recovery tank assembly with labels $713.68 1 (includes 7&8) usually ships 1-5 days
6b 175-6643 Teal recovery tank assembly (OBSOLETE) $548.68 1 (includes 7&8) usually ships 1-5 days
6c 475-2667 TANK, RECVY, RM-CPHG, AFMKT [WB-20] $740.74 1 (includes 7&8) usually ships 10-16 days
7 175-2868 Warning decal $12.32 1 also included in 6a, 6b,6c) ships same day
8 175-6644 Battery recharging decal $30.25 1 also included in 6a, 6b,6c) usually ships 10-16 days
9 164-0202 Tank lid assembly $86.30 1 (assembly) usually ships 7-10 days
10 164-0205 Tank lid ring (black) $34.98 1 (included with assembly 9) ships same day
11a 164-0044 Tank lid (clear) $62.22 1 (included with assembly 9) ships same day
11b 991-1928 Tank lid (clear) (OBSOLETE) $137.84 1 (NON-OEM) usually ships 14-21 days
12 999-1111 Screw 6-32 x 3/4 pan head phillips sheet metal $1.43 6 ships same day
13 999-0434 Screw 6 x 3/8 pan head phillips $0.99 1 ships same day
14 175-2650 Chain $6.05 1 usually ships 10-16 days
15a 175-1153 Drain hose assembly $88.44 1 (includes 16) usually ships 10-16 days
15b 991-5136 Shut-off float $33.33 1 (NON-OEM) ships same day
16 175-4214 Drain plug assembly $20.35 1 (includes 17-18) (alsoincluded in 15) ships same day
17 175-5804 O-ring $11.77 1 (assembly included with assembly 16) ships same day
18 175-4214 Drain plug assembly $20.35 1 (assembly included with assembly 16) ships same day
19 999-0632 Washer 1/4 split lock stainless steel $0.99 2 ships same day
20 999-0016 Washer 1/4 flat plain finish $0.99 2 ships same day
21 175-2651 Support cable $26.18 1 ships same day
22 175-6645 Stud 1/4-20 x 4 $5.41 3 usually ships 1-5 days
23 175-6085 Gasket $10.12 1 ships same day
24 275-9420 24V 2 stage vacuum motor $701.91 1 (includes 25) ships same day
25 175-2658 Carbon brush (pkg of 2) $36.30 1 (also included with 24) ships same day
26 175-0142 1/4 inch male terminal $4.88 2 usually ships 10-16 days
27 175-2979 Vacuum exhaust muffler $32.01 1 usually ships 10-16 days
28 175-0921 Wire tie $4.88 1 usually ships 10-16 days
29 999-0152 Nut 1/4-20 nylon insert lock zinc plated $0.99 3 ships same day
30 999-0016 Washer 1/4 flat plain finish $0.99 3 ships same day
31 175-4221 Tank hinge $15.40 1 usually ships 10-16 days
32 999-0016 Washer 1/4 flat plain finish $0.99 9 ships same day
33 999-1024 Washer 1/4 external tooth lock stainless steel $1.32 9 ships same day
34 999-0557 Screw 1/4-20 x 1/2 truss head slotted stainless steel $0.99 9 ships same day
35 175-2667 P clamp $4.88 1 usually ships 10-16 days
36 997-2000 Hose clamp $2.37 1 ships same day
37 999-1032 Screw 1/4-20 x 5/8 hex head stainless steel $0.99 2 ships same day
