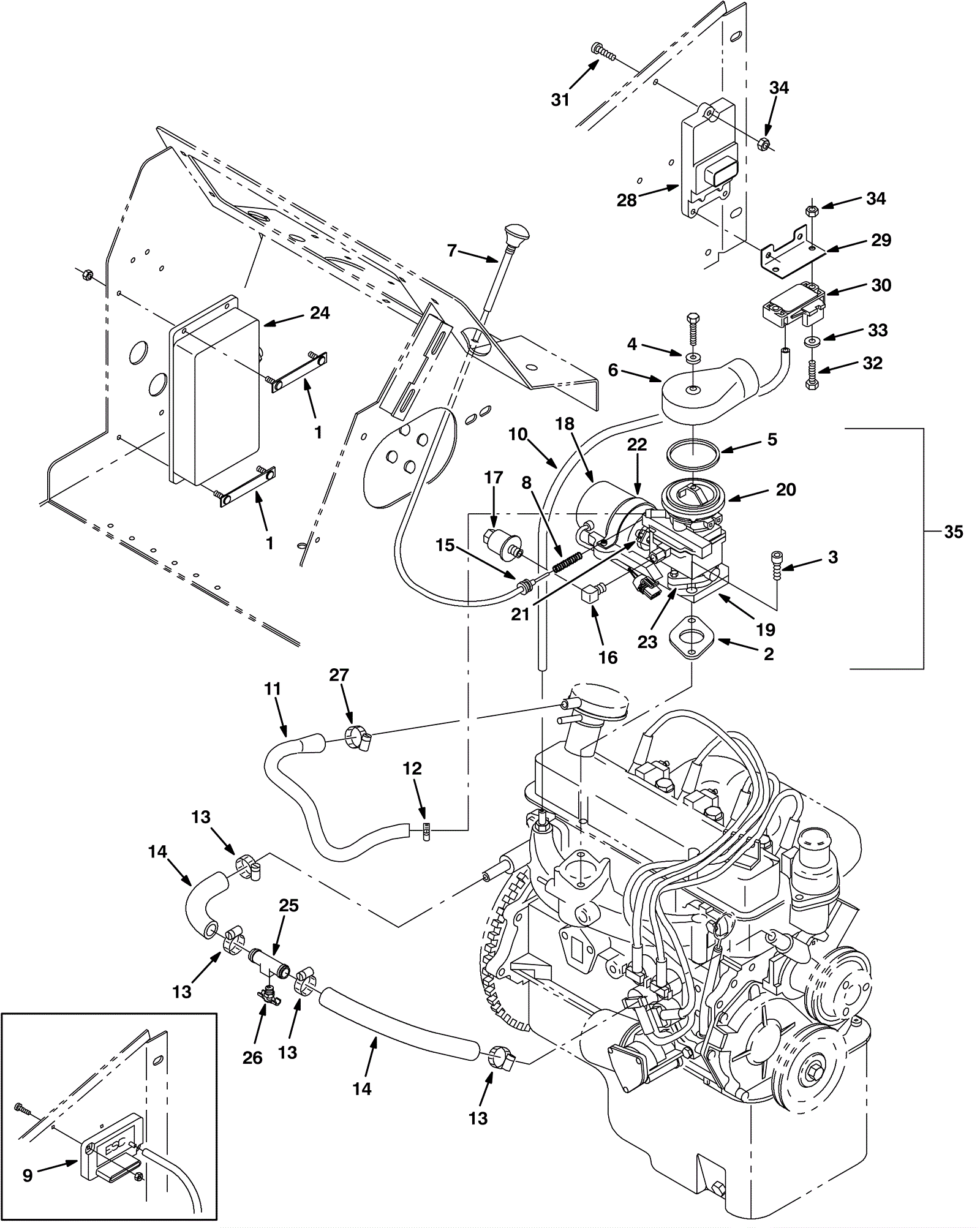

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
375-3823
|
Plate (Tennant Industrial) |
2 |
|
|
2 |
375-3824
|
Carb gasket (Tennant Industrial) |
1 |
|
|
3 |
999-1320
|
Screw M6-1 x 20mm socket head stainless steel |
2 |
|
|
4 |
175-8945
|
Washer 9/32 x 5/8 x 1/16 nylon |
1 |
|
|
5 |
375-3767
|
Carburetor air horn gasket (Tennant Industrial) |
1 |
|
|
6 |
375-3768
|
Gas carburetor elbow adaptor (Tennant Industrial) |
1 |
|
|
7 |
375-3769
|
Cable choke assembly (Tennant Industrial) |
1 |
|
|
8 |
375-3770
|
Compression spring (Tennant Industrial) |
1 |
|
|
9 |
375-3835
|
Ignition control (Tennant Industrial) |
1 |
(before SN 005504) |
|
10 |
375-0754
|
Vacuum hose (Tennant Industrial) |
1 |
|
|
11 |
375-3826
|
Solution hose (Tennant Industrial) |
1 |
|
|
12 |
175-3594
|
Hose clamp |
1 |
|
|
13 |
175-2159
|
Hose clamp |
4 |
|
|
14 |
275-3885
|
HOSE, HEATER, E90, 0.62ID, 24.0 4.0 (Tennant Industrial) |
1 |
|
|
15 |
375-3771
|
Rubber grommet (OBSOLETE) |
1 |
|
|
16a |
375-3776
|
Gas governor assembly (Tennant Industrial) |
1 |
(includes 16b-24a) |
|
16b |
375-6043
|
Gas governor (OBSOLETE) |
1 |
(includes 16c-24a) |
|
16c |
275-0336
|
90 degree elbow pipe fitting |
1 |
|
|
17 |
375-3772
|
Fuel filter (Tennant Industrial) |
1 |
|
|
18 |
375-3827
|
Actuator (Tennant Industrial) (OBSOLETE) |
1 |
|
|
19 |
N/A
|
Not available |
1 |
(bracket) |
|
20a |
375-3773
|
Carburetor (Tennant Industrial) |
1 |
|
|
20b |
375-3774
|
Carb repair kit (Tennant Industrial) |
1 |
|
|
21 |
375-3828
|
Linkage kit (Tennant Industrial) |
1 |
|
|
22 |
375-3829
|
Actuator strap (Tennant Industrial) |
1 |
|
|
23 |
375-3824
|
Carb gasket (Tennant Industrial) |
1 |
|
|
24a |
375-3830
|
Control kit (Tennant Industrial) |
1 |
(after SN 005818) (includes 24b) |
|
24b |
375-3809
|
Control box plug kit (tennant industrial) |
2 |
|
|
25 |
375-0482
|
Air bleed tube (Tennant Industrial) |
1 |
|
|
26 |
375-3775
|
Brass fitting (Tennant Industrial) |
1 |
|
|
27 |
175-6081
|
Hose clamp |
1 |
|
|
28 |
375-3831
|
Control module (Tennant Industrial) |
1 |
(after SN 005503) |
|
29 |
375-3832
|
Sensor bracket (Tennant Industrial) |
1 |
(after SN 005503) |
|
30 |
375-3833
|
Sensor (Tennant Industrial) |
1 |
(after SN 005503) |
|
31 |
175-3219
|
SCREW, PAN, PHL, M6 X 1.00 X 25, 4.8 (Tennant Industrial) |
3 |
(after SN 005503) |
|
32 |
175-6758
|
Screw M6-1 x 30mm hex head |
2 |
(after SN 005503) |
|
33 |
999-0006
|
Washer 3/16 flat zinc plated |
2 |
(after SN 005503) |
|
34 |
999-0469
|
Nut M6-1 nylon insert lock zinc plated |
5 |
(after SN 005503) |
|
