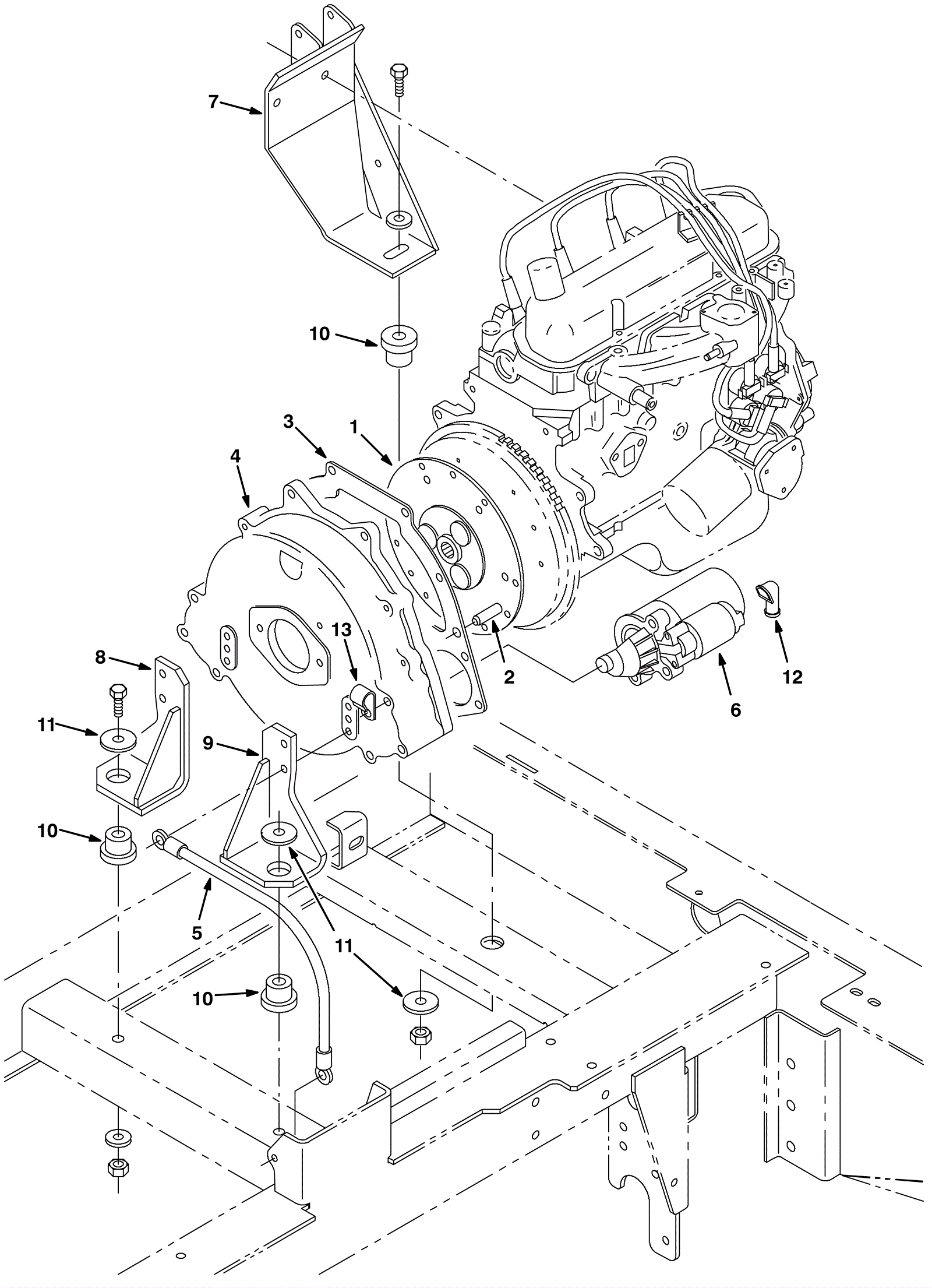

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
375-9140
|
Drive coupling (Tennant Industrial) |
1 |
|
|
2 |
275-7507
|
DOWEL, CY. BLOCK TO FLYWHL HSG (Tennant Industrial) |
2 |
|
|
3a |
275-7508
|
RING, LOCATING, STARTER (Tennant Industrial) |
1 |
(before SN 003072) |
|
3b |
275-7509
|
RING, LOCATING, STARTER (Tennant Industrial) |
1 |
(after SN 003071) |
|
4a |
N/A
|
Not available |
1 |
(before SN 003072) (housing replacement kit) |
|
4b |
275-7511
|
HOUSING, FLYWHEEL (Tennant Industrial) |
1 |
(after SN 003071) |
|
5 |
275-7512
|
WIRE ASSEMBLY (Tennant Industrial) |
1 |
|
|
6a |
N/A
|
Not available |
1 |
(before SN 003072) (starter replacement kit) |
|
6b |
275-8505
|
STARTER, ENG, 1.8HP [FD] (Tennant Industrial) |
1 |
(between SN 003072 and SN 005885) |
|
6c |
275-8505
|
STARTER, ENG, 1.8HP [FD] (Tennant Industrial) |
1 |
(after SN 005885) |
|
7 |
275-7515
|
BRACKET WLDT, ENGINE (Tennant Industrial) |
1 |
|
|
9 |
275-7517
|
BRACKET, MOUNTING, ENG, REAR LH (Tennant Industrial) |
1 |
|
|
10 |
175-6823
|
ISOLATOR, VIB, .50D (Tennant Industrial) |
3 |
|
|
11 |
175-3470
|
Washer .53b 1.88d .12 steel plated |
6 |
|
|
12 |
175-2122
|
90 degree cable boot |
1 |
|
|
13 |
175-2108
|
P clamp |
1 |
|
|
