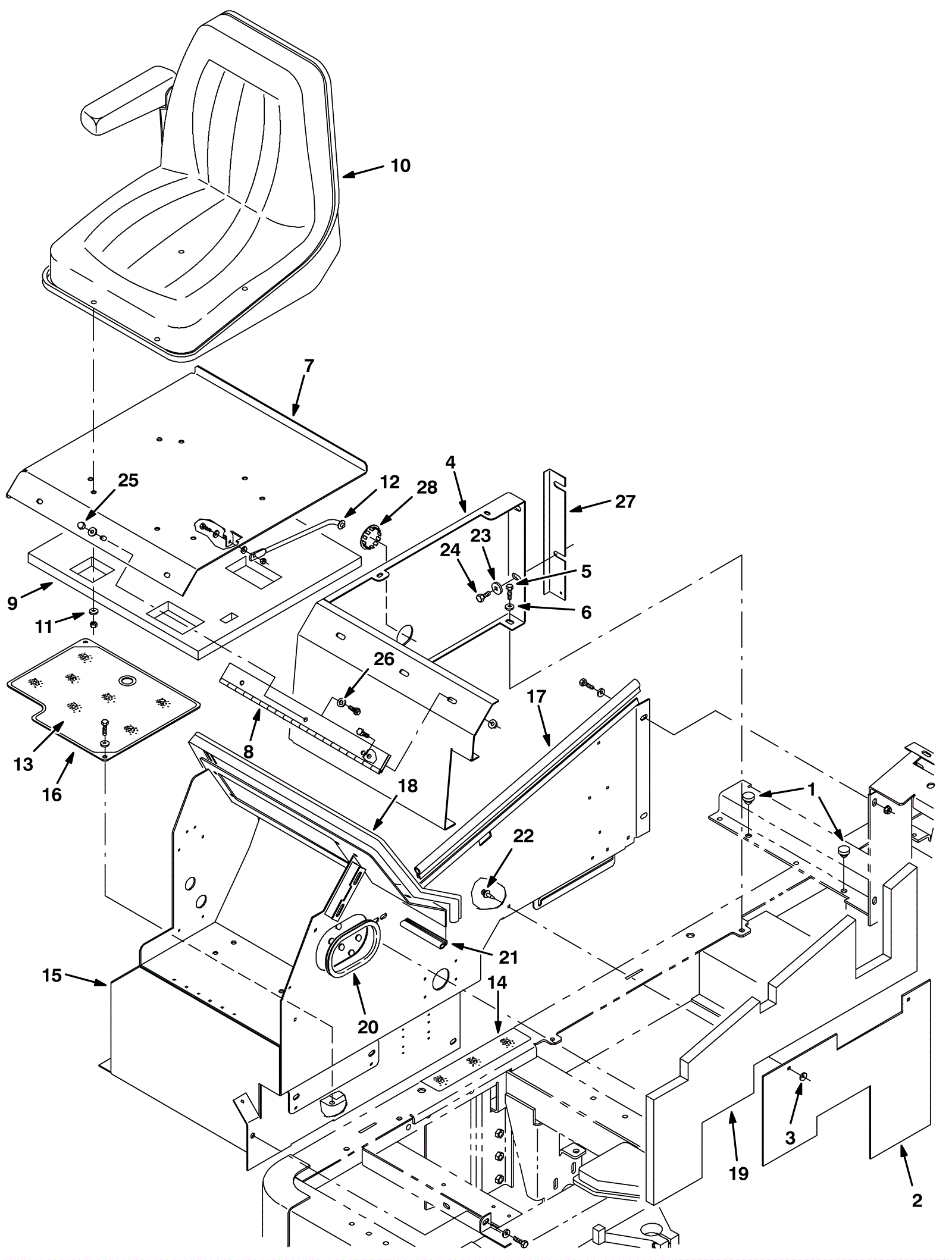

| # | Part | Description | Price | Req | Notes | Availability |
|---|
1 |
175-5941
|
BUMPER, RBR, 1.0D 0.69TH 0.50 TIP (Tennant Industrial) |
$5.68
|
2 |
|
usually ships 1-5 days |
2 |
275-7416
|
SKIRT, CENTER (Tennant Industrial) |
$95.69
|
1 |
|
usually ships 1-5 days |
3 |
999-1288
|
Washer 1/4 x 1 OD fender stainless steel |
$0.99
|
2 |
|
ships same day |
4 |
275-7417
|
PANEL, SEAT, RH (Tennant Industrial) |
$297.93
|
1 |
|
usually ships 1-5 days |
5 |
999-0501
|
Bolt M8-1.25 x 25mm hex head full thread stainless steel |
$2.64
|
3 |
|
ships same day |
6 |
999-0355
|
Washer 3/8 x 7/8 SAE flat stainless steel |
$0.99
|
3 |
|
ships same day |
7 |
275-7418
|
PANEL, SEAT, TOP (Tennant Industrial) |
$183.03
|
1 |
|
usually ships 1-5 days |
8 |
275-0256
|
HINGE, .25PIN .07 3.5W 20.0L, 6/0.38H (Tennant Industrial) |
$131.76
|
1 |
|
usually ships 1-5 days |
9 |
275-7419
|
INSULATION, ACOUSTIC, SEAT (Tennant Industrial) |
$124.58
|
1 |
|
usually ships 1-5 days |
10a |
275-7420
|
SEAT, MICHIGAN (Tennant Industrial) |
$1,925.68
|
1 |
(includes 10b-10c) |
usually ships 1-5 days |
10b |
275-7421
|
KIT, REPLACEMENT, ARMREST (Tennant Industrial) |
$375.75
|
1 |
|
usually ships 1-5 days |
10c |
275-7421
|
KIT, REPLACEMENT, ARMREST (Tennant Industrial) |
$375.75
|
1 |
|
usually ships 1-5 days |
11 |
999-1407
|
Washer 5/16 belleville |
$3.04
|
4 |
|
ships same day |
12 |
175-9358
|
Seat rod |
$57.50
|
1 |
|
usually ships 5-16 days |
13 |
275-7422
|
TREAD, FLOOR, 14.2 11.7 (Tennant Industrial) |
$72.98
|
1 |
|
usually ships 1-5 days |
14 |
275-0239
|
Non-skid tread 3w 11.6l |
$6.80
|
1 |
|
usually ships 1-5 days |
15a |
N/A
|
Not available |
Call for price
|
1 |
(before SN 007549) (instrument panel assembly) |
usually ships 3-26 days |
15b |
275-7424
|
PANEL, INSTMT, W/LABEL (Tennant Industrial) (OBSOLETE) |
Call for price
|
1 |
(after SN 007548) (diesel) |
usually ships 1-5 days |
16 |
275-7425
|
Battery access cover (Tennant Industrial) |
$65.46
|
1 |
|
usually ships 1-5 days |
17 |
275-7426
|
SEAL, BULB (Tennant Industrial) |
$96.86
|
1 |
|
usually ships 1-5 days |
18 |
275-7427
|
SEAL, BULB (Tennant Industrial) |
$160.65
|
1 |
|
usually ships 1-5 days |
19 |
275-7428
|
INSULATION, S/FOAM (Tennant Industrial) |
$137.11
|
1 |
|
usually ships 1-5 days |
20 |
275-8075
|
Trim |
$39.30
|
1 |
|
ships same day |
21 |
275-7429
|
SEAL, BULB (Tennant Industrial) |
$59.45
|
1 |
|
usually ships 1-5 days |
22 |
175-5971
|
Plastic rivet |
$2.80
|
2 |
|
ships same day |
23 |
175-2367
|
Steel plated washer |
$2.70
|
2 |
|
usually ships 1-5 days |
24 |
999-0499
|
Bolt M8-1.25 x 20mm hex head full thread stainless steel |
$1.85
|
2 |
|
ships same day |
25 |
275-0266
|
Nut .31-18 low crown (Tennant Industrial) |
$4.84
|
3 |
|
usually ships 1-5 days |
26 |
999-0406
|
Washer 5/16 internal star lock zinc plated |
$0.99
|
3 |
|
ships same day |
27 |
275-7430
|
ANGLE, TRIM (Tennant Industrial) |
$14.03
|
1 |
|
usually ships 1-5 days |
28 |
175-9429
|
Plug button |
$11.20
|
1 |
(after SN 007548) (diesel) |
usually ships 1-5 days |
