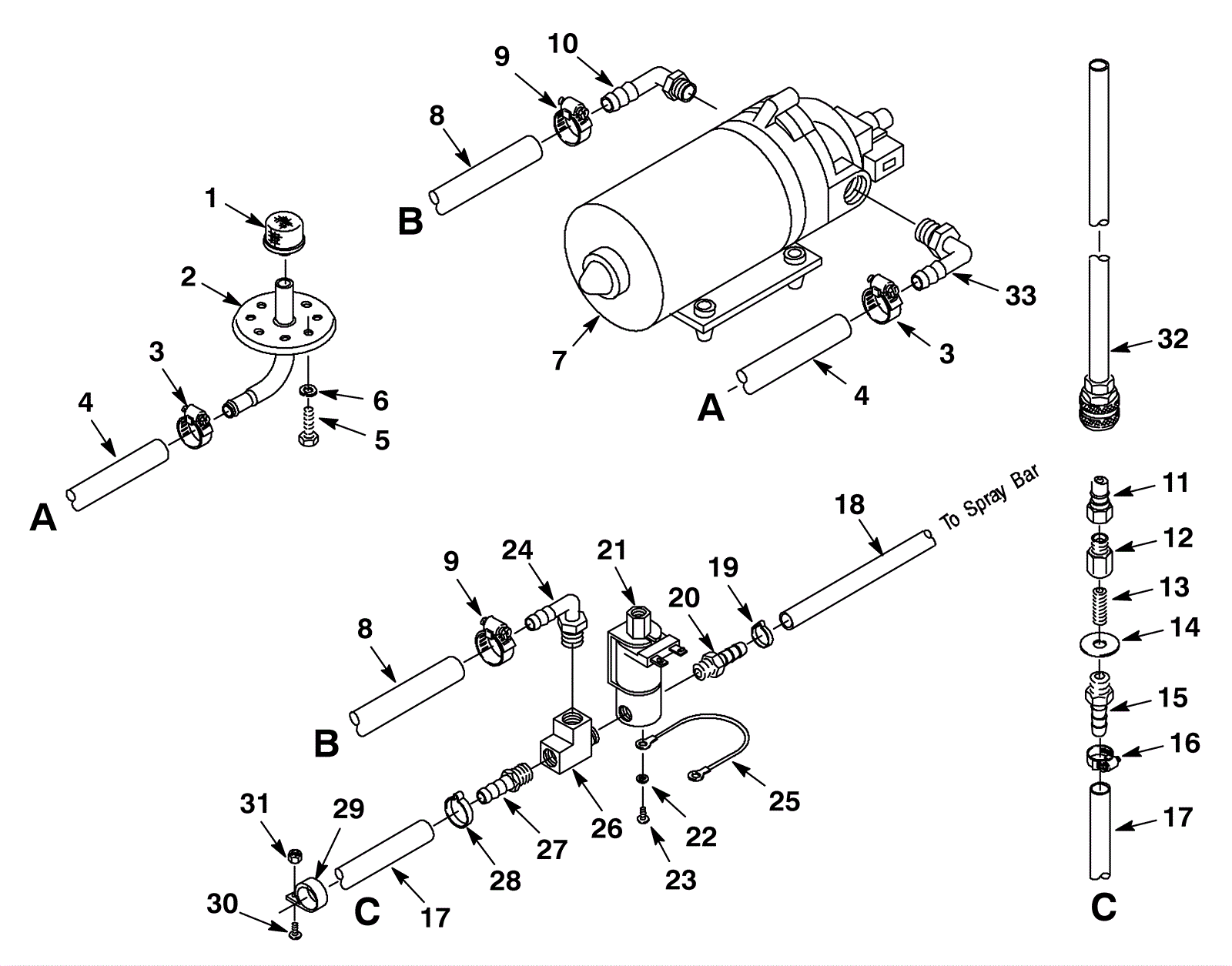

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
175-6079
|
Mesh filter screen |
1 |
|
|
2 |
175-6021
|
Bladder plate fitting |
1 |
|
|
3 |
175-6081
|
Hose clamp |
2 |
|
|
4 |
175-3575
|
Gray hose 3/8 x 2-3/4 inches |
1 |
|
|
5 |
999-0633
|
Bolt 1/4-20 x 5/8 hex head stainless steel |
4 |
|
|
6 |
999-0632
|
Washer 1/4 split lock stainless steel |
4 |
|
|
7a |
175-6011
|
120V 100 PSI pump |
1 |
|
|
7b |
991-8225
|
Shurflo pump |
1 |
|
|
8 |
175-6035
|
26 inch rubber hose (red) |
1 |
|
|
9 |
175-0199
|
Hose clamp |
2 |
|
|
10 |
175-6016
|
Elbow |
1 |
|
|
11 |
991-8150
|
1/4 inch BH2-61 male nipple (mate to QD80) |
1 |
|
|
12 |
175-6014
|
Adapter |
1 |
|
|
13 |
175-6015
|
Nipple |
1 |
|
|
14 |
999-0187
|
Washer 1/2 flat plain finish |
1 |
|
|
15 |
175-6022
|
Brass fitting |
1 |
|
|
16 |
175-6081
|
Hose clamp |
1 |
|
|
17 |
175-3576
|
Hose 3/8 x 4 1/3 inches |
1 |
|
|
18 |
175-3536
|
Hose 1/4 x 1-1/4 inches |
1 |
|
|
19 |
175-6170
|
Hose clamp |
2 |
|
|
20 |
175-6024
|
Hosebarb |
1 |
|
|
21a |
175-6025
|
Solution solenoid valve |
1 |
(if solenoid valve is leaking try replacing the plunger with spring first before replacing entire solenoid valve) |
|
21b |
991-8598
|
Replacement plunger with spring for solenoid valve |
1 |
|
|
22 |
999-1083
|
Washer #8 internal star lock stainless steel |
2 |
|
|
23 |
999-1165
|
Screw 8-32 x 3/8 truss head phillips stainless steel |
2 |
|
|
24 |
175-2844
|
90 degree elbow fitting |
1 |
|
|
25 |
175-3578
|
Ground wire assembly |
1 |
|
|
26 |
175-6029
|
Straight tee |
1 |
|
|
27 |
175-6030
|
Straight hosebarb |
1 |
|
|
28 |
175-6032
|
Hose clamp |
1 |
|
|
29 |
175-0988
|
P clamp |
1 |
|
|
30 |
999-1008
|
Screw 10-32 x 3/4 round head phillips stainless steel |
1 |
|
|
31 |
999-0442
|
Nut 10-24 nylon insert lock stainless steel |
1 |
|
|
32 |
175-3579
|
Pump out hose |
1 |
|
|
33 |
175-6019
|
90 degree barbed elbow |
1 |
|
|
