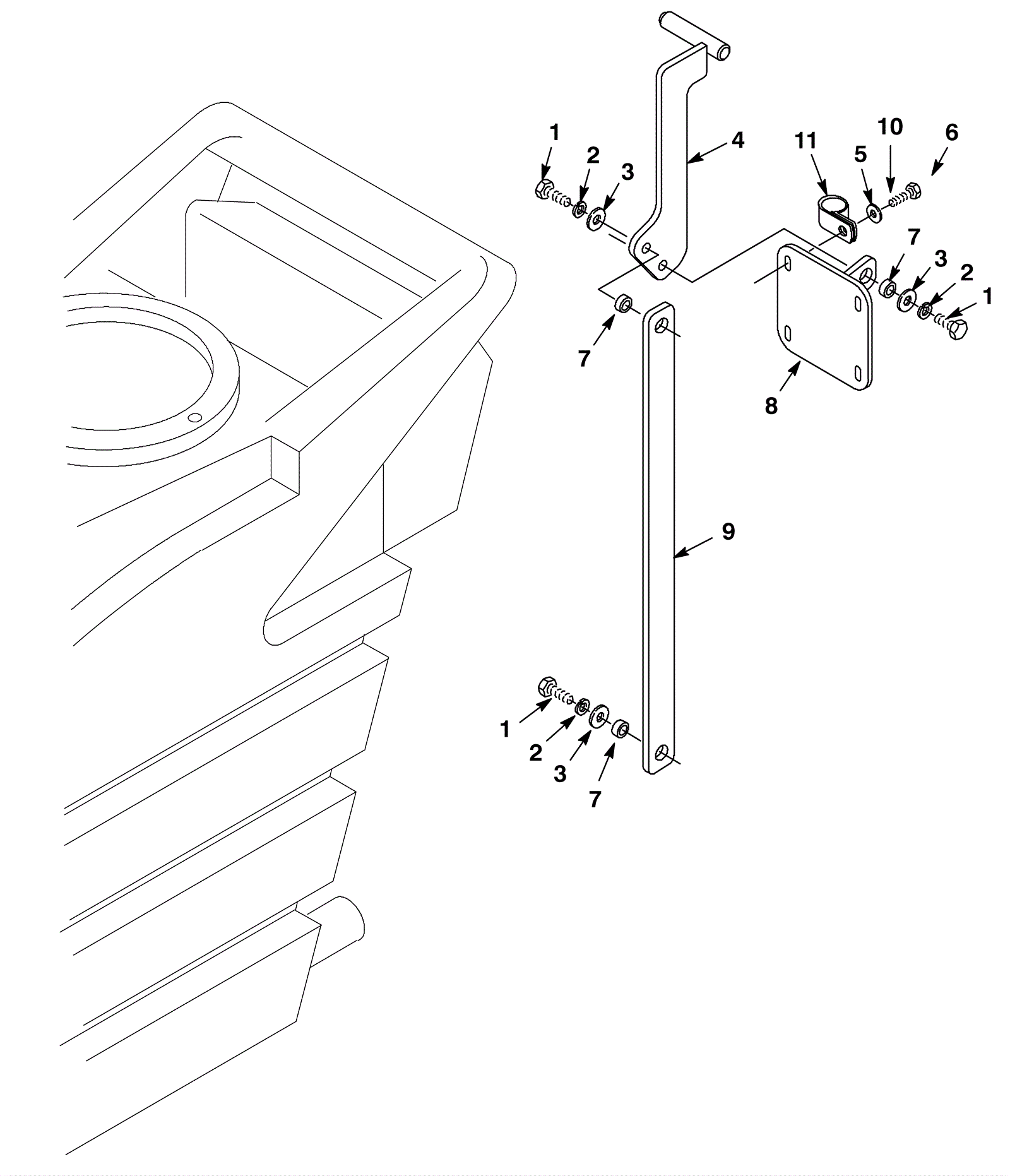

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
999-0030
|
Bolt 5/16-18 x 5/8 hex head grade 5 zinc plated |
3 |
|
|
2 |
999-0553
|
Washer 5/16 medium split lock stainless steel |
3 |
|
|
3 |
999-0024
|
Washer 5/16 flat stainless steel |
3 |
|
|
4 |
175-3541
|
Lift handle |
1 |
|
|
5 |
999-0016
|
Washer 1/4 flat plain finish |
4 |
|
|
6 |
999-0633
|
Bolt 1/4-20 x 5/8 hex head stainless steel |
4 |
|
|
7 |
175-3542
|
Pivot bushing |
3 |
|
|
8 |
175-3543
|
Mounting bracket |
1 |
|
|
9 |
175-3544
|
Lifting plate |
1 |
|
|
10 |
999-0632
|
Washer 1/4 split lock stainless steel |
4 |
|
|
11 |
175-3005
|
P clamp |
1 |
|
|
