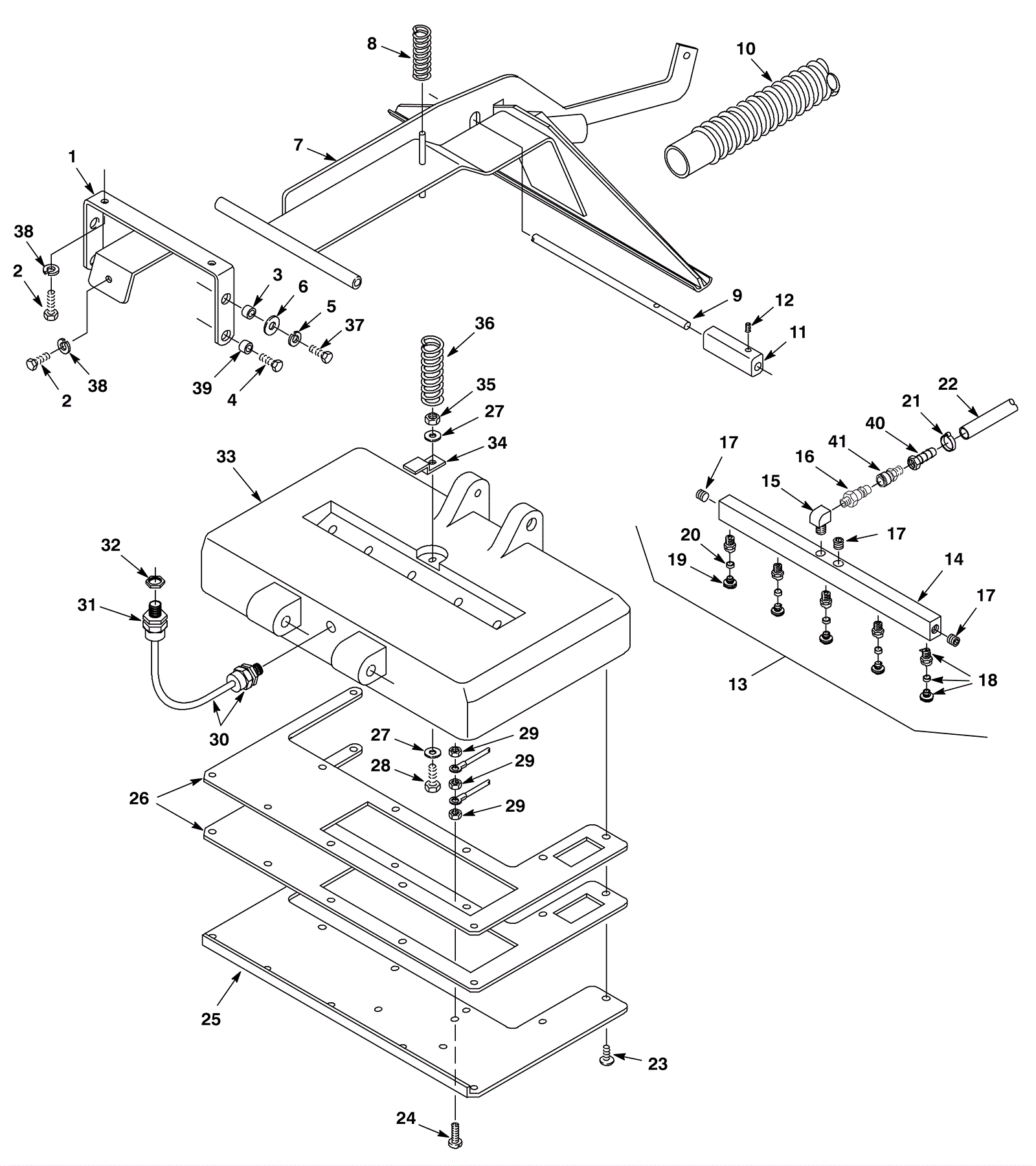

Brush Base Assembly

#PartDescription ReqNotesAvailability
1 175-3526 Mounting bracket 1
2 999-0030 Bolt 5/16-18 x 5/8 hex head grade 5 zinc plated 3
3 175-2725 Bushing 2
4 175-6187 Screw 3/8-16 x 3/4 inch truss head phillips 2
5 999-0034 Washer 3/8 split lock plain finish 2
6 999-0617 Washer 3/8 x 1 flat stainless steel 2
7 175-3527 Pickup tool with lever 1
8 175-3528 Pressure spring 1
9 175-3532 Cam adjuster lever 1
10 175-3530 Vacuum hose with cuffs 1 1/2 x 46 inch 1
11 175-3531 Cam adjuster 1
12 999-0096 Screw 1/4-20 x 1/4 cup point socket set plain finish 1
13 175-9506 Spraybar assembly 1 (includes 14-18)
14 175-6040 20 inch spray bar manifold 1
15 175-1661 90 degree elbow fitting 1
16 175-1684 Quick disconnect fitting 1
17 175-6121 Brass plug 3
18 175-6118 Spray tip assembly 5 (includes 19 and 20)
19 175-3535 Brass spray tip 5
20 175-8085 Spray nozzle seal 5
21 175-6170 Hose clamp 1
22 175-3536 Hose 1/4 x 1-1/4 inches 1
23 999-0811 Screw 10-32 x 3/8 pan head phillips stainless steel 12
24 999-1028 Screw 10-24 x 3/4 truss head phillips stainless steel 1
25 175-6145 20 inch brush base plate (black) 1
26 175-6235 20 inch base gasket 1
27 999-0617 Washer 3/8 x 1 flat stainless steel 2
28 999-1006 Screw 3/8-16 x 1 3/4 hex head stainless steel 1
29 999-0356 Nut 10-24 lock stainless steel 3
30 175-3537 18/3 cord 24 inch (black) 1
31 175-6124 Cord grip 1
32 175-6158 Nut 1/2 conduit 1
33 175-3538 20 inch base (black) 1
34 175-3539 Latch 1
35 999-0513 Nut 3/8-16 nylon insert lock type NE stainless steel 1
36 175-1611 Spring 1
37 999-0493 Bolt 3/8-16 x 3/4 hex head stainless steel 2
38 999-0553 Washer 5/16 medium split lock stainless steel 3
39 175-6154 Spacer 2
