| # | Part | Description |
Req | Notes | Availability |
|---|
0 |

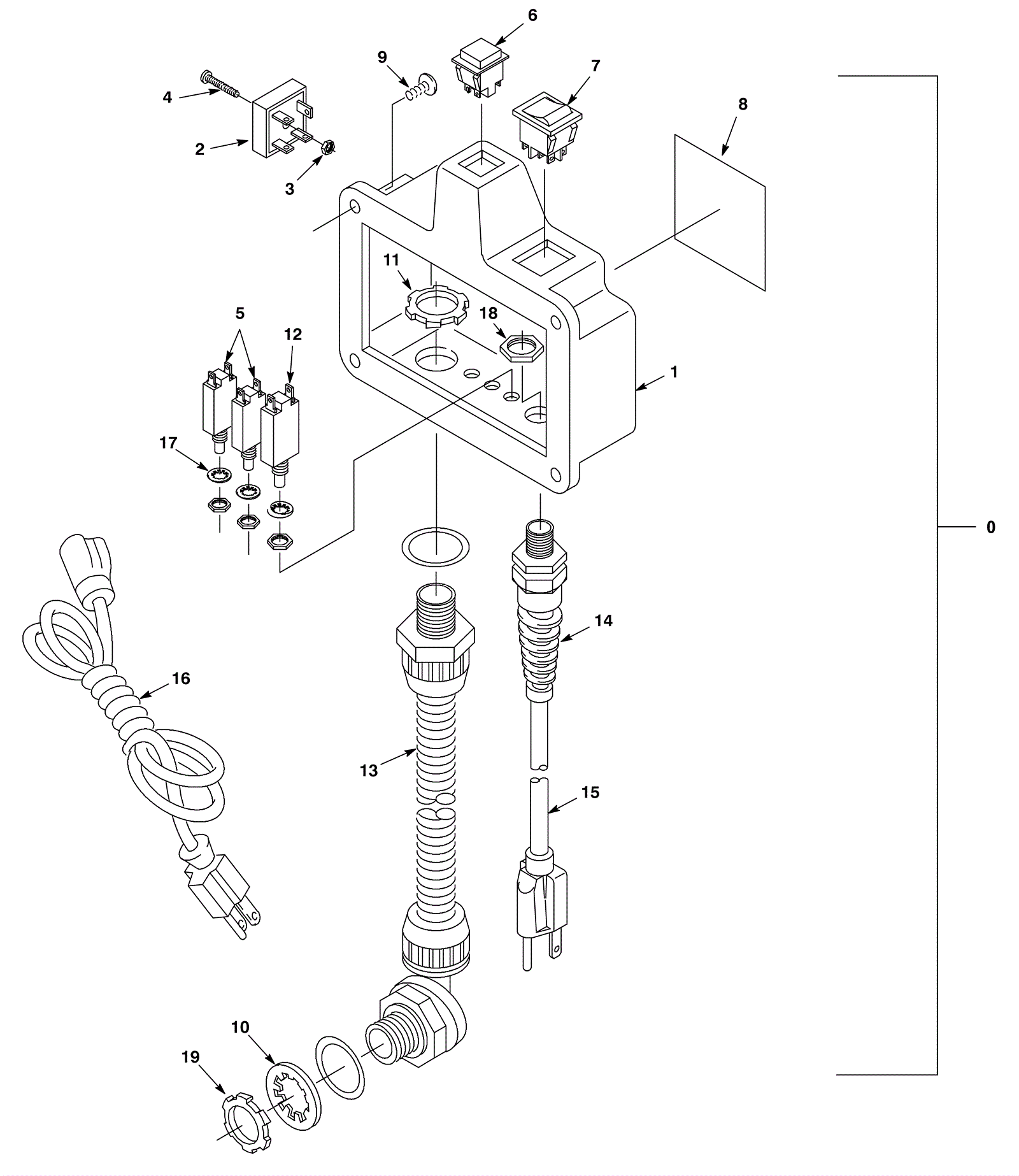

175-9505
|
Switchbox assembly |
1 |
(includes 1-8, 11-15, 17 and 18) |
|
1 |
275-6089
|
Switchbox |
1 |
|
|
2 |
175-6052
|
15amp rectifier |
1 |
|
|
3 |
999-0442
|
Nut 10-24 nylon insert lock stainless steel |
1 |
|
|
5 |
175-6060
|
1.5amp circuit breaker |
2 |
|
|
6 |
175-3549
|
Alternating switch |
1 |
|
|
7 |
175-0005
|
Rocker switch |
1 |
|
|
8 |
275-9008
|
Warning decal |
1 |
|
|
9 |
999-1080
|
Screw 1/4-20 x 5/8 truss head phillips stainless steel |
4 |
|
|
10 |
175-3550
|
Washer 13/16 internal star lock zinc (OBSOLETE) |
1 |
|
|
11 |
175-6158
|
Nut 1/2 conduit |
1 |
|
|
12 |
175-6061
|
12amp circuit breaker |
1 |
|
|
13 |
175-3554
|
Wiring harness |
1 |
|
|
14 |
175-0001
|
Strain relief |
1 |
|
|
15 |
175-6064
|
14/3 pigtail cord 18 inch |
1 |
|
|
16a |
175-6091
|
16/3 extension cord 50 foot (yellow) |
1 |
|
|
16b |
991-5002
|
16/3 extension cord 50 foot (orange) |
1 |
(NON-OEM) |
|
16c |
991-5007
|
18/3 replacement power cord 50 foot (black) |
1 |
(NON-OEM) |
|
17 |
175-4494
|
Washer M10 |
3 |
|
|
18 |
175-7223
|
Hex nut |
1 |
|
|
19 |
175-6158
|
Nut 1/2 conduit |
1 |
|
|
