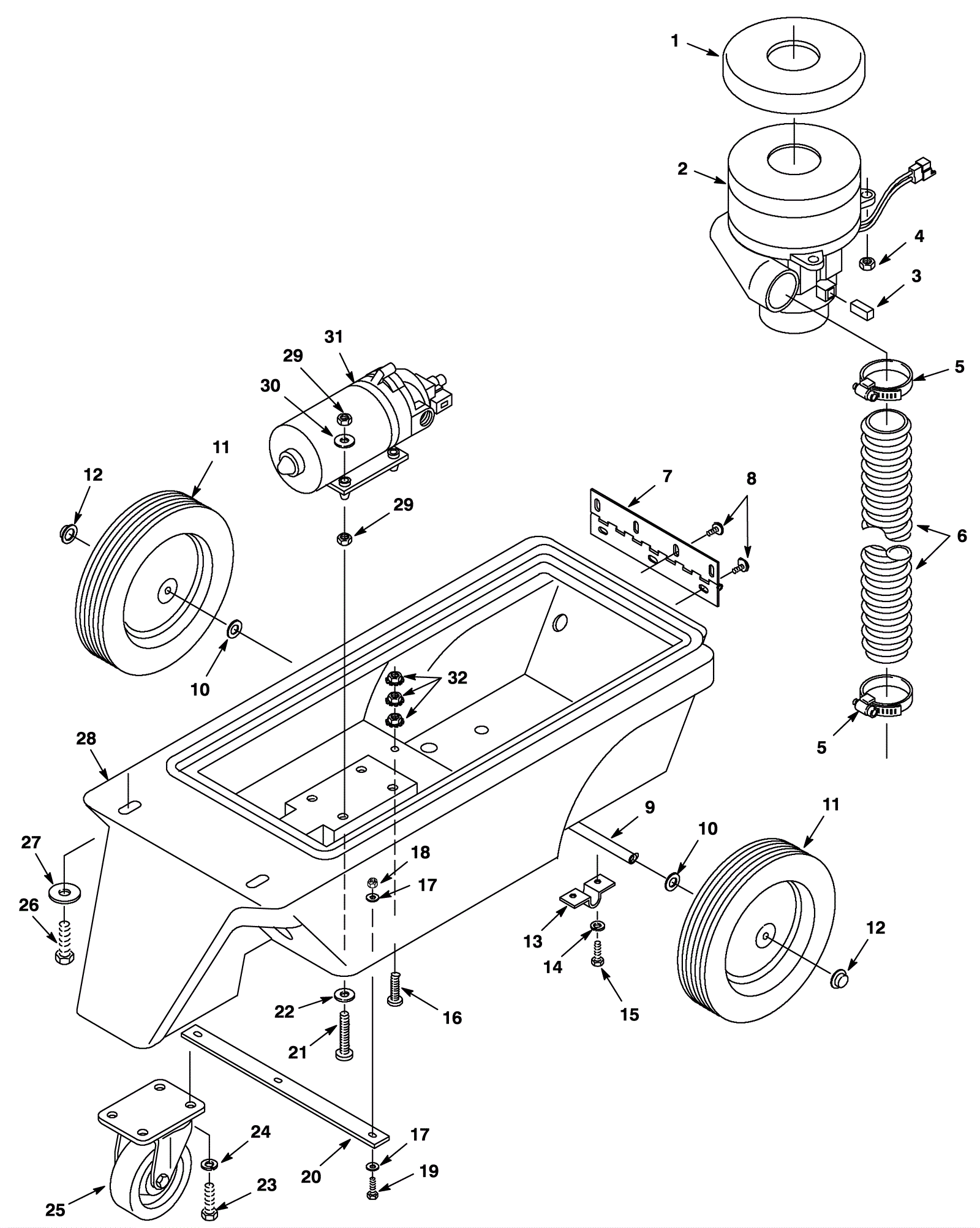

Chassis Assembly

#PartDescription ReqNotesAvailability
1 175-6084 Vacuum motor gasket 1
2a 175-0198 120V 3 stage vacuum motor 1 (includes item 3)
2b 991-1213 120V 3 stage vacuum motor tangential 1 (NON-OEM)
3a 175-6086 Carbon brush (pkg of 2) 2
3b 175-6086 Carbon brush (pkg of 2) 1
4 999-0152 Nut 1/4-20 nylon insert lock zinc plated 4
5 175-2057 Hose clamp 2
6 175-6090 Exhaust hose 2 x 26 inch (black) 1
7 175-6077 Tank hinge 1
8 999-0557 Screw 1/4-20 x 1/2 truss head slotted stainless steel 7
9 175-6095 Axle 1
10 999-0187 Washer 1/2 flat plain finish 2
11 175-6096 Wheel 2
12 175-6097 Hub cap 2
13 175-6098 Axle bracket 2
14 999-0632 Washer 1/4 split lock stainless steel 4
15 999-0633 Bolt 1/4-20 x 5/8 hex head stainless steel 4
16 999-0009 Screw 10-24 x 1 round head slotted zinc plated 1
17 999-0016 Washer 1/4 flat plain finish 6
18 999-0152 Nut 1/4-20 nylon insert lock zinc plated 3
19 999-0076 Bolt 1/2-20 x 1 hex head grade 5 plain finish 3
20 175-3545 Support bracket 1
21 999-0002 Screw 10-24 x 1 1/2 pan head phillips zinc plated 4
22 999-0393 Washer 3/16 flat aluminum 4
23 999-0030 Bolt 5/16-18 x 5/8 hex head grade 5 zinc plated 4
24 999-0553 Washer 5/16 medium split lock stainless steel 4
25 175-0888 4 inch swivel caster wheel 1
26 175-5709 Screw 3/8-16 x 2 1/2 hex head stainless steel 2
27 999-0617 Washer 3/8 x 1 flat stainless steel 2
28 175-9504 Chassis (OBSOLETE) 1
29 999-0356 Nut 10-24 lock stainless steel 8
30 999-0006 Washer 3/16 flat zinc plated 4
31a 175-6011 120V 100 PSI pump 1
31b 991-8225 Shurflo pump 1
32 999-0356 Nut 10-24 lock stainless steel 3
