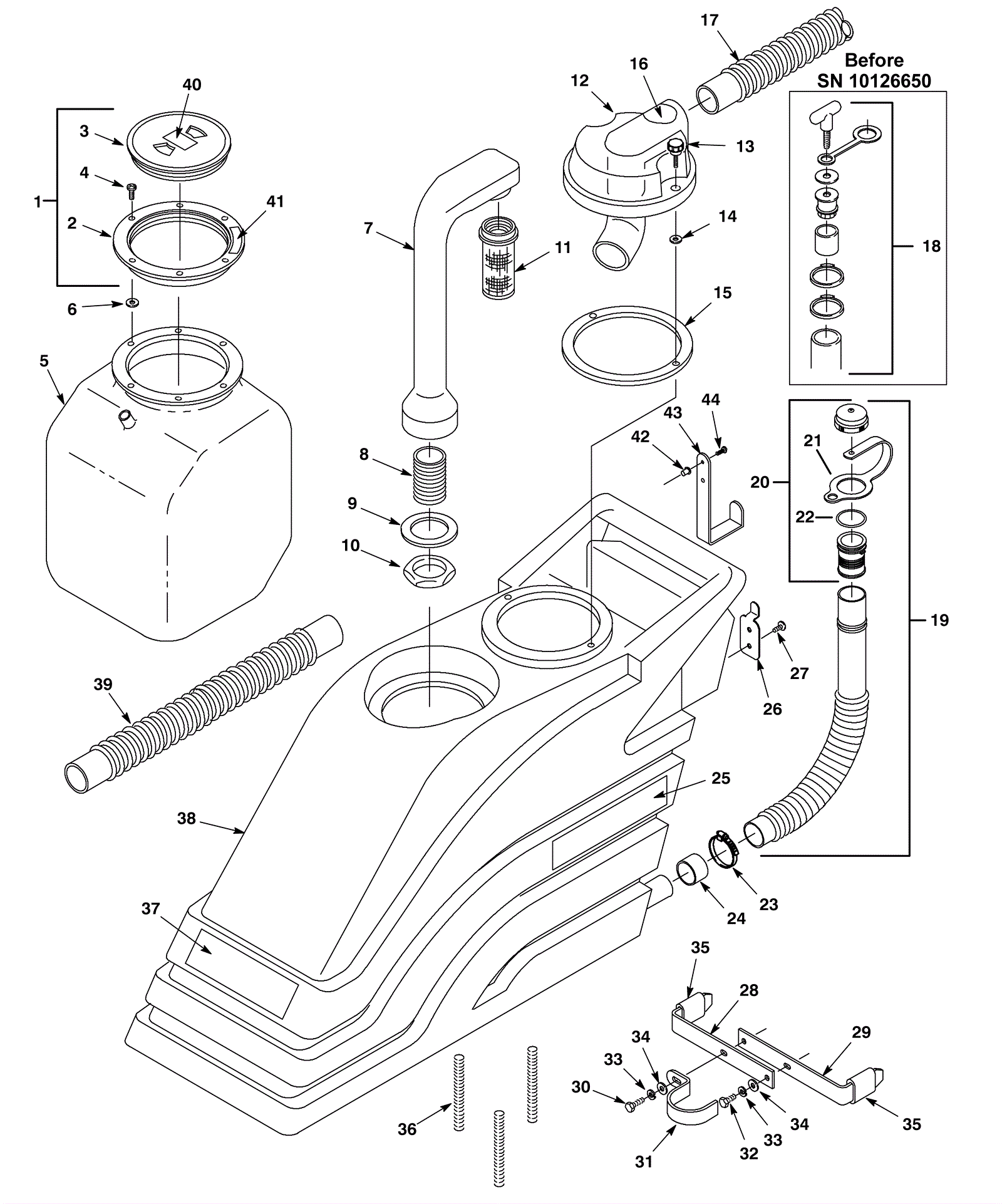

Recovery Tank Assembly

#PartDescription ReqNotesAvailability
1 175-6045 Tank lid assembly 1 (includes 2 and 3)
2 175-3580 Outer tank lid ring 1
3a 164-0044 Tank lid (clear) 1
3b 991-1928 Tank lid (clear) (OBSOLETE) 1 (NON-OEM)
4 999-1028 Screw 10-24 x 3/4 truss head phillips stainless steel 6
5 175-6083 10 gallon bladder bag 1
6 999-0016 Washer 1/4 flat plain finish 6
7 175-6047 Standpipe 1 (includes 8)
8 175-2639 1 1/2 inch nipple fitting 1
9 175-6263 O-ring 1
10 175-2907 Nut 1 1/2 flanged hex 1
11a 675-9887 Shut-off float 1
11b 991-5136 Shut-off float 1 (NON-OEM)
12 175-6048 Tank lid assembly 1 (includes 13-16)
13 175-6050 Knob 2
14 175-6161 Nylon washer 2
15 175-6049 Tank lid gasket 1
16 175-6109 Do not allow foam decal 1
17 175-3530 Vacuum hose with cuffs 1 1/2 x 46 inch 1
18 N/A Not available 1 (Drain assembly. Replaced by 19)
19a 175-1535 Drain hose assembly 1 (includes 20)
19b 991-1907 22 inch molded hose with drain cap 1 (NON-OEM)
20a 175-4214 Drain plug assembly 1 (includes 21 and 22)
20b 991-3028 Drain plug assembly 1
21 175-4214 Drain plug assembly 1
22 175-5804 O-ring 1
23 997-2007 Hose clamp 1
24 175-9500 Hose adapter sleeve 1
25 175-9501 Frontier decal (OBSOLETE) 2
26 175-5549 Drain hose hanger bracket 1
27 999-0447 Screw 6-32 x 1/2 pan head phillips zinc plated 2
28 175-6100 Tank brace bracket with holes 1
29 175-6099 Tank brace bracket with threads 1
30 999-0633 Bolt 1/4-20 x 5/8 hex head stainless steel 1
31 175-6103 Tank brace clamp 2
32 999-0644 Bolt 1/4-20 x 1/2 hex head stainless steel 1
33 999-0632 Washer 1/4 split lock stainless steel 2
34 999-0016 Washer 1/4 flat plain finish 2
35 175-6102 Grip 1
36 175-6078 Stud 1/4-20 x 5 inch full threaded 3
37 275-5867 Front decal 1
38 175-9502 Recovery tank 1
39 175-9503 Vacuum hose 1 1/2 x 36 inch (OBSOLETE) 1
40 175-6107 Always drain decal 1
41 175-6101 Always close decal 1
42 175-3584 Nut 10-32 well 2
43 175-3585 Cord hook (black) 1
44 999-0811 Screw 10-32 x 3/8 pan head phillips stainless steel 2
