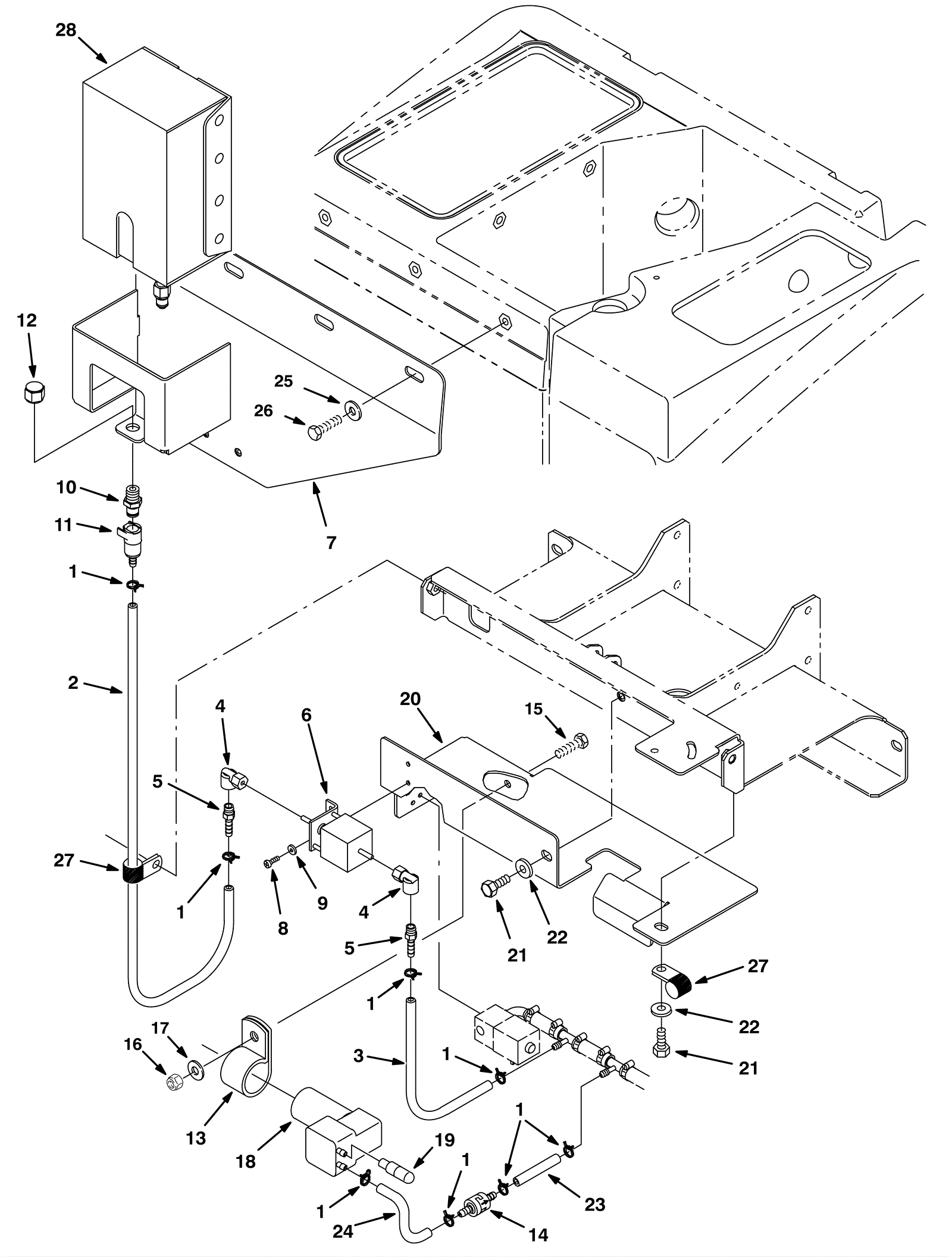

EZ RIDER HP Air Pump and Detergent Assembly - FaST - From SN 10179742-10404791

#PartDescriptionPriceReqNotesAvailability
1 175-5304 Hose clamp $4.49 8 usually ships 13-17 days
2 175-5305 Hose 1/4 x 3 foot $56.32 3 ft ships same day
3 275-5772 PVC hose 2 inch $19.47 1 ft usually ships 1-5 days
4 175-5307 Brass fitting $14.19 2 usually ships 1-5 days
5 175-1659 Fitting $5.28 2 usually ships 13-17 days
6 175-5308 Detergent pump $1,150.93 1 usually ships 13-17 days
7 175-5309 Box detergent bracket weldment $109.35 1 ships same day
8 175-5310 Screw 4 x 45/64 x 16 pan head $4.36 2 usually ships 1-5 days
9 999-0377 Washer 6 SAE flat plain finish $0.99 2 ships same day
10 275-4743 Straight plastic fitting $8.14 1 usually ships 13-17 days
11 275-4744 Female coupling $54.01 1 usually ships 13-17 days
12 175-5313 Plastic cap fitting $5.28 1 usually ships 13-17 days
13 175-5314 P clamp (Tennant Industrial) $6.67 1 usually ships 13-17 days
14 175-5315 Check valve $89.76 1 ships same day
15 999-0501 Bolt M8-1.25 x 25mm hex head full thread stainless steel $2.64 1 ships same day
16 999-0496 Nut M8-1.25 nylon insert lock stainless steel $1.34 1 ships same day
17 999-9097 Washer M8 flat stainless steel $0.99 1 ships same day
18a 175-5316 Elevated air pump 36vdc $1,011.67 1 (includes 18b) usually ships 1-5 days
18b 175-5317 Air compressor diaphragm repair kit $319.55 1 usually ships 1-5 days
19 175-5318 Filter assembly $30.58 1 usually ships 13-17 days
20 175-5319 Bracket $76.78 1 usually ships 1-5 days
21 999-0499 Bolt M8-1.25 x 20mm hex head full thread stainless steel $1.85 3 ships same day
22 999-9097 Washer M8 flat stainless steel $0.99 3 ships same day
23 275-5772 PVC hose 2 inch $19.47 1 ft usually ships 1-5 days
24 275-5772 PVC hose 2 inch $19.47 1 ft usually ships 1-5 days
25 999-9097 Washer M8 flat stainless steel $0.99 3 ships same day
26 999-0784 Screw M8-1.25 x 16mm hex head stainless steel $1.74 3 ships same day
27 175-0559 P clamp $3.30 2 usually ships 13-17 days
28a N/A Not available Call for price 1 (detergent) usually ships 3-26 days
28b N/A Not available Call for price 1 (detergent) usually ships 3-26 days
