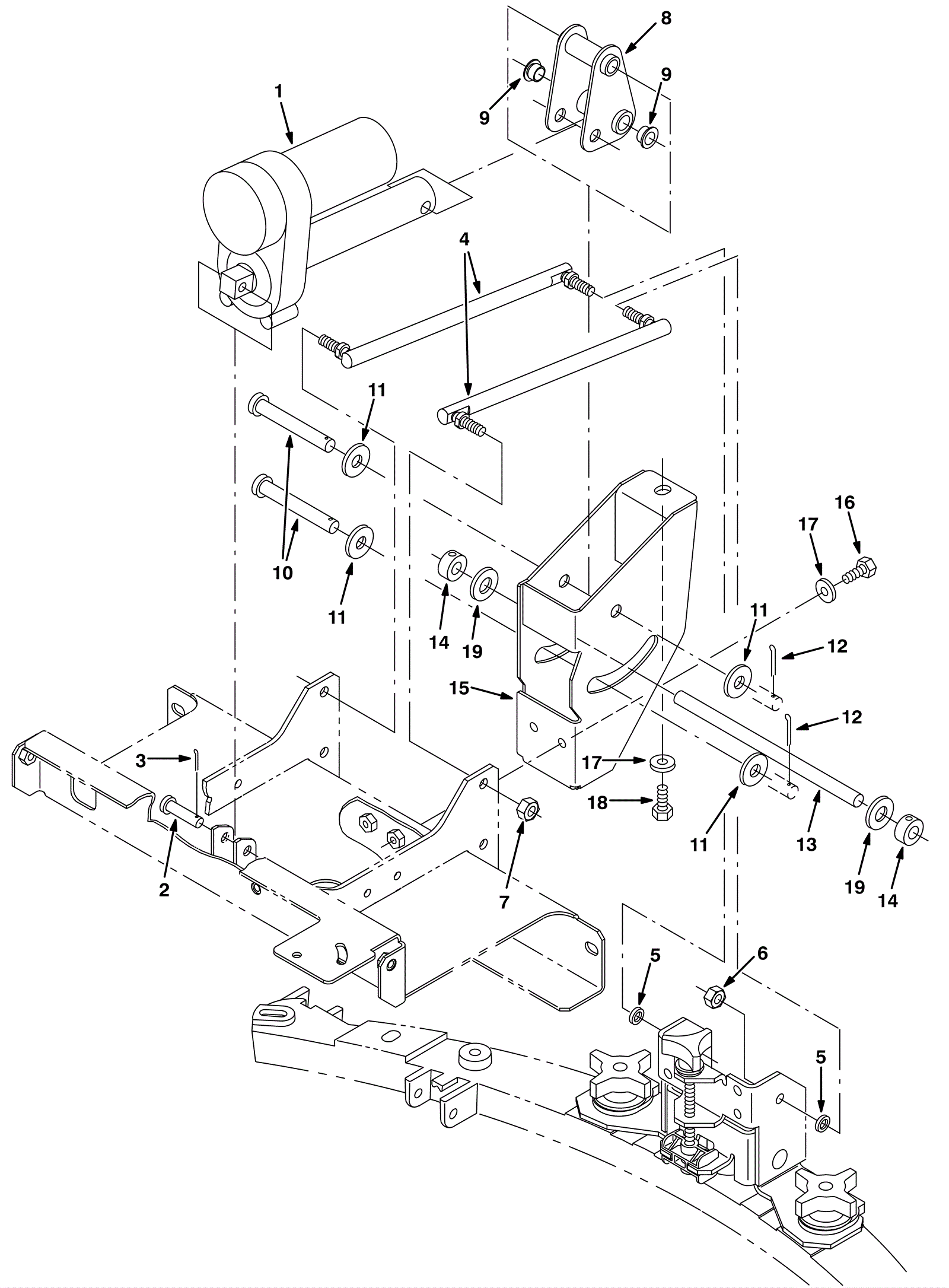

EZ RIDER HP Rear Squeegee Lift Assembly

#PartDescriptionPriceReqNotesAvailability
1 175-5219 Actuator 36V (OBSOLETE) $659.89 1 usually ships 1-5 days
2 175-2111 Clevis pin $4.75 1 usually ships 10-16 days
3 175-6176 Cotter pin $3.04 1 ships same day
4 175-5220 Balljoint link 3/8-24 $48.29 2 usually ships 10-16 days
5 175-3454 Spacer stainless steel $5.50 2 usually ships 10-16 days
6 175-3455 Nut 3/8-24 hex lock $4.49 2 usually ships 10-16 days
7 175-3322 Nut 3/8-24 hex lock $5.50 2 usually ships 10-16 days
8 175-3450 Actuator pivot weldment $116.49 1 usually ships 1-5 days
9 175-3335 Flanged bushing $15.73 2 usually ships 1-5 days
10 175-3280 Clevis pin $6.05 2 usually ships 10-16 days
11 999-0114 Washer 1/2 SAE flat $0.99 4 ships same day
12 175-2106 Cotter hair pin $3.42 2 ships same day
13 175-3451 Squeegee lift rod $21.23 1 usually ships 1-5 days
14 175-3452 Locking collar $11.55 2 usually ships 1-5 days
15 175-5221 Squeegee linkage guide weldment $137.94 1 usually ships 1-5 days
16 999-0499 Bolt M8-1.25 x 20mm hex head full thread stainless steel $1.85 2 ships same day
17 999-9097 Washer M8 flat stainless steel $0.99 3 ships same day
18 999-0499 Bolt M8-1.25 x 20mm hex head full thread stainless steel $1.85 1 ships same day
19 999-0566 Washer 1/2 flat nylon $0.99 2 ships same day
