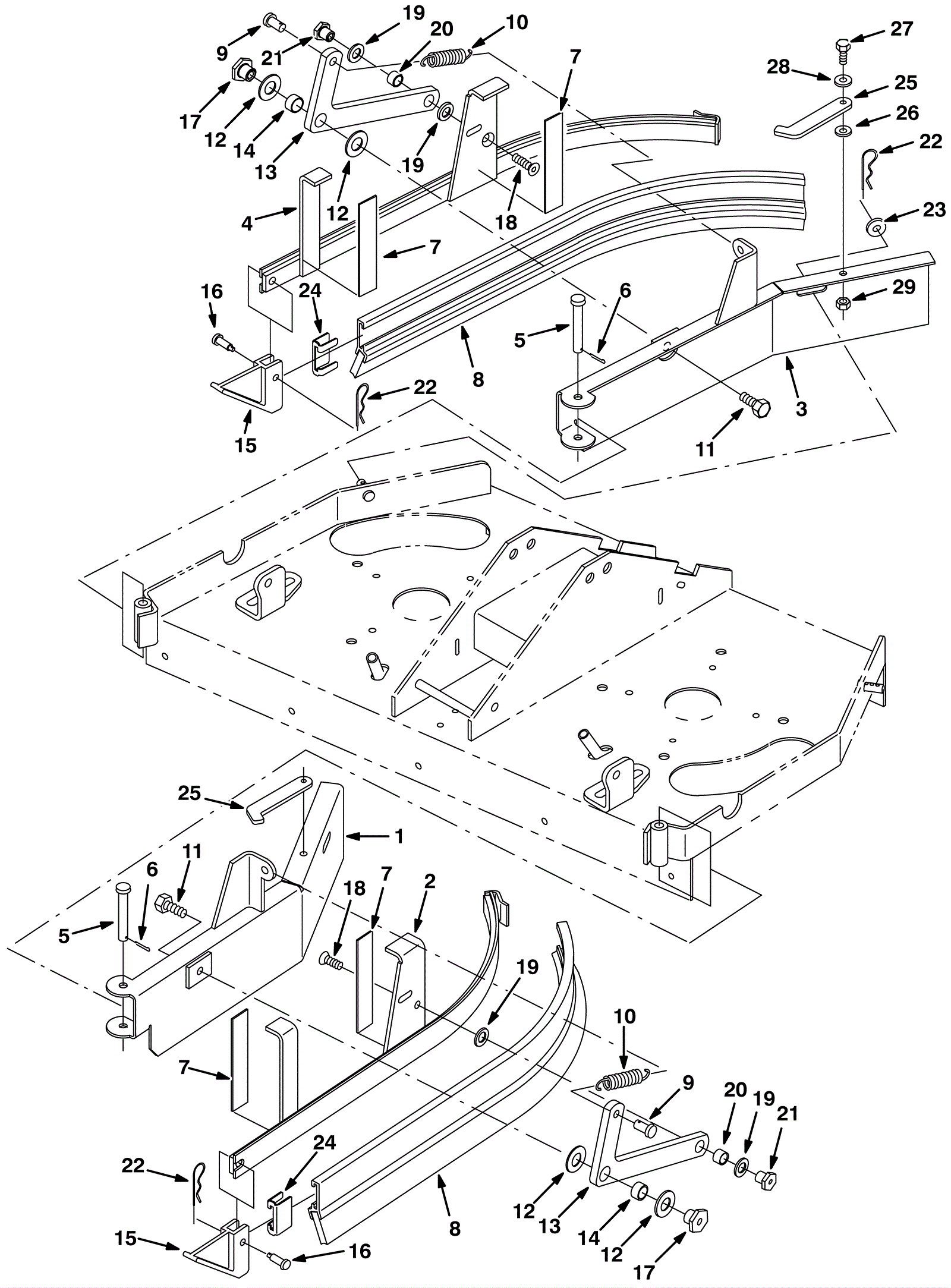

EZ RIDER HP Scrub Head Squeegee Assembly - After SN 10214060

#PartDescriptionPriceReqNotesAvailability
1a 175-3337 Door weldment 28 inch left side $179.11 1 (28 inch) usually ships 1-5 days
1b 275-2746 Left door weldment $273.24 1 (32 inch) usually ships 1-5 days
2 175-3338 Skirt holder weldment left side $157.74 1 usually ships 5-16 days
3a 175-3339 Door weldment 28 inch right side $105.49 1 (28 inch) usually ships 5-16 days
3b 275-2747 Right door weldment $202.51 1 (32 inch) usually ships 1-5 days
4 175-3340 Skirt holder weldment right side $157.74 1 usually ships 5-16 days
5 175-3341 Clevis pin $3.96 2 ships same day
6 175-3281 Cotter pin $2.42 2 usually ships 5-16 days
7 175-3342 Protective tape $14.52 4 usually ships 5-16 days
8a 175-3343 Side squeegee blade linatex $64.46 2 ships same day
8b 275-9740 Side squeegee blade gum rubber $51.26 2 ships same day
8c 991-9212 SQUEEGEE ASSY, SIDE, DISC, GUM $44.06 2 (NON-OEM) usually ships 5-16 days
9 175-3344 Clevis pin $7.48 2 usually ships 5-16 days
8c 994-0106 Side squeegee blade gum rubber $30.96 1 ships same day
10 175-3345 Extension spring $9.13 2 ships same day
11 999-1170 Bolt M10-1.5 x 20mm hex head stainless steel $3.06 2 ships same day
12 175-3347 Washer .61 thrust $4.84 4 ships same day
13 175-3348 Bell crank $55.77 2 usually ships 5-16 days
14 175-3349 Sleeved bushing $12.32 2 ships same day
15 475-3313 GUIDE, SQGE, SIDE, YELLOW $17.38 2 usually ships 5-16 days
16 175-3351 Clevis pin $3.30 2 ships same day
17 175-3352 T-nut M10-1.5mm $7.92 2 ships same day
18 999-1324 Screw M8-1.25 x 20mm flat head stainless steel $0.99 2 ships same day
19 175-3354 Thrust washer $9.68 4 usually ships 5-16 days
20 175-3355 Sleeved bushing $6.60 2 usually ships 5-16 days
21 999-0579 Nut M8-1.25 hex coarse thread zinc $0.99 2 ships same day
22 175-2117 Cotter pin $3.96 4 ships same day
23 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel $0.99 2 ships same day
24 175-3357 Squeegee blade retainer $11.00 2 ships same day
25 175-3358 Squeegee side lock lever $17.49 2 usually ships 1-5 days
26 175-3187 Washer nylon $3.30 2 usually ships 5-16 days
27 999-1312 Screw M6-1 x 20mm hex head stainless steel $0.99 2 ships same day
28 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 2 ships same day
29 999-0497 Nut M6-1 nylon insert lock stainless steel $1.03 2 ships same day
