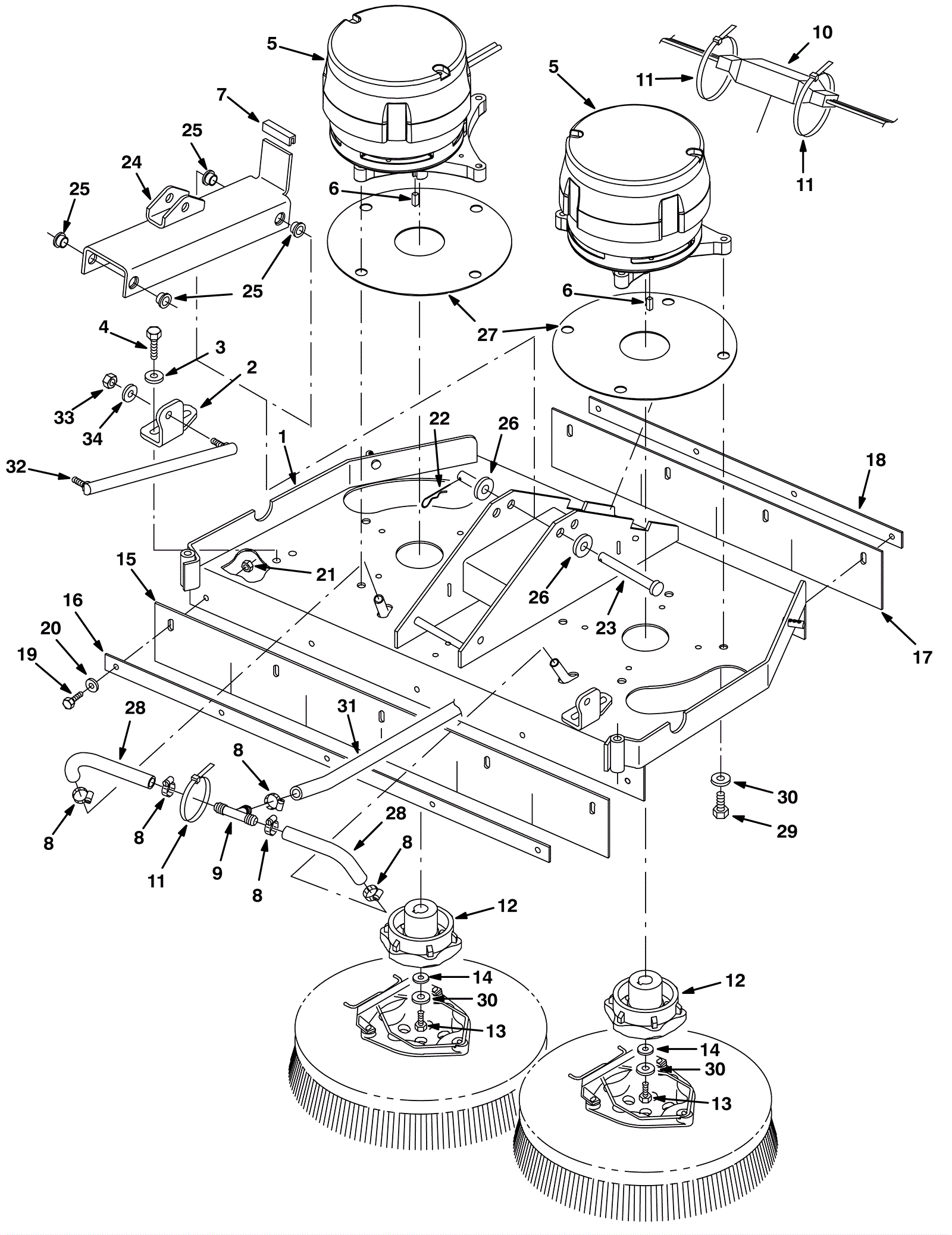

| # | Part | Description |
Req | Notes | Availability |
|---|
1a |
275-5340
|
28 inch head kit (OBSOLETE) |
1 |
(includes 2-4) (after SN 10188432) (28 inch) |
|
1b |
275-5351
|
32 inch head kit |
1 |
(after SN 10188432) (32 inch)(heavy duty) |
|
2 |
175-4988
|
Linkage bracket |
2 |
|
|
3 |
999-0355
|
Washer 3/8 x 7/8 SAE flat stainless steel |
4 |
|
|
4 |
175-4989
|
Screw 10 x 1 1/2 x 20 stainless steel |
4 |
|
|
5a |
175-3325
|
Brush motor kit |
2 |
(includes 5b-6) (after SN 10541284) |
|
5b |
275-5341
|
Carbon brush (pkg of 4) |
1 |
(after SN 10541284) |
|
5c |
275-5342
|
Motor harness adapter |
1 |
(after SN 10541284) |
|
6 |
175-2236
|
Square keyway |
1 |
|
|
7 |
175-3336
|
Rubber trim molding |
1 |
|
|
8 |
175-6081
|
Hose clamp |
5 |
|
|
9 |
175-3329
|
Plastic tee fitting |
1 |
|
|
10a |
275-2443
|
Wiring harness (OBSOLETE) |
1 |
(standard) |
|
10b |
175-2440
|
Disk head wiring harness |
1 |
(heavy duty) |
|
11 |
175-2226
|
Nylon wire tie |
3 |
|
|
12 |
175-9525
|
Brush drive hub |
2 |
|
|
13 |
999-0556
|
Bolt 5/16-18 x 3/4 hex head stainless steel |
2 |
|
|
14 |
999-1407
|
Washer 5/16 belleville |
2 |
|
|
15a |
175-3330
|
Front skirt 28 inch |
1 |
(28 inch) |
|
15b |
175-5345
|
Front skirt |
1 |
(32 inch) |
|
16a |
175-3331
|
28 inch (700mm) front skirt retainer strap |
1 |
(28 inch) |
|
16b |
175-5346
|
Front skirt retainer strap |
1 |
(32 inch) |
|
17a |
175-3332
|
Rear skirt 28 inch |
1 |
(28 inch) |
|
17b |
175-5347
|
Rear skirt |
1 |
(32 inch) |
|
18a |
175-3333
|
28 inch (700mm) rear skirt retainer strap |
1 |
(28 inch) |
|
18b |
175-5348
|
Rear skirt retainer strap |
1 |
(32 inch) |
|
19 |
999-1312
|
Screw M6-1 x 20mm hex head stainless steel |
9 |
|
|
20 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
9 |
|
|
21 |
999-0497
|
Nut M6-1 nylon insert lock stainless steel |
9 |
|
|
22 |
175-2106
|
Cotter hair pin |
1 |
|
|
23 |
175-2116
|
Clevis pin |
1 |
|
|
24 |
175-3334
|
Lifting weldment |
1 |
|
|
25 |
175-3335
|
Flanged bushing |
4 |
|
|
26 |
999-0114
|
Washer 1/2 SAE flat |
2 |
|
|
27 |
275-5343
|
Gasket (Tennant Industrial) |
2 |
(after SN 10541284) |
|
28 |
175-5249
|
Hose 1/2 x 1 foot (Tennant Industrial) |
2 |
|
|
29 |
999-0493
|
Bolt 3/8-16 x 3/4 hex head stainless steel |
8 |
|
|
30 |
999-0355
|
Washer 3/8 x 7/8 SAE flat stainless steel |
10 |
|
|
31 |
175-3326
|
Vinyl hose |
1 |
|
|
32 |
175-5392
|
Balljoint link 10 x 1 1/2 |
2 |
|
|
33 |
999-1120
|
Nut M10-1.5 nylon insert lock stainless steel |
2 |
|
|
34 |
999-0355
|
Washer 3/8 x 7/8 SAE flat stainless steel |
2 |
|
|
