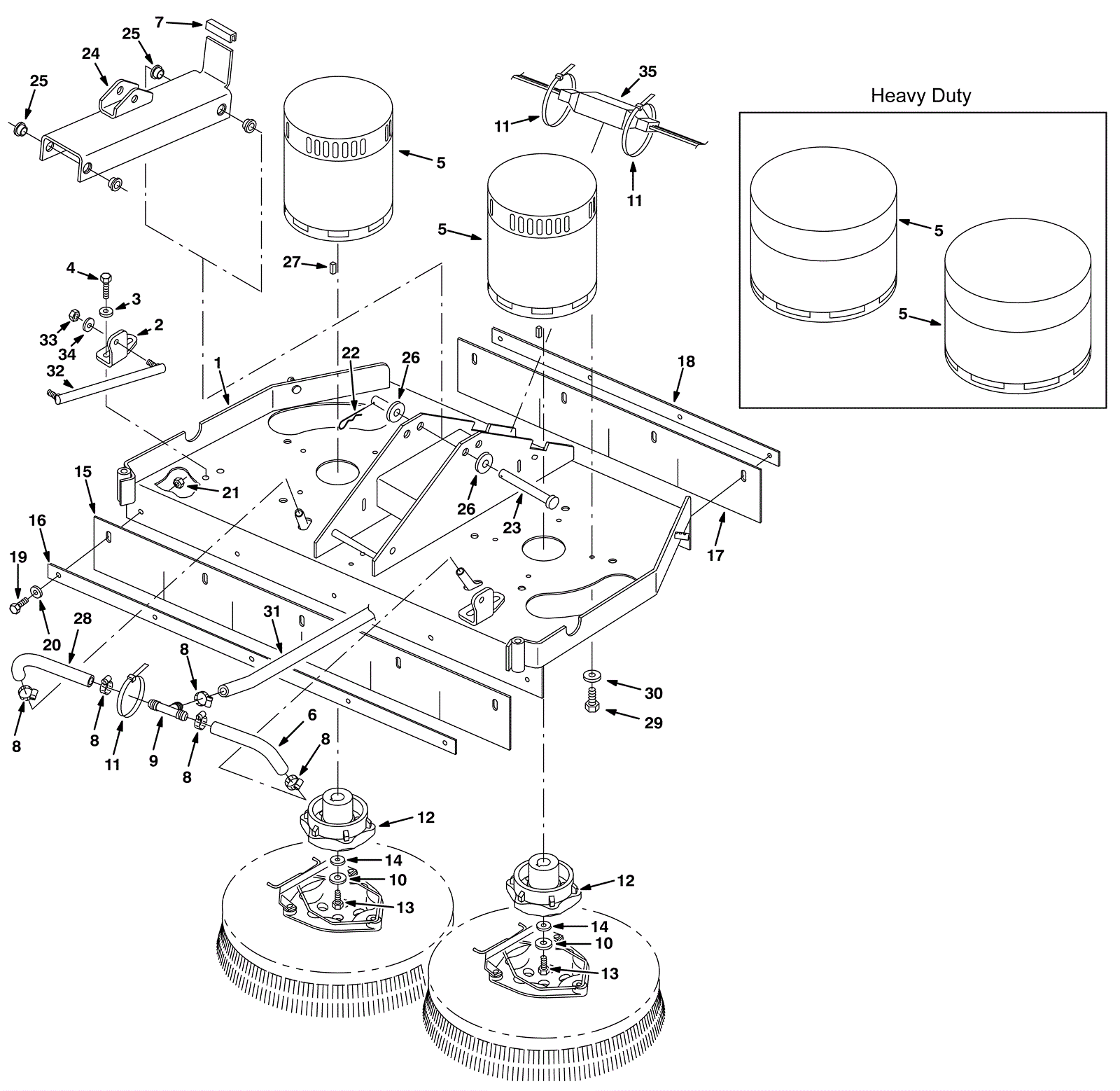

EZ RIDER HP Scrub Head Motor Assembly - From SN 10214061-10541284

#PartDescriptionPriceReqNotesAvailability
1a 275-5340 28 inch head kit (OBSOLETE) $690.80 1 (includes 2-4) (before SN 10188433) (standard) usually ships 1-5 days
1b 275-5351 32 inch head kit $932.25 1 (after SN 10188432) (heavy duty) usually ships 1-5 days
2 175-4988 Linkage bracket $33.44 2 usually ships 1-5 days
3 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel $0.99 4 ships same day
4 175-4989 Screw 10 x 1 1/2 x 20 stainless steel $6.93 4 usually ships 1-5 days
5a 175-3325 Brush motor kit $1,404.26 2 (includes 5b) (from SN 10214061-10541284) (standard) usually ships 5-16 days
5b 175-0368 Carbon brush (sold individually) $26.29 4 (from SN 10214061-10541284) (standard) usually ships 5-16 days
5c 175-3325 Brush motor kit $1,404.26 2 (from SN 10214061-10541284) (heavy duty) usually ships 5-16 days
6 175-5249 Hose 1/2 x 1 foot (Tennant Industrial) $29.23 1 ft usually ships 5-16 days
7 175-3336 Rubber trim molding $17.49 1 usually ships 1-5 days
8 175-6081 Hose clamp $4.84 5 ships same day
9 175-3329 Plastic tee fitting $5.83 1 usually ships 5-16 days
10 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel $0.99 2 ships same day
11 175-2226 Nylon wire tie $3.30 3 ships same day
12 175-9525 Brush drive hub $372.32 2 ships same day
13 999-0556 Bolt 5/16-18 x 3/4 hex head stainless steel $0.99 2 ships same day
14 999-1407 Washer 5/16 belleville $3.04 2 ships same day
15a 175-3330 Front skirt 28 inch $23.32 1 (28 inch) usually ships 5-16 days
15b 175-5345 Front skirt $32.78 1 (32 inch) usually ships 5-16 days
16a 175-3331 28 inch (700mm) front skirt retainer strap $34.87 1 (28 inch) usually ships 1-5 days
16b 175-5346 Front skirt retainer strap $144.87 1 (32 inch) usually ships 1-5 days
17a 175-3332 Rear skirt 28 inch $14.08 1 (28 inch) usually ships 5-16 days
17b 175-5347 Rear skirt $21.89 1 (32 inch) usually ships 1-5 days
18a 175-3333 28 inch (700mm) rear skirt retainer strap $31.57 1 (28 inch) usually ships 1-5 days
18b 175-5348 Rear skirt retainer strap $124.19 1 (32 inch) usually ships 1-5 days
19 999-1312 Screw M6-1 x 20mm hex head stainless steel $0.99 9 ships same day
20 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 9 ships same day
21 999-0497 Nut M6-1 nylon insert lock stainless steel $1.03 9 ships same day
22 175-2106 Cotter hair pin $3.30 1 ships same day
23 175-2116 Clevis pin $5.83 1 usually ships 5-16 days
24 175-3334 Lifting weldment $101.20 1 usually ships 1-5 days
25 175-3335 Flanged bushing $15.40 4 usually ships 1-5 days
26 999-0114 Washer 1/2 SAE flat $0.99 2 ships same day
27 175-2236 Square keyway $3.30 2 (standard) usually ships 5-16 days
28 175-5249 Hose 1/2 x 1 foot (Tennant Industrial) $29.23 1 ft usually ships 5-16 days
29a 999-0334 Bolt 1/4-20 x 3/4 inch hex head stainless steel $3.85 8 (standard) ships same day
29b 999-0493 Bolt 3/8-16 x 3/4 hex head stainless steel $0.99 8 (heavy duty) ships same day
30 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 8 ships same day
31 175-3326 Vinyl hose $92.29 25 in usually ships 1-5 days
32 175-5392 Balljoint link 10 x 1 1/2 $90.20 2 usually ships 1-5 days
33 999-1120 Nut M10-1.5 nylon insert lock stainless steel $3.92 2 ships same day
34 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel $0.99 2 ships same day
35a 275-2443 Wiring harness (OBSOLETE) $148.58 1 (standard) usually ships 5-16 days
35b 175-2440 Disk head wiring harness $144.54 1 (heavy duty) usually ships 5-16 days
