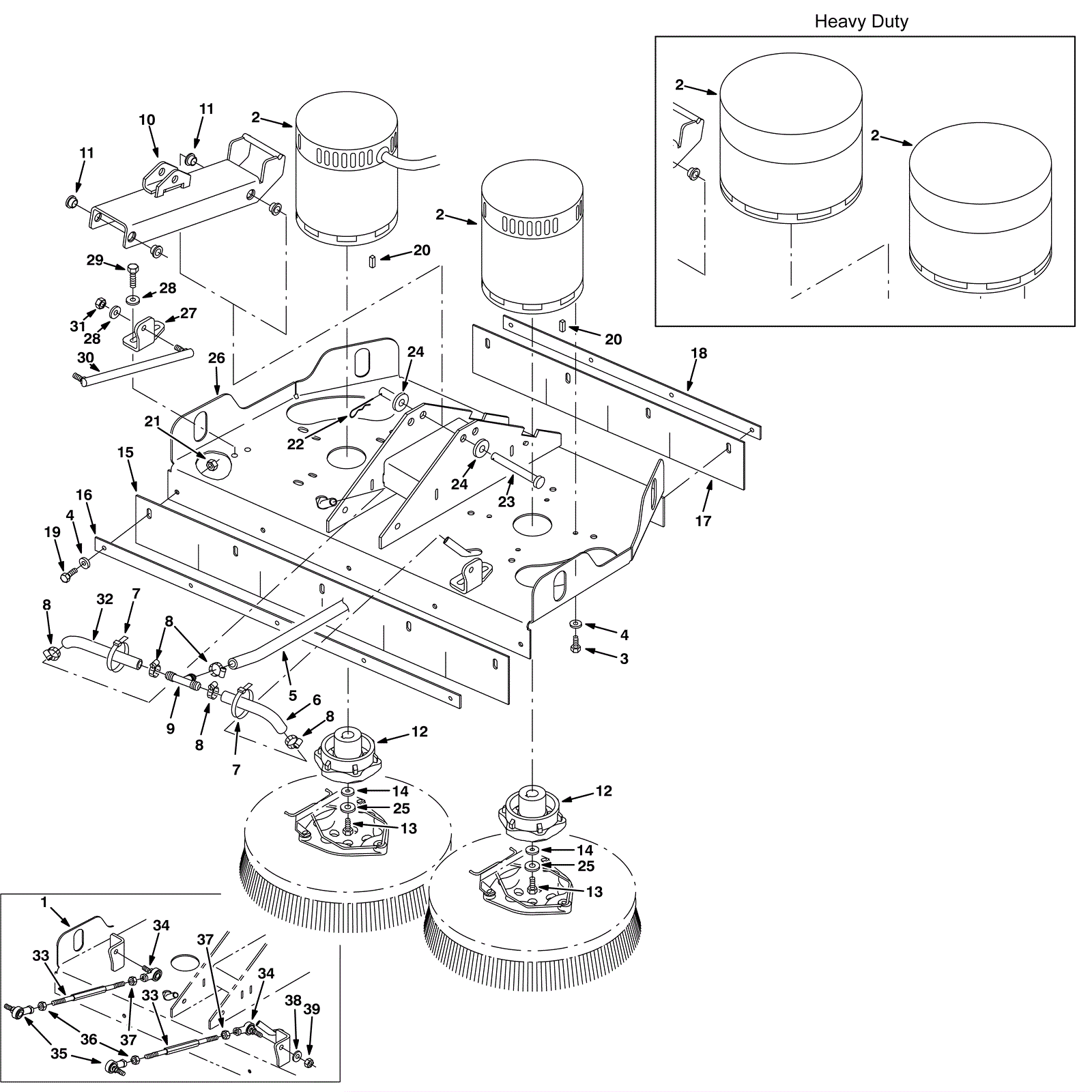

EZ RIDER HP Scrub Head Motor Assembly - Before SN 10214061

#PartDescriptionPriceReqNotesAvailability
1a 175-5351 28 inch (700mm) scrub deck weldment (OBSOLETE) $74.80 1 (before SN 10188433) (28 inch) usually ships 1-5 days
1b 175-5344 Scubhead kit 800mm (OBSOLETE) Call for price 1 (before SN 10188433) (32 inch) usually ships 1-5 days
2a 175-3325 Brush motor kit $1,532.74 2 (includes 2b) usually ships 10-16 days
2b 175-0368 Carbon brush (sold individually) $28.82 1 usually ships 10-16 days
3a 999-0334 Bolt 1/4-20 x 3/4 inch hex head stainless steel $3.85 8 usually ships 12-18 days
3b 999-0493 Bolt 3/8-16 x 3/4 hex head stainless steel $0.99 8 (heavy duty) ships same day
4 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 17 ships same day
5 175-3326 Vinyl hose $100.76 25 in usually ships 1-5 days
6 175-5249 Hose 1/2 x 1 foot (Tennant Industrial) $32.01 1 ft usually ships 10-16 days
7 175-2226 Nylon wire tie $4.49 2 ships same day
8a 375-0291 Hose clamp $5.28 5 ships same day
8b 175-6081 Hose clamp $4.84 5 (heavy duty) ships same day
9 175-3329 Plastic tee fitting $6.49 1 usually ships 10-16 days
10 175-4977 Lifting weldment $254.10 1 usually ships 1-5 days
11 175-3335 Flanged bushing $16.94 4 usually ships 1-5 days
12 275-1171 Brush drive hub $190.41 2 ships same day
13 999-0556 Bolt 5/16-18 x 3/4 hex head stainless steel $0.99 2 ships same day
14 999-1407 Washer 5/16 belleville $3.04 2 ships same day
15 175-3330 Front skirt 28 inch $25.63 1 usually ships 10-16 days
16 175-3331 28 inch (700mm) front skirt retainer strap $38.17 1 usually ships 1-5 days
17 175-3332 Rear skirt 28 inch $15.51 1 usually ships 10-16 days
18 175-3333 28 inch (700mm) rear skirt retainer strap $34.54 1 usually ships 1-5 days
19 999-1312 Screw M6-1 x 20mm hex head stainless steel $0.99 9 (standard) ships same day
20 175-2236 Square keyway $4.49 2 usually ships 10-16 days
21 999-0497 Nut M6-1 nylon insert lock stainless steel $0.99 9 ships same day
22 175-2117 Cotter pin $5.28 1 usually ships 10-16 days
23 175-2116 Clevis pin $6.49 1 usually ships 10-16 days
24 999-0114 Washer 1/2 SAE flat $0.99 2 usually ships 12-18 days
25 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel $0.99 2 ships same day
26 275-5339 28 inch head kit (OBSOLETE) Call for price 1 (SN 10188433-10214060) usually ships 1-5 days
27 175-4988 Linkage bracket $36.63 2 (SN 10188433-10214060) usually ships 1-5 days
28 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel $0.99 6 (SN 10188433-10214060) ships same day
29 175-4989 Screw 10 x 1 1/2 x 20 stainless steel $7.70 4 (SN 10188433-10214060) usually ships 1-5 days
30 175-5392 Balljoint link 10 x 1 1/2 $98.56 2 (SN 10188433-10214060) usually ships 1-5 days
31 999-1120 Nut M10-1.5 nylon insert lock stainless steel $3.92 2 (SN 10188433-10214060) ships same day
32 175-5249 Hose 1/2 x 1 foot (Tennant Industrial) $32.01 1 ft usually ships 10-16 days
33 175-3319 Threaded rod $66.99 2 (before SN 10188433) ships same day
34 175-3320 Rod end left side $45.76 2 (before SN 10188433) usually ships 10-16 days
35 175-3321 Rod end right side $45.76 2 (before SN 10188433) usually ships 10-16 days
36 999-0169 Nut 3/8-24 hex jam plain finish $0.99 2 (before SN 10188433) ships same day
37 999-0319 Nut 3/8-24 hex left hand plain finish $1.98 2 (before SN 10188433) ships same day
38 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel $0.99 4 (before SN 10188433) (standard) ships same day
39 175-3322 Nut 3/8-24 hex lock $5.94 4 (before SN 10188433) usually ships 10-16 days
