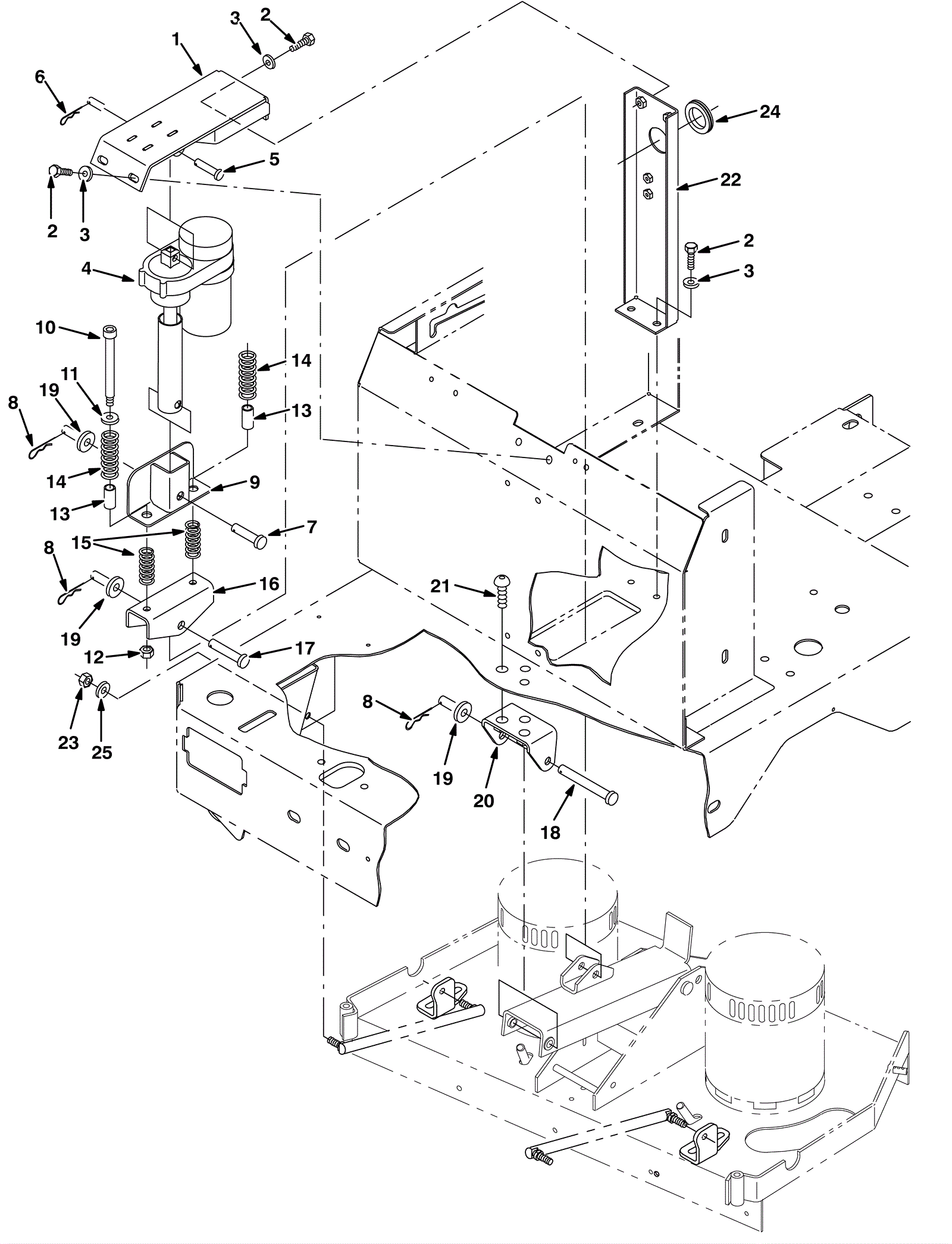

EZ RIDER HP Scrub Head Lift Assembly

#PartDescriptionPriceReqNotesAvailability
1 175-4968 Actuator mounting weldment $188.87 1 usually ships 1-5 days
2 999-0581 Bolt M8-1.25 x 25mm hex head full thread zinc $0.99 6 ships same day
3 999-0123 Washer 1/4 SAE flat zinc plated $0.99 6 ships same day
4 175-4969 Replacement actuator kit $495.33 1 usually ships 5-16 days
5 175-2592 Clevis Pin 0.37 D X 1.75 L $3.96 1 ships same day
6 175-2113 Cotter pin $2.42 1 ships same day
7 175-2382 Clevis pin $4.84 1 usually ships 5-16 days
8 175-2106 Cotter hair pin $3.30 3 ships same day
9 175-4970 Actuator guide bracket weldment $26.40 1 usually ships 1-5 days
10 175-2856 Bolt 3/8-16 x 1/2 x 4 shoulder $21.01 2 usually ships 1-5 days
11 999-0114 Washer 1/2 SAE flat $0.99 4 ships same day
12 999-0324 Nut 3/8-16 nylon insert lock jam zinc plated $0.99 2 ships same day
13 175-2442 Sleeve $7.15 2 usually ships 5-16 days
14 175-3315 Compression spring $8.03 2 usually ships 1-5 days
15 175-3316 Compression spring $5.61 2 usually ships 1-5 days
16 175-3317 Lift channel $48.84 1 usually ships 1-5 days
17 175-9603 Clevis pin $3.96 1 usually ships 5-16 days
18 175-2116 Clevis pin $5.83 1 usually ships 5-16 days
19 999-0114 Washer 1/2 SAE flat $0.99 3 ships same day
20 175-4971 Actuator mounting channel weldment $42.02 1 usually ships 1-5 days
21 175-3256 Screw M12-1.75 x 25mm button head $7.26 3 usually ships 1-5 days
22 175-4972 Channel weldment support $103.18 1 usually ships 5-16 days
23a 175-3322 Nut 3/8-24 hex lock $5.39 2 usually ships 5-16 days
23b 999-1120 Nut M10-1.5 nylon insert lock stainless steel $3.92 2 ships same day
24 175-3446 Rubber grommet $4.18 1 usually ships 5-16 days
25 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel $0.99 2 ships same day
