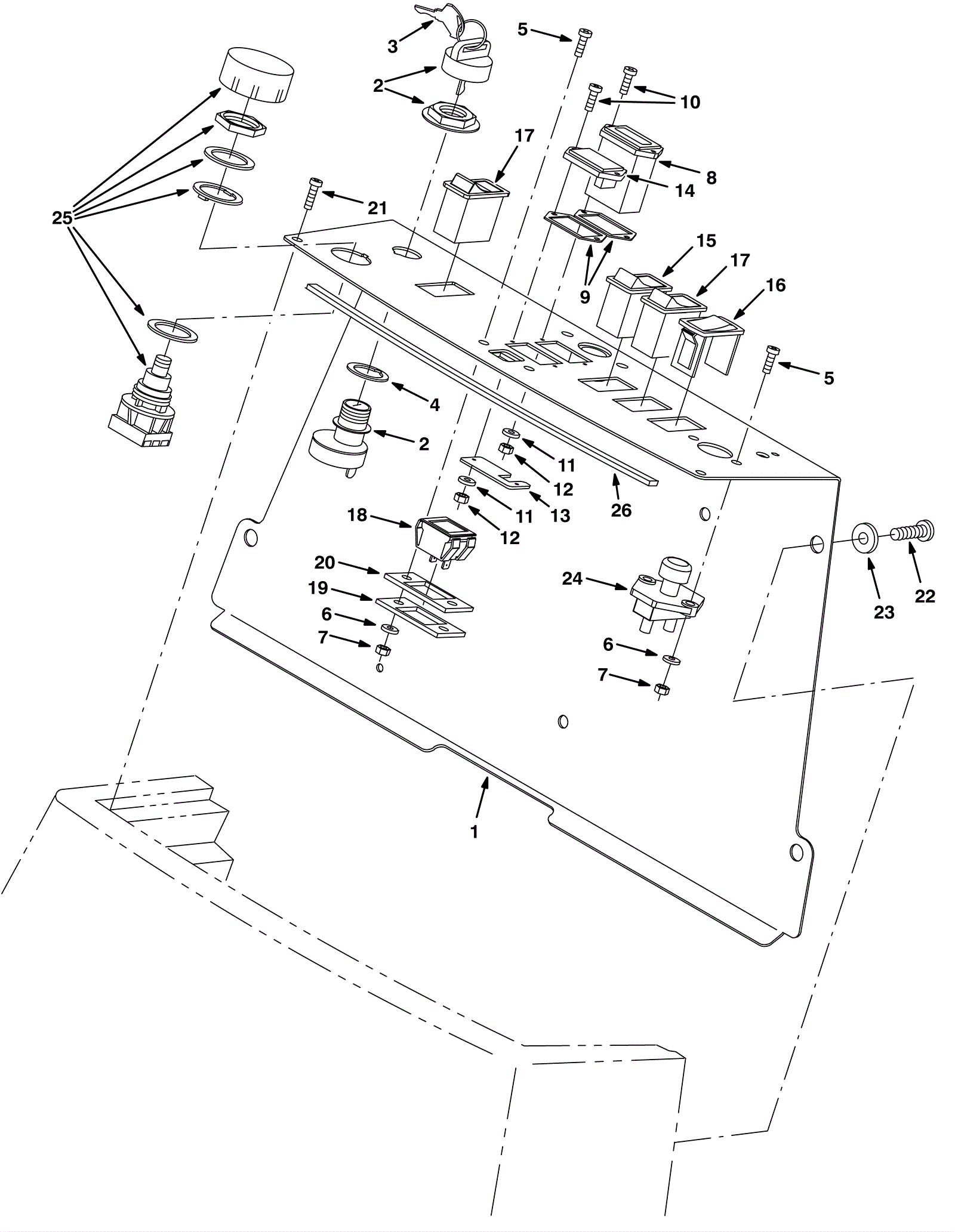

EZ RIDER HP Instrument Panel Assembly

#PartDescriptionPriceReqNotesAvailability
1 175-4928 Instrument panel $86.68 1 usually ships 1-5 days
2 175-4929 Key switch $88.11 1 (includes item 3) usually ships 5-16 days
3 175-4930 Replacement key $13.42 1 usually ships 5-16 days
4 175-4931 Key switch washer $9.57 1 usually ships 1-5 days
5 175-4932 Screw M6-1 x 20mm button head $2.86 4 usually ships 1-5 days
6 999-0016 Washer 1/4 flat plain finish $0.99 4 ships same day
7 999-0469 Nut M6-1 nylon insert lock zinc plated $1.32 4 ships same day
8a 175-7079 Hour meter $77.44 1 ships same day
8b 991-7137 Hour meter $78.26 1 (NON-OEM) ships same day
9 175-2327 Gasket $4.29 2 usually ships 5-16 days
10 175-4933 Screw M3-.5 x 12mm pan head $2.42 4 usually ships 1-5 days
11 999-0479 Washer #4 internal star lock zinc plated $0.99 4 ships same day
12 999-0768 Nut M3-.5 hex coarse thread plain finish $1.54 4 ships same day
13 175-4934 Battery gauge support plate $14.30 1 usually ships 1-5 days
14a 175-4935 36V Battery gauge $89.10 1 usually ships 5-16 days
14b 991-9183 GAUGE, DISCHARGE, BATTERY, 36VDC, RT,LED $108.23 1 usually ships 5-16 days
15 175-4940 SWITCH, ROCKER, DPDT, ON / OFF / ON (Tennant Industrial) $38.24 1 usually ships 5-16 days
16 175-2556 Switch plug $6.60 1 usually ships 5-16 days
17a 175-2356 Rocker switch DPST $42.68 2 ships same day
17b 991-3035 Rocker switch DPST $48.95 2 (NON-OEM) usually ships 5-16 days
18 175-4936 LIGHT, PANL, 36VDC, 1.1 X 1.0 (Tennant Industrial) $33.57 1 usually ships 1-5 days
19 175-4937 Light mounting plate $5.41 1 usually ships 1-5 days
20 175-4938 Foam seal $2.51 1 usually ships 1-5 days
22 999-0499 Bolt M8-1.25 x 20mm hex head full thread stainless steel $1.85 4 ships same day
23 999-9097 Washer M8 flat stainless steel $0.99 4 ships same day
24 175-3218 Push switch SPST $24.09 1 usually ships 5-16 days
25 175-3220 Push switch $54.78 1 usually ships 5-16 days
26 275-5334 Gasket strip (OBSOLETE) $9.35 1 usually ships 1-5 days
