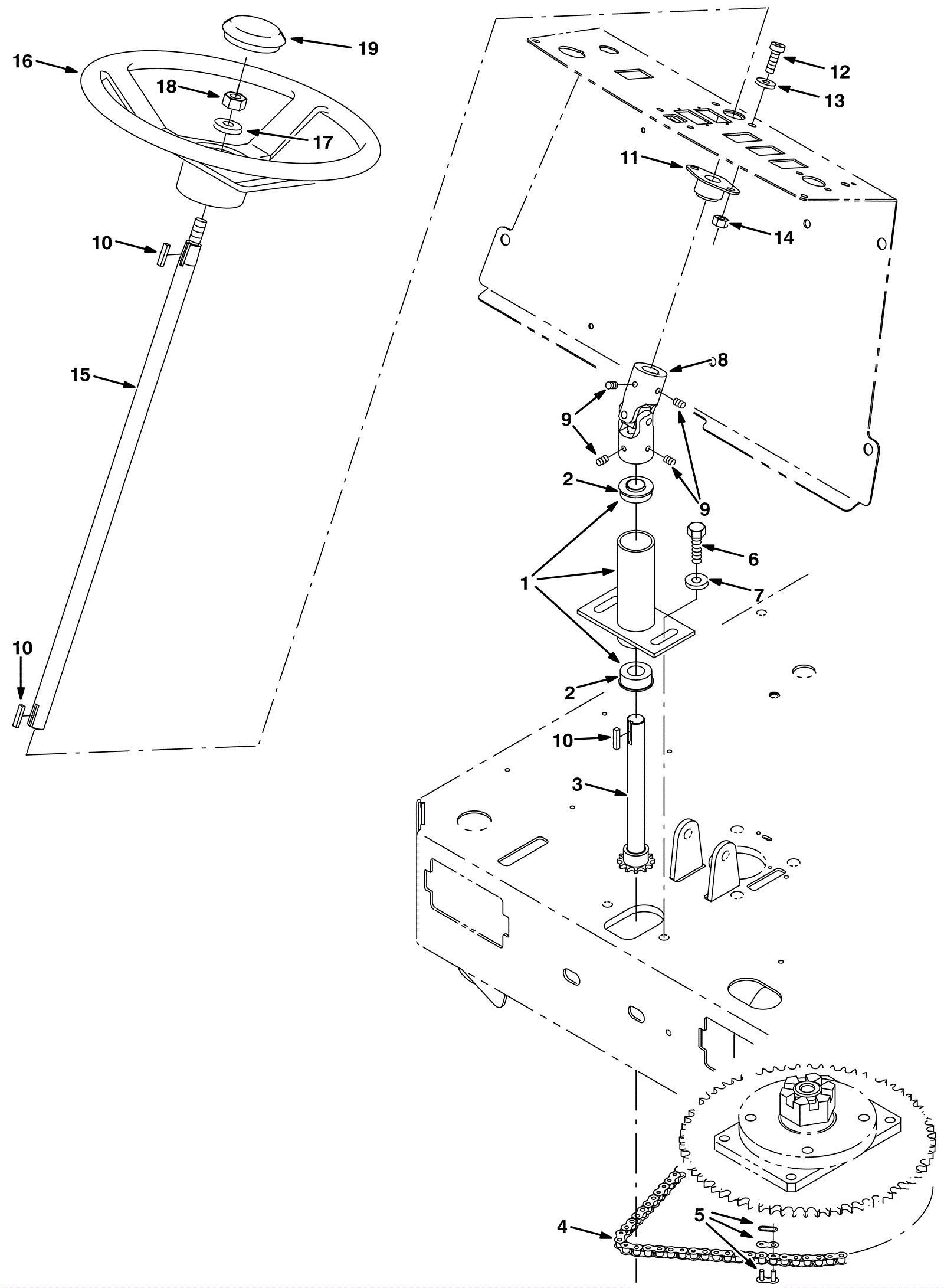

EZ RIDER HP Steering Assembly

#PartDescriptionPriceReqNotesAvailability
1 175-4925 Steering housing assembly $195.14 1 (includes item 2) usually ships 1-5 days
2 175-3195 Ball bearing $18.92 2 usually ships 5-16 days
3 175-3196 Steering shaft $129.47 1 usually ships 5-16 days
4 175-3206 Roller chain $33.55 1 usually ships 5-16 days
5 175-3207 Master link $3.96 1 usually ships 5-16 days
6 175-3258 Bolt M10-1.5 x 35mm hex head $3.96 2 usually ships 1-5 days
7 175-2305 Washer $3.96 2 ships same day
8 275-5323 U joint $109.56 1 ships same day
9 175-4926 Screw 5/16-18 x 3/8 set nylon lock $3.96 4 ships same day
10 175-3200 Square keyway $3.30 3 ships same day
11 175-3201 Flanged bearing $5.83 1 usually ships 5-16 days
12 175-4927 Screw M8-1.25 x 20mm button head $3.19 2 ships same day
13 999-0123 Washer 1/4 SAE flat zinc plated $0.99 2 ships same day
14 999-0471 Nut M8-1.25 nylon insert lock zinc plated $0.99 2 ships same day
15 175-3203 Upper steering shaft $211.75 1 usually ships 1-5 days
16 275-4653 Steering wheel $149.60 1 usually ships 5-16 days
17 999-0187 Washer 1/2 flat plain finish $0.99 1 ships same day
18 999-0519 Nut M12-1.75 nylon insert lock stainless steel $2.12 1 ships same day
19 275-5333 Steering wheel cap $3.96 1 usually ships 5-16 days
