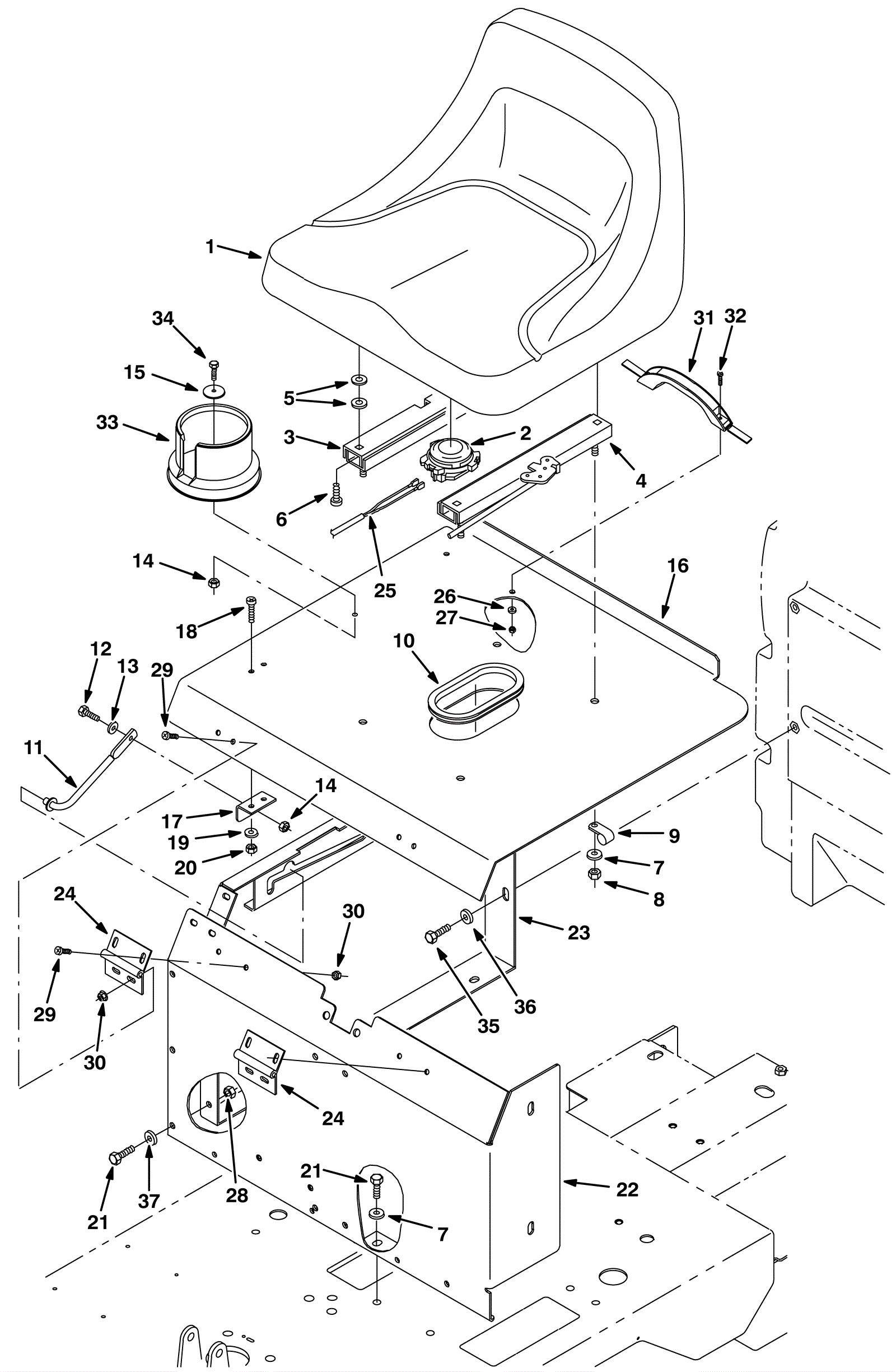

EZ RIDER HP Seat Assembly

#PartDescriptionPriceReqNotesAvailability
1 275-9328 Seat kit (includes screw and spacer) $262.90 1 ships same day
2 175-3173 Seat switch $23.54 1 usually ships 1-5 days
3 175-3174 12 1/2 inch adjustable seat slide track $47.96 1 usually ships 1-5 days
4 275-2671 11 1/2 inch seat adjuster rail (Tennant Industrial) $46.70 1 usually ships 5-16 days
5 175-3176 Washer 3/8 flat steel plated $2.42 8 ships same day
6 999-0399 Screw 5/16-18 x 3/4 pan head phillips zinc plated $0.99 4 ships same day
7 999-0024 Washer 5/16 flat stainless steel $1.34 10 ships same day
8 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 4 ships same day
9 175-3179 P clamp $3.96 1 usually ships 5-16 days
10 275-4795 Molding trim $49.17 1 usually ships 1-5 days
11 175-3181 Safety support arm $53.90 1 usually ships 5-16 days
12 999-0502 Bolt M6-1 x 20mm hex head full thread zinc $0.99 1 ships same day
13 999-0016 Washer 1/4 flat plain finish $0.99 1 ships same day
14 999-0469 Nut M6-1 nylon insert lock zinc plated $1.32 2 ships same day
15 999-1288 Washer 1/4 x 1 OD fender stainless steel $0.99 1 ships same day
16 175-4917 Seat plate with labels $174.90 1 (includes 17-20) usually ships 1-5 days
17 175-4918 Safety support arm bracket $15.18 1 usually ships 1-5 days
18 999-1168 Screw M6-1 x 20mm pan head phillips stainless steel $1.01 2 ships same day
19 999-0016 Washer 1/4 flat plain finish $0.99 2 ships same day
20 999-0469 Nut M6-1 nylon insert lock zinc plated $1.32 2 ships same day
21 999-1133 Bolt M8-1.25 x 20mm hex head full thread plain $0.99 9 ships same day
22 175-4920 Front panel $115.50 1 usually ships 1-5 days
23 175-4921 Seat support weldment $178.97 1 usually ships 1-5 days
24 175-4922 HINGE, .25PIN .12 3.0W 03.0L, 4/0.28SL (Tennant Industrial) $45.42 2 usually ships 1-5 days
25 175-3190 Seat harness $44.22 1 ships same day
26 999-0998 Washer #10 flat stainless steel $0.99 2 ships same day
27 175-2894 Nut M5-.8 hex nylon locking $2.42 2 usually ships 5-16 days
28 999-0665 Nut M8-1.25 flange lock $0.99 3 ships same day
29 999-1041 Screw M6-1 x 12mm pan head phillips stainless steel $0.99 8 ships same day
30 999-6694 Nut M6-1 hex serrated flange stainless steel $0.99 8 ships same day
31 175-4924 HANDLE, HOOD (Tennant Industrial) $26.05 1 usually ships 1-5 days
32 175-2895 Screw M5-0.8 x 20mm pan head $3.30 2 usually ships 5-16 days
33 175-3188 Cup holder $56.10 1 usually ships 5-16 days
34 999-0518 Bolt M6-1 x 25mm hex head full thread zinc $0.99 1 ships same day
35 999-0499 Bolt M8-1.25 x 20mm hex head full thread stainless steel $1.85 4 ships same day
36 175-2367 Steel plated washer $2.97 4 usually ships 1-5 days
37 999-0123 Washer 1/4 SAE flat zinc plated $0.99 3 ships same day
