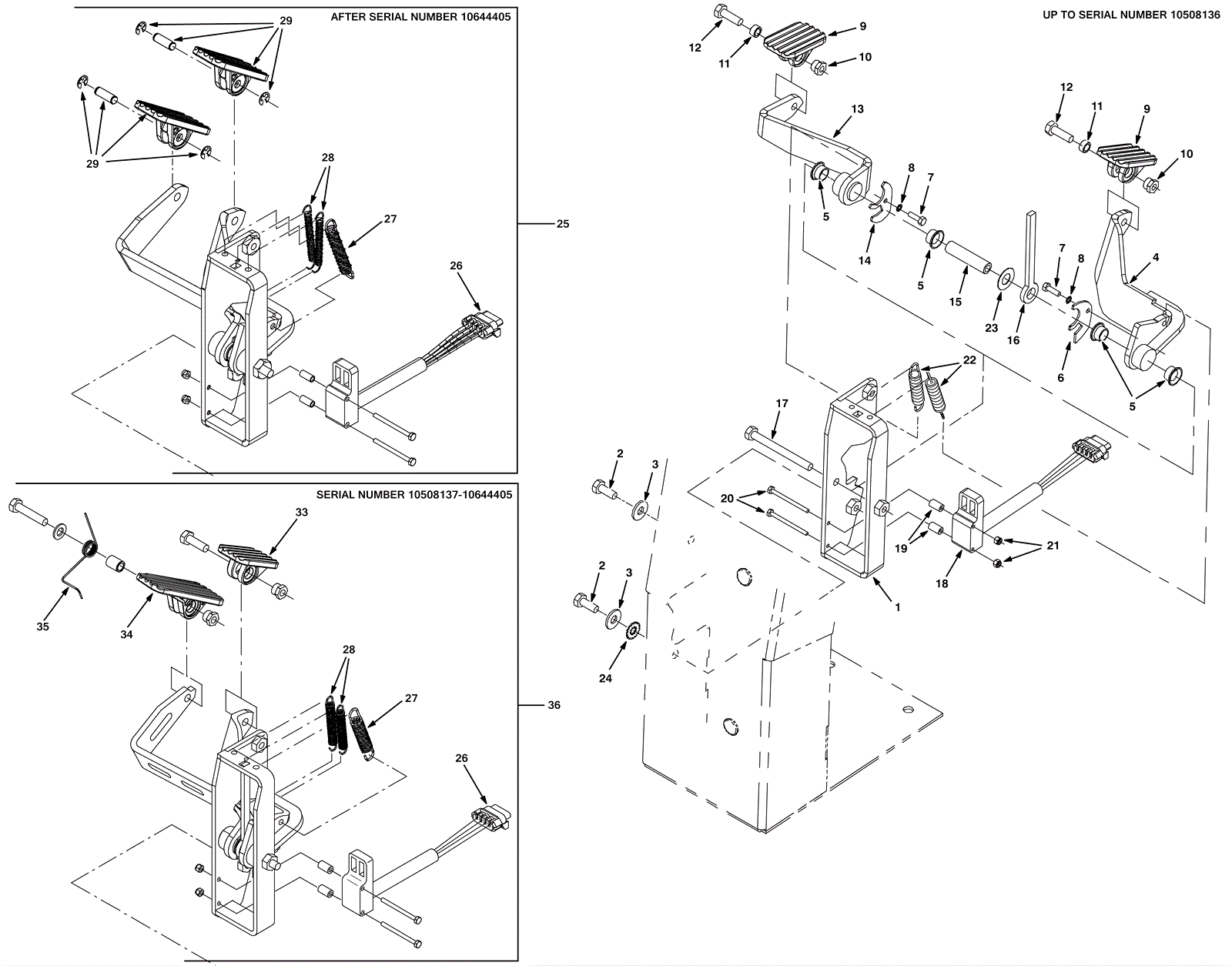

| # | Part | Description | Price | Req | Notes | Availability |
|---|
1 |
N/A
|
Not available |
Call for price
|
1 |
(No longer available, replaced by item 36) |
usually ships 3-26 days |
2 |
999-0499
|
Bolt M8-1.25 x 20mm hex head full thread stainless steel |
$1.85
|
2 |
|
ships same day |
3 |
999-9097
|
Washer M8 flat stainless steel |
$0.99
|
2 |
|
ships same day |
4 |
275-8099
|
Brake arm weldment |
$133.21
|
1 |
(Up to Serial number 10508136) |
usually ships 1-5 days |
5 |
175-3335
|
Flanged bushing |
$15.73
|
4 |
(Up to Serial number 10508136) |
usually ships 1-5 days |
6 |
275-8100
|
Brake plate |
$11.22
|
1 |
(Up to Serial number 10508136) |
usually ships 1-5 days |
7 |
175-6939
|
Screw M5 x 16mm stainless steel |
$3.70
|
2 |
(Up to Serial number 10508136) |
ships same day |
8 |
999-1026
|
Washer #10 internal lock stainless steel |
$0.99
|
2 |
(Up to Serial number 10508136) |
ships same day |
9 |
275-8101
|
Foot pedal |
$5.50
|
2 |
(Up to Serial number 10508136) |
usually ships 10-16 days |
10 |
275-8102
|
Nut M8 x -1.25 T |
$5.28
|
2 |
(Up to Serial number 10508136) |
usually ships 10-16 days |
11 |
275-8103
|
Sleeve bushing |
$4.88
|
2 |
(Up to Serial number 10508136) |
usually ships 10-16 days |
12 |
999-0501
|
Bolt M8-1.25 x 25mm hex head full thread stainless steel |
$2.64
|
2 |
(Up to Serial number 10508136) |
ships same day |
13 |
275-8104
|
Accelerator arm weldment (OBSOLETE) |
$376.75
|
1 |
(Up to Serial number 10508136) |
usually ships 1-5 days |
14 |
275-8105
|
Accelerator plate |
$11.22
|
1 |
(Up to Serial number 10508136) |
usually ships 1-5 days |
15 |
275-8106
|
Tube pivot |
$42.79
|
1 |
(Up to Serial number 10508136) |
usually ships 1-5 days |
16 |
275-8107
|
Thrust bearing |
$11.77
|
1 |
(Up to Serial number 10508136) |
usually ships 1-5 days |
17 |
275-0066
|
Screw M8-1.25 x 80mm hex head 8.8 |
$4.88
|
1 |
(Up to Serial number 10508136) |
usually ships 1-5 days |
18 |
275-7039
|
Hall sensor |
$349.03
|
1 |
(Up to Serial number 10508136) |
ships same day |
19 |
275-8109
|
Stand off tube |
$5.41
|
2 |
(Up to Serial number 10508136) |
usually ships 1-5 days |
20 |
999-1947
|
Screw M4-.7 x 50 hex stainless steel |
$1.47
|
2 |
(Up to Serial number 10508136) |
usually ships 12-18 days |
21 |
999-0954
|
Nut M4-.7 nylon insert lock stainless steel |
$0.99
|
2 |
(Up to Serial number 10508136) |
ships same day |
22 |
275-9360
|
Extension spring |
$29.48
|
2 |
(Up to Serial number 10508136) |
ships same day |
23 |
999-1156
|
Washer M12-.7 nylon |
$4.88
|
1 |
(Up to Serial number 10508136) |
ships same day |
24 |
175-2893
|
Washer 5/16 internal/external locking |
$4.09
|
1 |
|
usually ships 10-16 days |
25 |
275-6619
|
Pedal assembly |
$544.39
|
1 |
(After Serial number 10644405) |
usually ships 10-16 days |
26 |
275-7039
|
Hall sensor |
$349.03
|
1 |
(After Serial number 10508136) |
ships same day |
27 |
275-9360
|
Extension spring |
$29.48
|
1 |
(After Serial number 10508136) |
ships same day |
28 |
275-7040
|
Extension spring (Tennant Industrial) |
$15.50
|
2 |
(After Serial number 10508136) |
ships same day |
29 |
275-6620
|
Foot pedal |
$10.12
|
2 |
(After Serial number 10644405) |
ships same day |
33 |
275-8101
|
Foot pedal |
$5.50
|
1 |
(Serial number 10508137-10644405) |
usually ships 10-16 days |
34 |
275-7908
|
Propel pedal (Tennant Industrial) |
$12.84
|
1 |
(Serial number 10508137-10644405) |
usually ships 1-5 days |
35 |
275-7909
|
Torsion spring |
$6.38
|
1 |
(Serial number 10508137-10644405) |
usually ships 1-5 days |
36 |
275-9358
|
Pedal assembly |
$691.68
|
1 |
(Serial number 10508137-10644405) |
usually ships 10-16 days |
