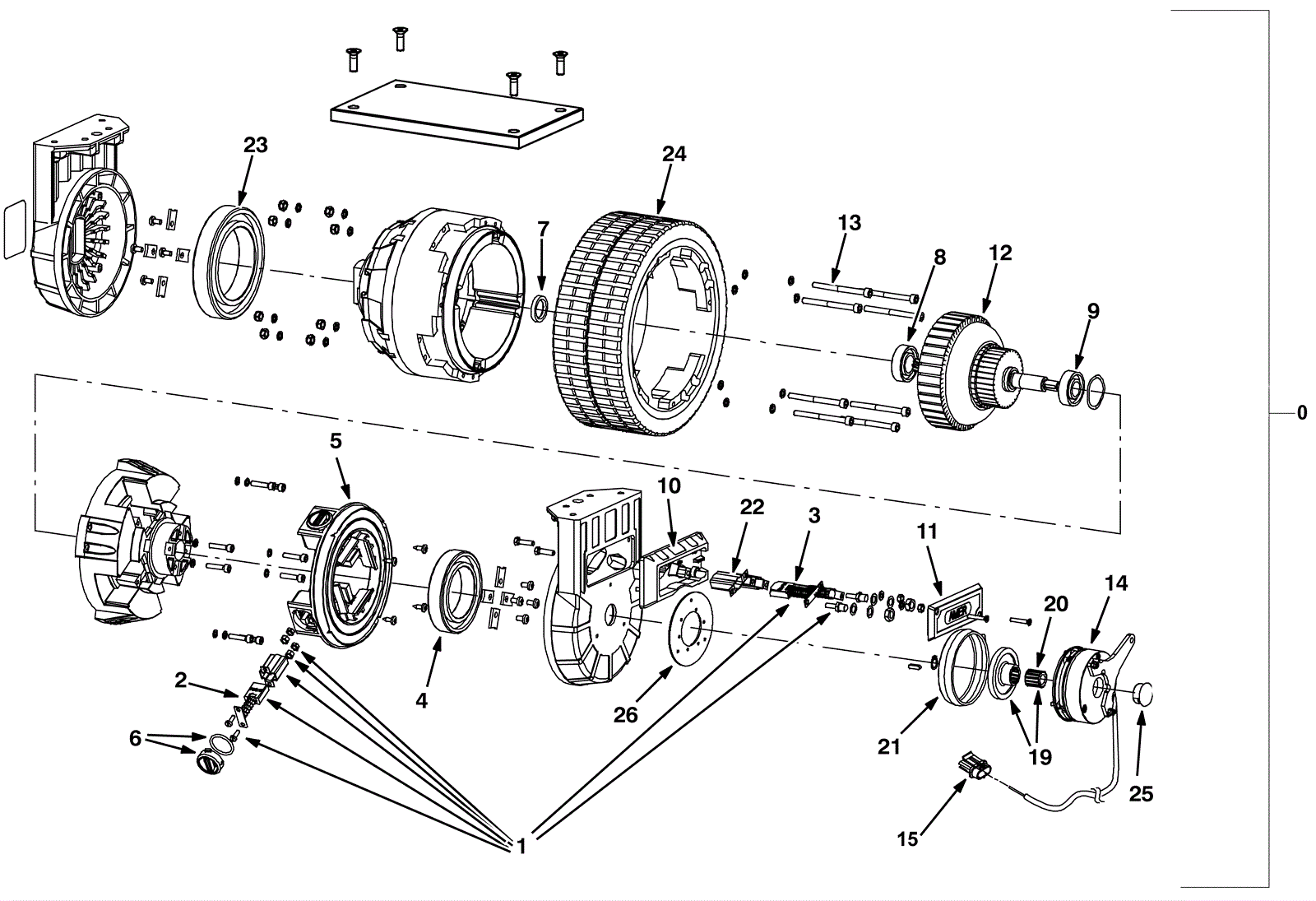

# | Part | Description | Price | Req | Notes | Availability |
0 |
275-9654
|
Complete drive and gearbox assembly |
$4,165.80
|
1 |
(includes 1-26) |
usually ships 6-16 days |
1 |
275-9722
|
Motor brush kit (pkg of 6) (OBSOLETE) |
$371.70
|
1 |
|
usually ships 6-16 days |
2a |
275-9723
|
Carbon brush kit (pkg of 4) |
$297.20
|
1 |
(includes 2b) |
usually ships 1-5 days |
2b |
275-9724
|
Carbon brush (sold individually) |
$51.60
|
4 |
|
usually ships 1-5 days |
3a |
275-9725
|
Curved carbon brush kit (pkg of 2) |
$169.20
|
1 |
(includes 3b) |
usually ships 1-5 days |
3b |
275-9726
|
Curved carbon brush (sold individually) |
$83.60
|
2 |
|
usually ships 1-5 days |
4 |
275-4975
|
Bearing |
$99.60
|
1 |
|
usually ships 6-16 days |
5 |
275-9727
|
Brush holder ring |
$550.50
|
1 |
|
usually ships 1-5 days |
6 |
175-5373
|
Carbon brush cover |
$50.05
|
4 |
|
ships same day |
7 |
175-5374
|
Ring seal |
$55.40
|
1 |
|
usually ships 6-16 days |
8 |
175-5375
|
Gearbox side bearing |
$72.90
|
1 |
|
usually ships 6-16 days |
9 |
175-5376
|
Motor side bearing |
$64.20
|
1 |
|
usually ships 6-16 days |
10 |
275-8260
|
Connection box |
$114.00
|
1 |
|
usually ships 6-16 days |
11 |
275-8261
|
Connection cover |
$19.60
|
11 |
|
usually ships 6-16 days |
12 |
275-9728
|
Armature |
$694.10
|
1 |
|
usually ships 1-5 days |
13 |
275-9729
|
Wheel mounting screws |
$3.60
|
8 |
|
usually ships 1-5 days |
14 |
275-9868
|
Brake kit with connector |
$1,039.60
|
1 |
(includes 15 - 20) |
ships same day |
15a |
175-8753
|
Female connector |
$7.48
|
2 |
|
ships same day |
15b |
175-8756
|
Male and female secondary lock |
$3.60
|
2 |
|
usually ships 6-16 days |
15c |
275-8096
|
Female terminal |
$3.00
|
2 |
|
ships same day |
15d |
275-8097
|
Wire seal |
$3.10
|
2 |
|
ships same day |
19 |
275-8266
|
Brake rotor |
$223.52
|
1 |
(includes 20) |
ships same day |
20 |
275-8266
|
Brake rotor |
$223.52
|
1 |
|
ships same day |
21 |
275-8268
|
Rubber sleeve |
$59.80
|
1 |
|
usually ships 6-16 days |
22 |
275-8269
|
Brush holder guide |
$14.00
|
1 |
|
usually ships 6-16 days |
23 |
275-8270
|
Steering bearing |
$268.60
|
1 |
|
usually ships 6-16 days |
24a |
275-8259
|
Solid tire (red) |
$681.20
|
1 |
|
usually ships 6-16 days |
24b |
275-8259
|
Solid tire (red) |
$681.20
|
1 |
(optional) |
usually ships 6-16 days |
25 |
175-3126
|
Plug |
$3.96
|
1 |
|
ships same day |
26 |
275-6775
|
Brake flange |
$33.10
|
1 |
|
usually ships 6-16 days |
