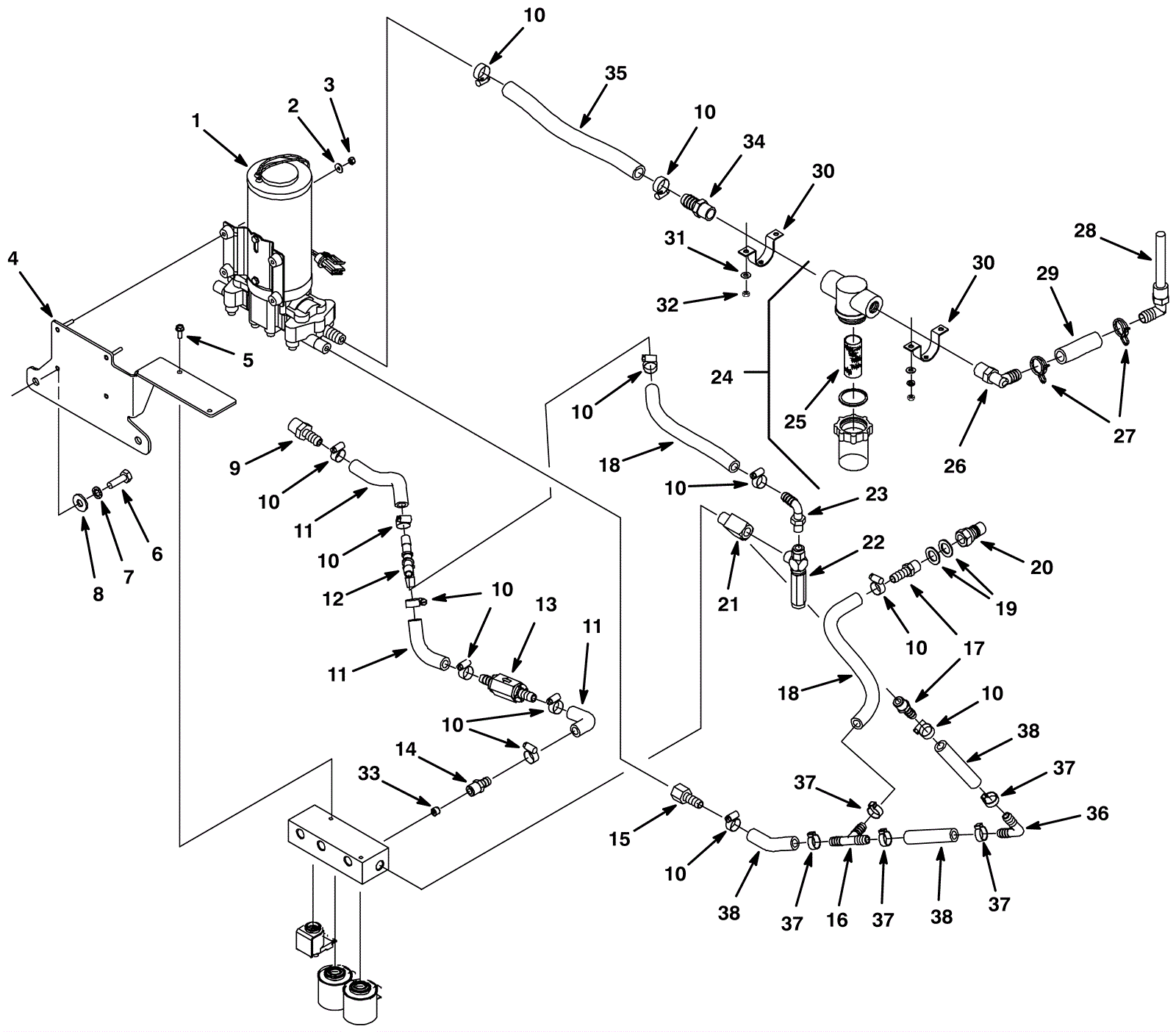

R14 Solution Assembly - 1

#PartDescriptionPriceReqNotesAvailability
1a 275-9139 24V pump assembly $1,186.46 1 (includes 1b - 1f) usually ships 10-16 days
1b 275-9707 24V pump motor $306.46 1 usually ships 10-16 days
1c 275-9708 100in offset cam bearing $77.33 1 usually ships 10-16 days
1d 275-9709 Pump head $582.56 1 usually ships 10-16 days
1e 275-9710 Valve and o-ring kit $284.68 1 usually ships 1-5 days
1f 275-9711 Plunger and seal kit $109.67 1 usually ships 1-5 days
2 999-1115 Washer M4 flat zinc plated $0.99 4 ships same day
3 999-0954 Nut M4-.7 nylon insert lock stainless steel $0.99 4 ships same day
4 275-9712 Manifold/pump mounting bracket $67.76 1 usually ships 1-5 days
5 999-1212 Screw 10-32 x 1/2 hex head stainless steel $0.99 2 ships same day
6 999-0499 Bolt M8-1.25 x 20mm hex head full thread stainless steel $1.85 2 ships same day
7 999-1053 Washer 5/16 internal star lock stainless steel $0.99 2 ships same day
8 999-9097 Washer M8 flat stainless steel $0.99 2 ships same day
9 275-5765 FITTING, PLSTC, STR, BM06/PM06, NYL (Tennant Industrial) $6.17 1 usually ships 10-16 days
10 175-6081 Hose clamp $4.84 13 ships same day
11 275-9713 Braided hose 3/8 x 5/8 x 36 inches $51.04 1 usually ships 10-16 days
12 275-5768 Plastic fitting $12.76 1 usually ships 1-5 days
13 175-2842 Check valve $47.96 1 ships same day
14 175-8694 Brass fitting $17.60 1 usually ships 10-16 days
15 175-6022 Brass fitting $6.05 1 usually ships 10-16 days
16 175-1615 Tee fitting $6.82 1 usually ships 10-16 days
17 175-2613 Straight brass fitting $5.50 2 usually ships 10-16 days
18 275-9714 Braided hose 3/8 x 5/8 x 36 inches $41.47 1 usually ships 10-16 days
19 175-1825 Washer $4.75 2 usually ships 10-16 days
20 991-8150 1/4 inch BH2-61 male nipple (mate to QD80) $12.21 1 ships same day
21 175-6029 Straight tee $14.08 1 ships same day
22 175-1941 Pressure relief valve $146.30 1 ships same day
23 175-7937 90 degree plastic elbow $5.83 1 usually ships 10-16 days
24 175-4310 Solution filter bowl assembly $75.35 1 (includes 25) ships same day
25 175-6250 Strainer $15.95 1 ships same day
26 175-3685 90 degree elbow fitting $6.05 1 usually ships 10-16 days
27 375-0291 Hose clamp $4.88 2 ships same day
28 175-4303 Inline filter with mesh screen $52.36 1 usually ships 10-16 days
29 275-9715 Hose 1/2 x 3/4 x 36 inches (clear) $36.30 1 usually ships 10-16 days
30 175-3690 U clamp $26.84 2 usually ships 10-16 days
31 999-0393 Washer 3/16 flat aluminum $0.99 2 ships same day
32 999-0740 Nut M5-.8 hex stainless steel $0.99 2 ships same day
33 175-8875 Pipe plug $16.06 1 usually ships 10-16 days
34 175-5234 Plastic fitting $6.05 1 usually ships 10-16 days
35 275-9716 Hose 1/2 x 3/4 x 36 inches (clear) $53.57 1 usually ships 10-16 days
36 175-8716 FITTING, PLSTC, E90, BM06/BM06 (Tennant Industrial) $6.17 1 usually ships 10-16 days
37 175-6032 Hose clamp $5.50 5 ships same day
38 175-6665 Hose 3/8 x 5/8 x 12 inches (grey) $14.52 1 ships same day
