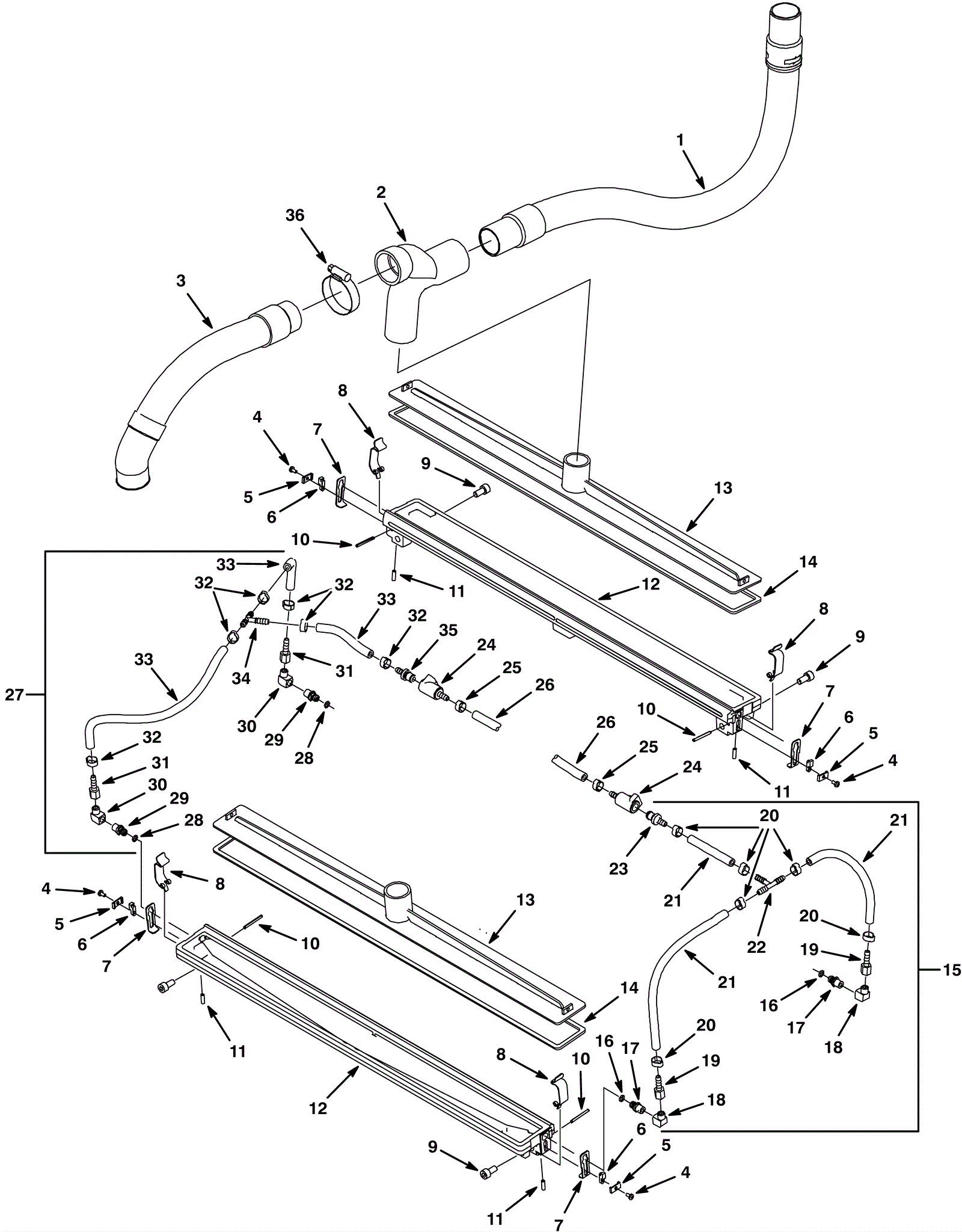

R14 Vacuum Shoe and Solution Flush Line Assembly

#PartDescriptionPriceReqNotesAvailability
1 275-9698 Vacuum hose 1 1/2 x 29 inch $68.31 1 usually ships 10-16 days
2 275-9699 PVC fitting $68.64 1 usually ships 1-5 days
3 275-9700 Vacuum hose 1 1/2 x 17 inch $58.08 1 usually ships 10-16 days
4 999-0534 Screw M4-.7 x 10mm pan head slotted zinc $0.99 4 ships same day
5 175-8847 Latch retainer $19.03 4 usually ships 10-16 days
6 175-8846 Timing key $27.39 4 usually ships 10-16 days
7 175-8845 Nozzle retaining latch $10.89 4 usually ships 10-16 days
8 175-8843 Vacuum tool cover mounting clip $5.50 4 usually ships 10-16 days
9 999-0802 Screw M8-1.25 x 16mm socket head $0.99 4 ships same day
10 175-8844 Roll pin 1/8 x 1 1/4 inch $3.04 4 ships same day
11 175-8842 Compression spring $5.83 4 ships same day
12 275-9701 Roller vacuum tool $556.14 2 ships same day
13 275-9702 Roller vacuum tool cover $238.15 2 usually ships 10-16 days
14 275-9703 Roller vacuum tool cover gasket $15.18 2 ships same day
15 275-9704 Left hand hose assembly $321.31 1 (includes 16-23) usually ships 1-5 days
16 175-8835 O-ring seal $5.50 2 usually ships 10-16 days
17 175-8836 Brass tip fitting $37.62 2 usually ships 10-16 days
18 175-1661 90 degree elbow fitting $5.50 2 usually ships 10-16 days
19 175-3529 Brass fitting $5.50 2 usually ships 10-16 days
20 175-6170 Hose clamp $4.88 6 ships same day
21 275-9705 PVC hose 1/4 x 3 feet (gray) $40.70 1 usually ships 10-16 days
22 175-7303 1/4 inch union tee $10.34 1 usually ships 10-16 days
23 175-8839 Strainer fitting $11.11 1 usually ships 10-16 days
24 175-5311 Female fitting with valve $56.65 2 usually ships 10-16 days
25 175-6170 Hose clamp $4.88 2 ships same day
26 275-9705 PVC hose 1/4 x 3 feet (gray) $40.70 1 usually ships 10-16 days
27 275-9706 Right hand hose assembly $322.85 1 (includes 28-35) usually ships 1-5 days
28 175-8835 O-ring seal $5.50 2 usually ships 10-16 days
29 175-8836 Brass tip fitting $37.62 2 usually ships 10-16 days
30 175-1661 90 degree elbow fitting $5.50 2 usually ships 10-16 days
31 175-3529 Brass fitting $5.50 2 usually ships 10-16 days
32 175-6170 Hose clamp $4.88 6 ships same day
33 275-9705 PVC hose 1/4 x 3 feet (gray) $40.70 1 usually ships 10-16 days
34 175-7303 1/4 inch union tee $10.34 1 usually ships 10-16 days
35 175-8839 Strainer fitting $11.11 1 usually ships 10-16 days
36 997-2000 Hose clamp $2.37 1 ships same day
