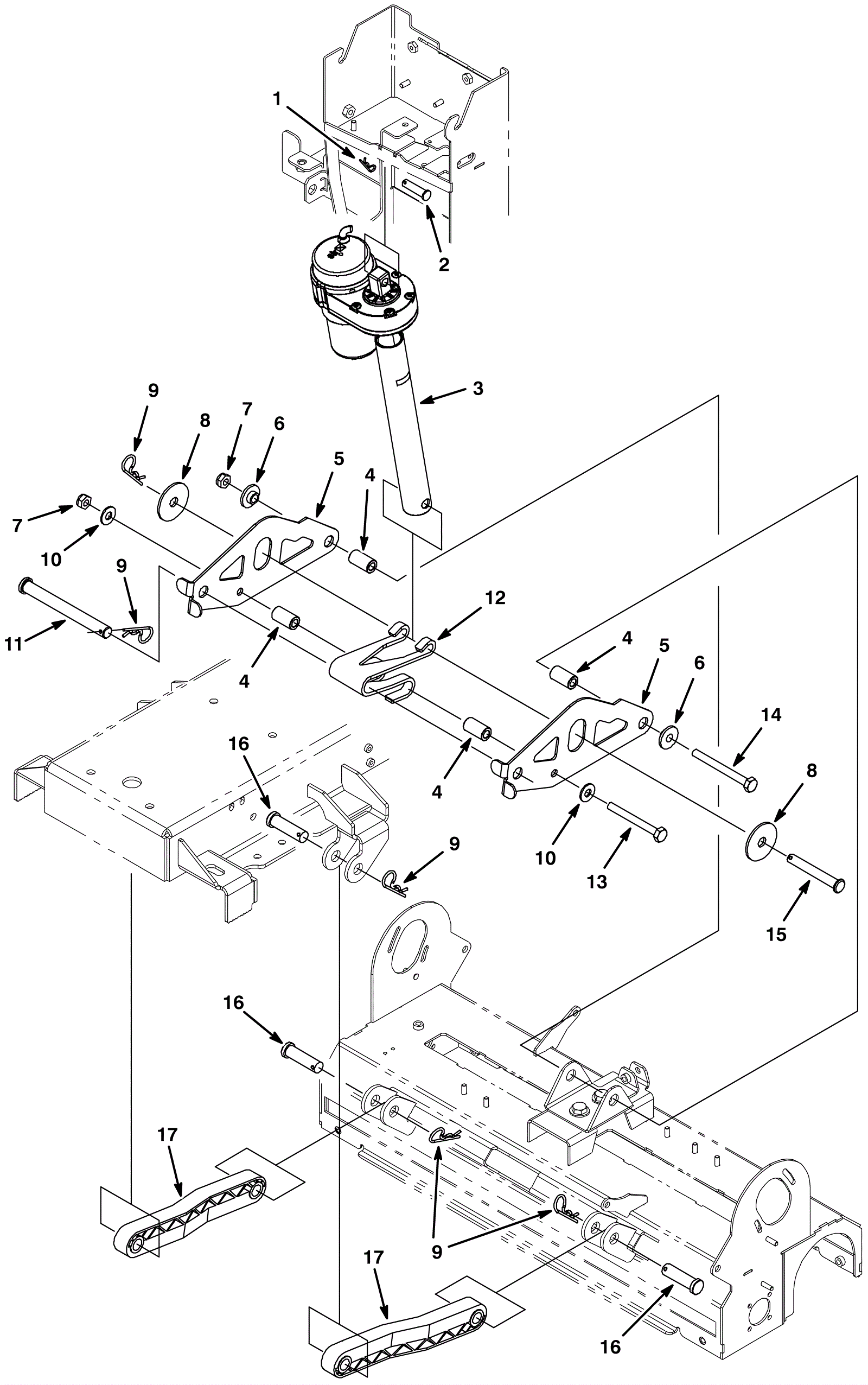

R14 Scrub Head Lift Assembly

#PartDescriptionPriceReqNotesAvailability
1 175-2113 Cotter pin $2.20 1 ships same day
2 275-8112 Clevis pin $6.80 1 ships same day
3 275-9376 24V actuator $350.60 1 usually ships 5-16 days
4 275-8118 P/M sleeve stainless steel $6.80 4 ships same day
5 275-8113 Center arm plate $94.80 2 ships same day
6 175-3287 Flanged bushing $5.10 2 ships same day
7 999-1120 Nut M10-1.5 nylon insert lock stainless steel $3.92 2 ships same day
8 175-2274 Washer .53 steel plated $3.00 2 ships same day
9 175-2106 Cotter hair pin $3.00 6 ships same day
10 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel $0.99 2 ships same day
11 275-8114 Clevis pin $26.30 1 ships same day
12 275-8117 Spring lift $105.50 1 ships same day
13 999-1408 Screw M10-1.5 x 90mm hex head stainless steel $4.29 1 ships same day
14 275-9697 SCREW, HEX, M10 X 1.50 X 100, SS (Tennant Industrial) $4.68 1 usually ships 1-5 days
15 275-8119 Clevis pin $10.70 1 ships same day
16 175-2105 Clevis pin $6.00 4 ships same day
17 175-2102 Scrub head lifting arm $44.50 2 ships same day
