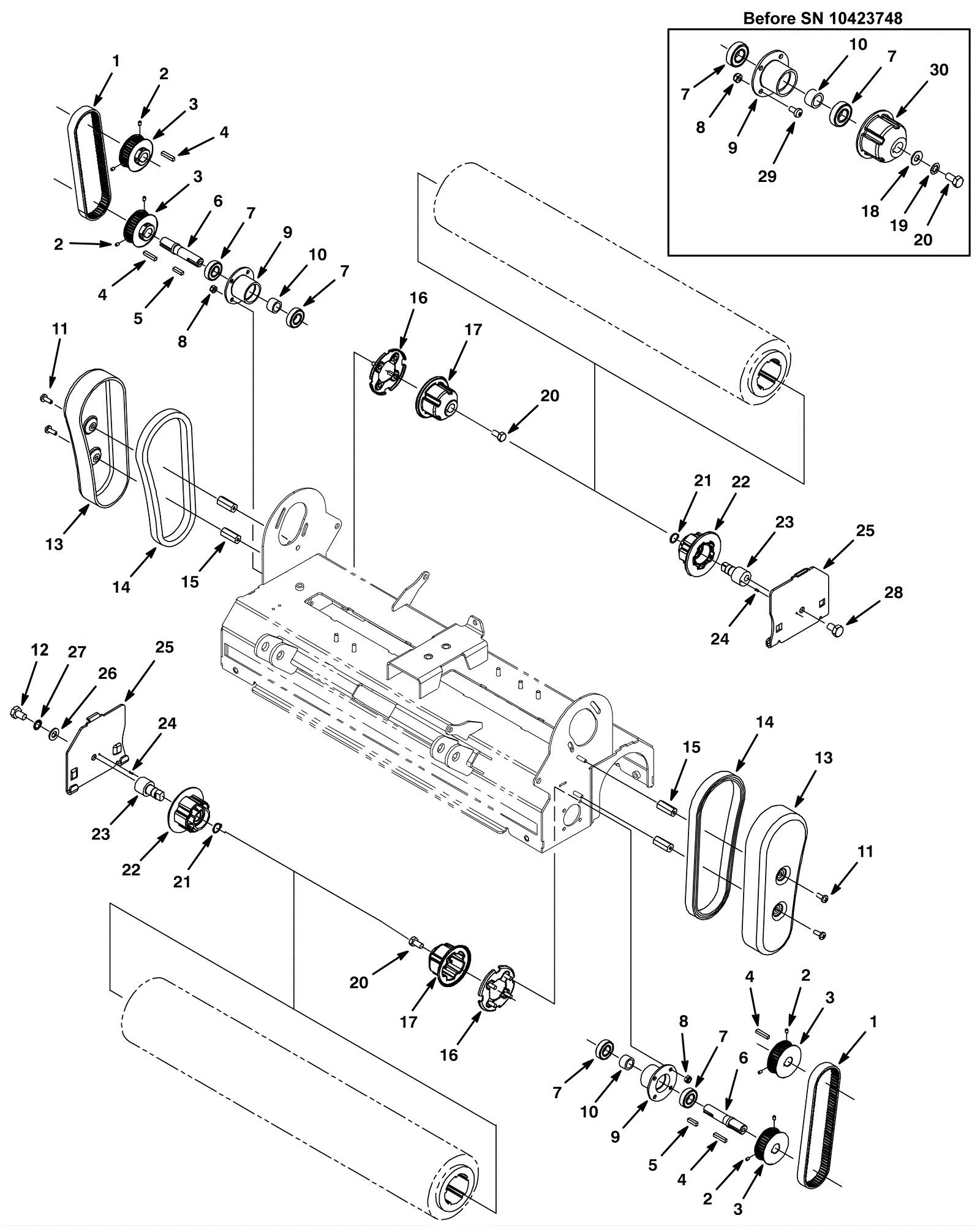

R14 Scrub Head Assembly

#PartDescription ReqNotesAvailability
1 175-8816 Belt 2 usually ships 16-21 days
2 999-0431 Screw 8-32 x 1/4 set socket cup point alloy plain finish 8 usually ships 11-14 days
3 275-9690 34tooth timing sprocket 4 usually ships 16-21 days
4 175-3200 Square keyway 4 usually ships 16-21 days
5 175-8818 Square keyway 2 usually ships 16-21 days
6 275-9691 Drive shaft 2 usually ships 16-21 days
7 175-2471 Ball bearing 4 usually ships 16-21 days
8 999-0497 Nut M6-1 nylon insert lock stainless steel 8 usually ships 11-14 days
9 175-8821 Bearing housing 2 usually ships 16-21 days
10 175-8820 Spacer 2 usually ships 16-21 days
11 999-1257 Screw M6-1 x 16mm pan head Phillips 4 usually ships 11-14 days
12 175-2947 Bolt M10 x 1-1/2 x 16 hex head stainless steel 2 usually ships 16-21 days
13 275-9692 Belt cover 2 usually ships 16-21 days
14 175-8827 Foam gasket 2 usually ships 16-21 days
15 175-8826 Spacer 4 usually ships 16-21 days
16 275-9693 Thread guard 2 (after SN 10423747) usually ships 16-21 days
17 275-9694 Casting brush drive plug 2 (after SN 10423747) usually ships 16-21 days
18 999-0024 Washer 5/16 flat stainless steel 2 (before SN 10423748) usually ships 11-14 days
19 999-1053 Washer 5/16 internal star lock stainless steel 2 (before SN 10423748) usually ships 11-14 days
20 999-0784 Screw M8-1.25 x 16mm hex head stainless steel 2 usually ships 11-14 days
21 175-2472 Retaining ring 2 usually ships 16-21 days
22 175-2478 Brush idler plug 2 usually ships 16-21 days
23 175-2476 Idler plug shaft 2 usually ships 16-21 days
24 175-2477 Roll pin 2 usually ships 16-21 days
25 275-9695 Roller door 2 usually ships 16-21 days
26 999-0120 Washer 3/8 SAE flat 2 usually ships 11-14 days
27 175-4494 Washer M10 2 usually ships 16-21 days
28 175-2947 Bolt M10 x 1-1/2 x 16 hex head stainless steel 2 usually ships 16-21 days
29 999-1041 Screw M6-1 x 12mm pan head phillips stainless steel 8 (before SN 10423748) usually ships 11-14 days
30 275-9696 Drive plug and thread guard 2 (before SN 10423748) usually ships 1-5 days
