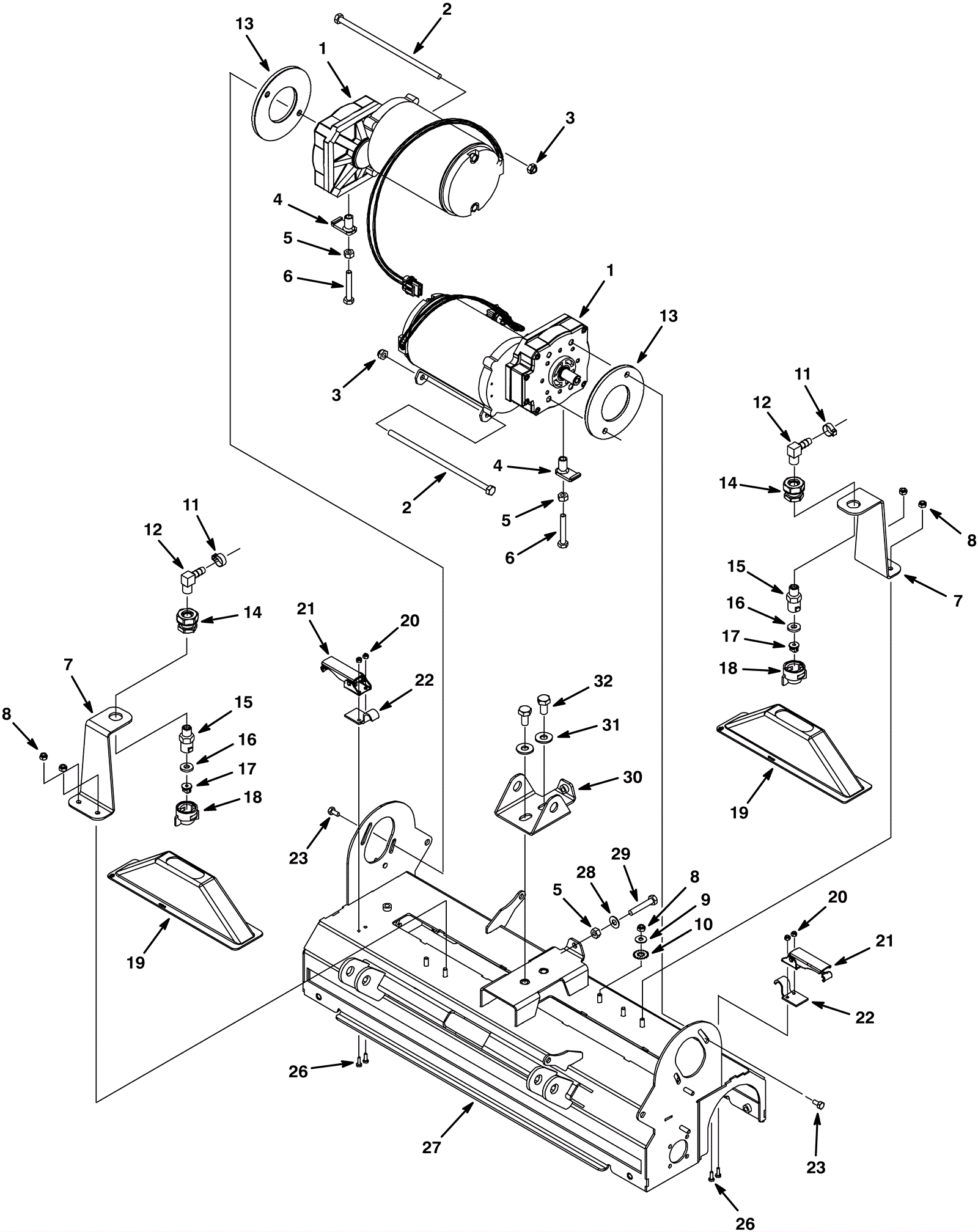

R14 Brush Motor Assembly

#PartDescriptionPriceReqNotesAvailability
1a 275-9681 Motor $1,749.44 2 (includes 1b) usually ships 10-16 days
1b 275-9682 Motor carbon brush $146.08 2 usually ships 1-5 days
2 275-9683 Screw M8-1.25 x 210mm hex head $21.23 2 usually ships 1-5 days
3 999-0496 Nut M8-1.25 nylon insert lock stainless steel $1.34 2 ships same day
4 275-9684 Motor mount lift bracket $108.68 2 usually ships 1-5 days
5 999-1424 Nut M8-1.25 hex stainless steel $1.65 3 ships same day
6 999-1297 Screw M8 x 50mm hex head stainless steel $2.86 2 ships same day
7 275-9685 Spray nozzle mounting bracket $22.77 2 usually ships 1-5 days
8 999-0497 Nut M6-1 nylon insert lock stainless steel $0.99 5 ships same day
9 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 1 ships same day
10 175-2893 Washer 5/16 internal/external locking $4.49 1 usually ships 10-16 days
11 175-6032 Hose clamp $5.50 2 ships same day
12 175-2997 Elbow $14.85 2 usually ships 10-16 days
13 275-9686 Motor brush gasket $8.03 2 usually ships 10-16 days
14 175-4814 Brass strainer fitting $31.90 2 ships same day
15 175-4192 Quick jet body $15.40 2 usually ships 10-16 days
16 175-4193 Quick jet gasket $4.49 2 usually ships 10-16 days
17 175-6330 Spray nozzle $21.01 2 ships same day
18 175-4194 Quick jet cap (green) $7.26 2 ships same day
19 275-9687 Splash shroud $11.11 2 usually ships 10-16 days
20 999-0954 Nut M4-.7 nylon insert lock stainless steel $0.99 4 ships same day
21 175-8831 Latch $33.77 2 usually ships 10-16 days
22 175-8832 Keeper clip $16.94 2 ships same day
23 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish $0.99 4 ships same day
26 999-1040 Screw M3-.5 x 20mm pan head $0.99 4 ships same day
27 275-9688 Housing weldment $1,303.28 1 usually ships 10-16 days
28 999-0024 Washer 5/16 flat stainless steel $1.34 1 usually ships 12-18 days
29 999-1426 Screw M8-1.25 x 45mm hex head stainless steel $3.04 1 ships same day
30 275-9689 Lift bracket $50.71 1 usually ships 1-5 days
31 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel $0.99 2 ships same day
32 999-1170 Bolt M10-1.5 x 20mm hex head stainless steel $3.06 2 ships same day
