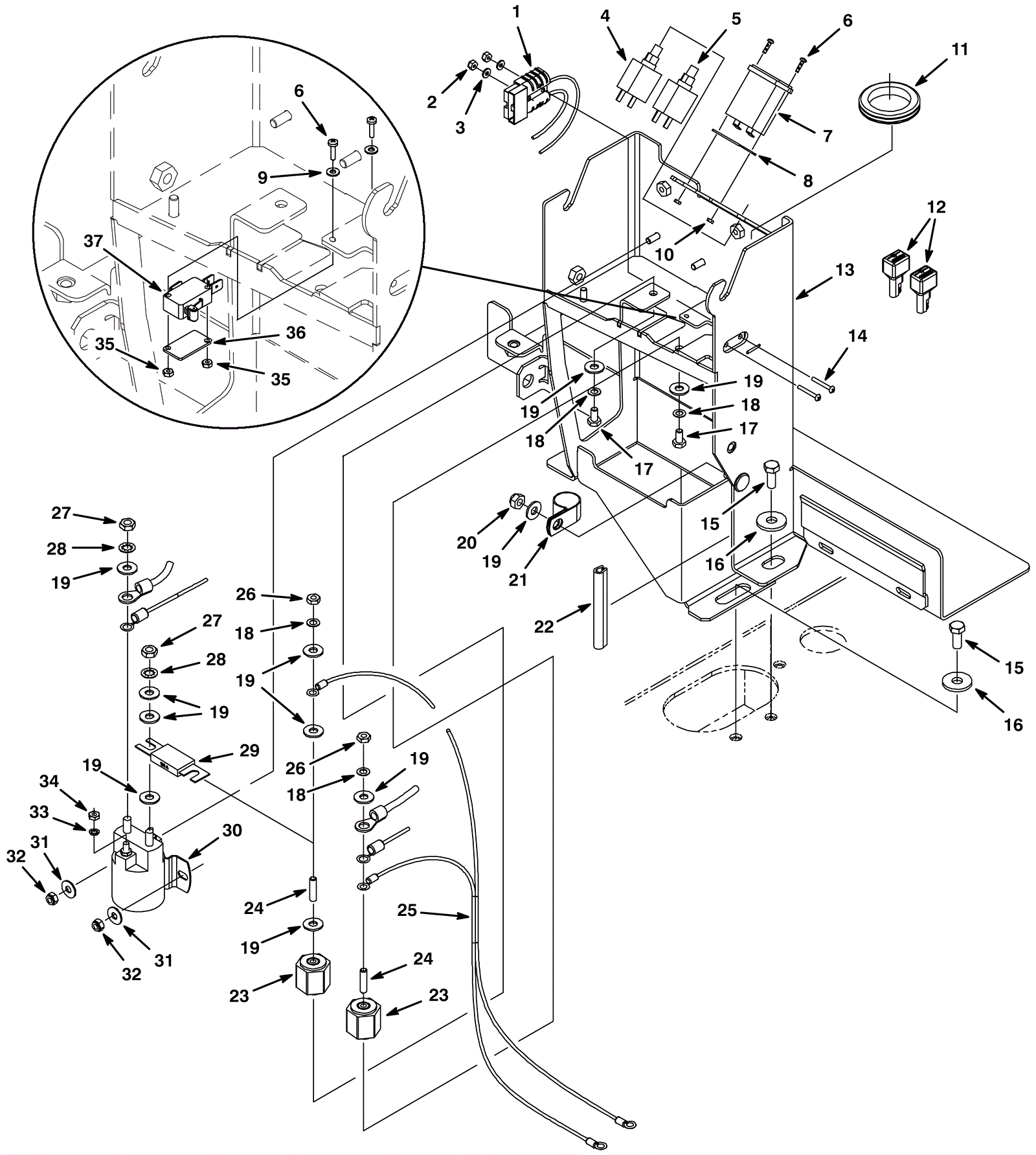

R14 Electrical Assembly

#PartDescriptionPriceReqNotesAvailability
1 275-8222 Charger harness $78.50 1 ships same day
2 175-3224 Nut 6-32 hex lock $3.00 2 usually ships 5-16 days
3 999-0377 Washer 6 SAE flat plain finish $0.99 2 ships same day
4 175-0842 15amp circuit breaker $13.80 1 ships same day
5 175-2557 5amp circuit breaker $13.80 1 ships same day
6 175-4933 Screw M3-.5 x 12mm pan head $2.20 4 usually ships 1-5 days
7a 175-7079 Hour meter $70.40 1 ships same day
7b 991-7137 Hour meter $62.61 1 (NON-OEM) ships same day
8 175-2327 Gasket $3.90 1 usually ships 5-16 days
9 275-9752 Washer .17 flat stainless steel $2.20 2 usually ships 1-5 days
10 999-1161 Nut M3-.5 hex nylock stainless steel $0.99 2 ships same day
11 275-0543 Rubber grommet $5.10 1 usually ships 1-5 days
12 175-2216 Diode plug $11.70 2 ships same day
13 275-4967 Actuator support weldment $670.00 1 usually ships 1-5 days
14 275-8223 SCREW, PAN, PHL, 06-32 X 1.00, G1 (Tennant Industrial) $3.51 2 usually ships 5-16 days
15 999-0499 Bolt M8-1.25 x 20mm hex head full thread stainless steel $1.85 5 ships same day
16 175-7920 Washer M8 flat stainless steel $3.00 5 ships same day
17 175-9950 Bolt 1/4-20 x 1/2 hex head nylon lock $2.20 2 usually ships 1-5 days
18 999-0238 Washer 1/4 internal star lock zinc plated $0.99 4 ships same day
19 999-0123 Washer 1/4 SAE flat zinc plated $0.99 11 ships same day
20 999-0496 Nut M8-1.25 nylon insert lock stainless steel $1.08 1 ships same day
21 175-2260 P clamp $3.60 1 usually ships 5-16 days
22 275-8203 Molding $40.20 1 usually ships 1-5 days
23 175-3226 Insulated stand off $8.50 2 ships same day
24 275-8221 Rod 1/4-20 full thread $3.10 2 ships same day
25 275-8224 Power harness $78.50 1 ships same day
26 999-0181 Nut 1/4-20 hex jam plain finish $0.99 2 ships same day
27 999-0763 Nut 5/16-24 hex jam plain finish $0.99 2 ships same day
28 999-0406 Washer 5/16 internal star lock zinc plated $0.99 2 ships same day
29 275-1438 100amp fuse $52.50 1 ships same day
30a 175-9139 24V 100amp relay $85.50 1 ships same day
30b 991-1226 24V solenoid 4 post (2 large 2 small) (OBSOLETE) $54.00 1 (NON-OEM) usually ships 6-7 days
31 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 2 ships same day
32 999-0497 Nut M6-1 nylon insert lock stainless steel $1.03 2 ships same day
33 999-1026 Washer #10 internal lock stainless steel $0.99 2 ships same day
34 275-8219 Nut 10-32 hex head stainless steel $2.20 2 usually ships 1-5 days
35 999-1161 Nut M3-.5 hex nylock stainless steel $0.99 2 ships same day
36 175-1200 Switch backing plate $11.70 1 ships same day
37 175-1199 Snap switch $19.00 1 ships same day
