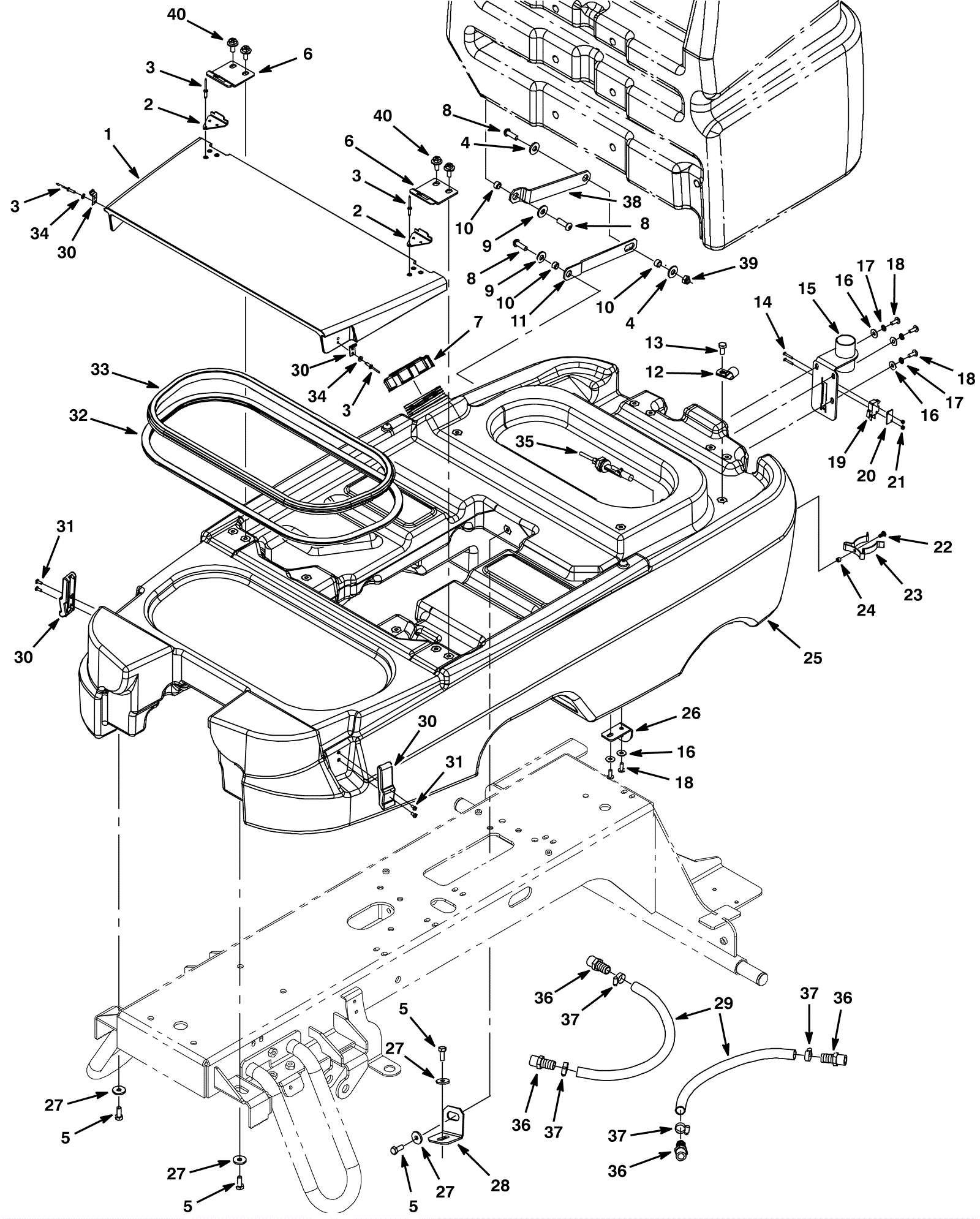

R14 Solution Tank Assembly

#PartDescriptionPriceReqNotesAvailability
1 275-8178 Solution tank cover $134.75 1 ships same day
2 275-8180 Plate $33.88 2 usually ships 1-5 days
3 275-9403 Blind rivet $3.30 10 usually ships 1-5 days
4 999-9097 Washer M8 flat stainless steel $0.99 2 ships same day
5 999-0499 Bolt M8-1.25 x 20mm hex head full thread stainless steel $1.85 4 ships same day
6 275-8179 Catch $24.42 1 usually ships 10-16 days
7 275-8185 Tank cap $75.24 4 ships same day
8 999-0910 Screw M8-1.25 x 25mm button head socket $3.19 4 ships same day
9 275-8068 Washer 1/2 flat steel $4.49 2 ships same day
10 175-2263 Sleeve $4.22 3 usually ships 10-16 days
11 275-8186 Tank arm $19.47 1 usually ships 1-5 days
12 175-0559 P clamp $3.30 2 usually ships 10-16 days
13 999-0784 Screw M8-1.25 x 16mm hex head stainless steel $1.74 2 ships same day
14 999-1040 Screw M3-.5 x 20mm pan head $0.99 2 ships same day
15 275-9663 Vacuum hose bracket $117.04 1 usually ships 1-5 days
16 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 5 ships same day
17 175-4544 Washer M6 locking $4.49 3 ships same day
18 999-1084 Screw M6-1 x 16mm truss head slotted stainless steel $0.99 5 ships same day
19 275-6035 Switch $98.12 1 usually ships 10-16 days
20 175-1200 Switch backing plate $14.19 1 usually ships 10-16 days
21 999-1161 Nut M3-.5 hex nylock stainless steel $0.99 2 ships same day
23 275-9664 Tool clip $16.39 1 usually ships 1-5 days
24 175-4732 Nylon spacer $4.49 1 usually ships 1-5 days
25 275-9665 Solution tank with decal $1,956.46 1 usually ships 1-5 days
26 275-9666 Hose bracket $25.52 1 usually ships 10-16 days
27 175-7920 Washer M8 flat stainless steel $4.49 4 ships same day
28 275-8184 Tank mounting bracket $22.77 1 usually ships 1-5 days
29 275-9667 36 inch PVC hose $44.66 1 usually ships 1-5 days
30a 175-3369 Hood latch $35.09 2 (OEM) usually ships 10-16 days
30b 991-8561 Rubber draw latch with keeper $29.57 2 (NON-OEM) usually ships 14-21 days
31 999-0521 Screw M4-.7 x 12mm pan head phillips zinc $2.31 4 ships same day
32 275-8181 8 foot closed cell bulb seal $74.36 2 ships same day
33 275-8182 8 foot closed cell bulb seal $95.70 5 usually ships 10-16 days
34 999-1215 Washer #6 SAE flat zinc plated $0.99 4 ships same day
35 175-9554 Float switch $85.47 1 ships same day
36 275-4219 FITTING, PLSTC, STR, BM10/PM08 (Tennant Industrial) $9.84 4 usually ships 10-16 days
37 175-6081 Hose clamp $4.84 4 ships same day
40 999-9092 Screw M8-1.25 x 20mm hex head stainless steel $2.79 4 ships same day
38 275-9395 Tank arm $20.46 1 usually ships 1-5 days
39 999-0496 Nut M8-1.25 nylon insert lock stainless steel $1.34 1 ships same day
