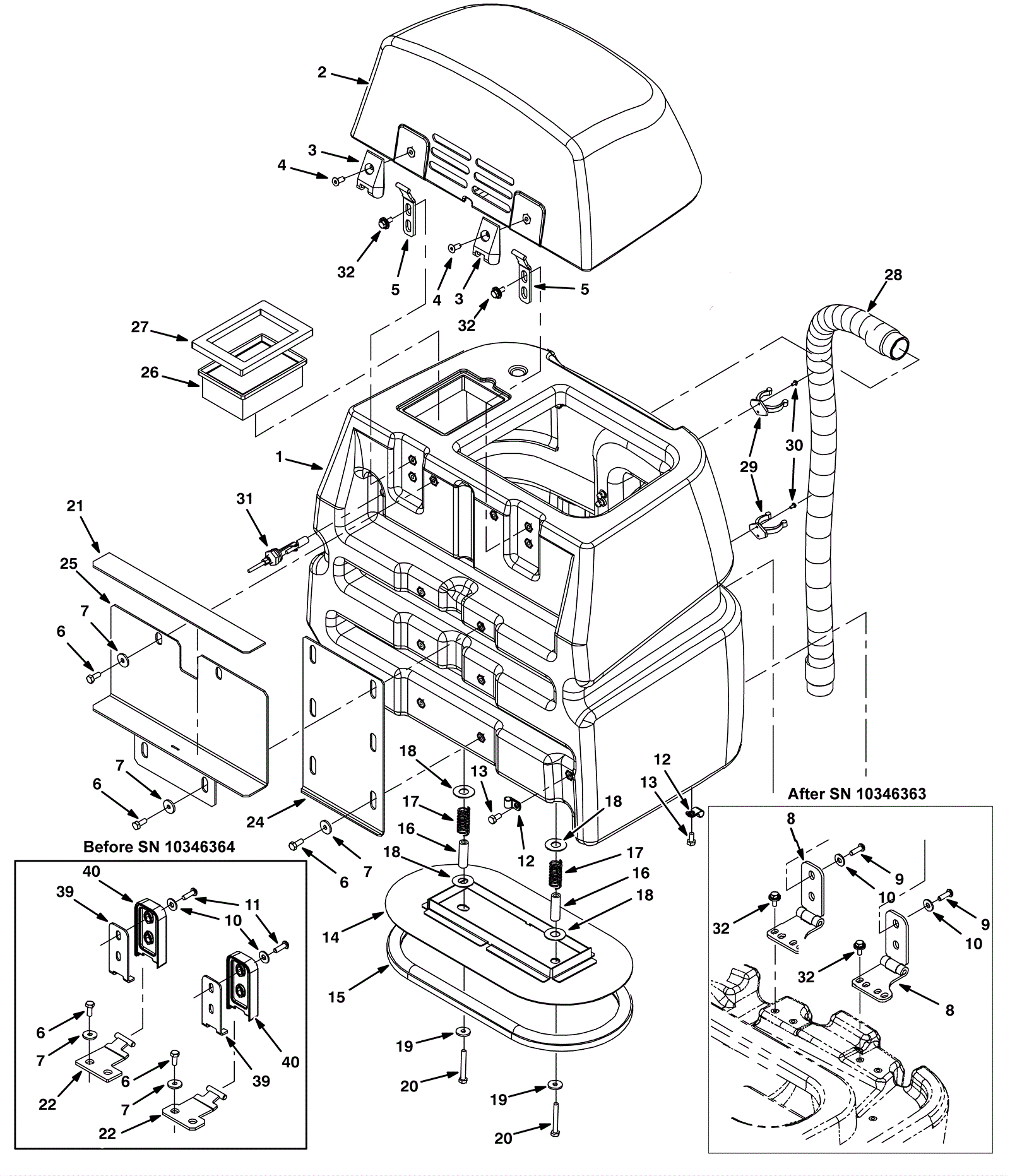

R14 Recovery Tank Assembly

#PartDescriptionPriceReqNotesAvailability
1a 275-9655 Recovery tank with decal (teal) $1,313.07 1 usually ships 1-5 days
1b 275-9656 Recovery tank with decal (gray) $1,343.10 1 usually ships 1-5 days
2 275-9150 Recovery tank lid $449.13 1 usually ships 1-5 days
3 175-2271 Leaf hinge $25.63 2 ships same day
4 999-1324 Screw M8-1.25 x 20mm flat head stainless steel $0.99 2 ships same day
5 275-8152 Hinge $45.10 2 ships same day
6 999-0499 Bolt M8-1.25 x 20mm hex head full thread stainless steel $1.85 8 ships same day
7 175-7920 Washer M8 flat stainless steel $4.09 8 ships same day
8 275-9394 Hinge weldment kit $40.37 2 (after SN 10346363) ships same day
9 175-4927 Screw M8-1.25 x 20mm button head $3.96 4 (after SN 10346363) ships same day
10 275-8068 Washer 1/2 flat steel $4.09 4 ships same day
11 999-0910 Screw M8-1.25 x 25mm button head socket $3.19 4 (before SN 10346364) ships same day
12 175-0559 P clamp $3.04 4 usually ships 10-16 days
13 999-0784 Screw M8-1.25 x 16mm hex head stainless steel $1.74 4 ships same day
14 275-8155 Plate weldment $203.28 1 ships same day
15 275-8156 Seal $113.52 1 ships same day
16 275-8157 Spacer $14.74 2 ships same day
17 275-1215 Compression spring $5.50 2 ships same day
18 175-7361 Washer 11/16 x 1/2 flat stainless steel $6.60 4 ships same day
19 175-7920 Washer M8 flat stainless steel $4.09 2 ships same day
20 999-1155 Screw M8-1.25 x 60mm hex head $1.87 2 ships same day
21 275-8159 Rubber pad $14.96 1 usually ships 10-16 days
22 275-9394 Hinge weldment kit $40.37 2 (before SN 10346364) ships same day
24 275-8162 Tank support plate $45.21 1 ships same day
25 275-9657 Tank support bracket weldment $99.33 1 usually ships 1-5 days
26a 175-2259 Vacuum fan filter $20.68 1 (OEM) ships same day
26b 991-9073 Vacuum fan filter $8.21 1 (NON-OEM) ships same day
27 275-8164 Filter gasket $10.12 1 ships same day
28 275-9658 Vacuum hose (black) $49.94 1 usually ships 10-16 days
29 275-8165 Hose clip $6.05 2 ships same day
30 999-0521 Screw M4-.7 x 12mm pan head phillips zinc $2.31 4 ships same day
31 175-9554 Float switch $79.86 1 ships same day
32 275-4736 Screw M8-1.25 x 20mm hex washer head stainless steel SEMS $4.09 8 ships same day
39 275-9394 Hinge weldment kit $40.37 2 (before SN 10346364) ships same day
40 275-9394 Hinge weldment kit $40.37 2 (before SN 10346364) ships same day
