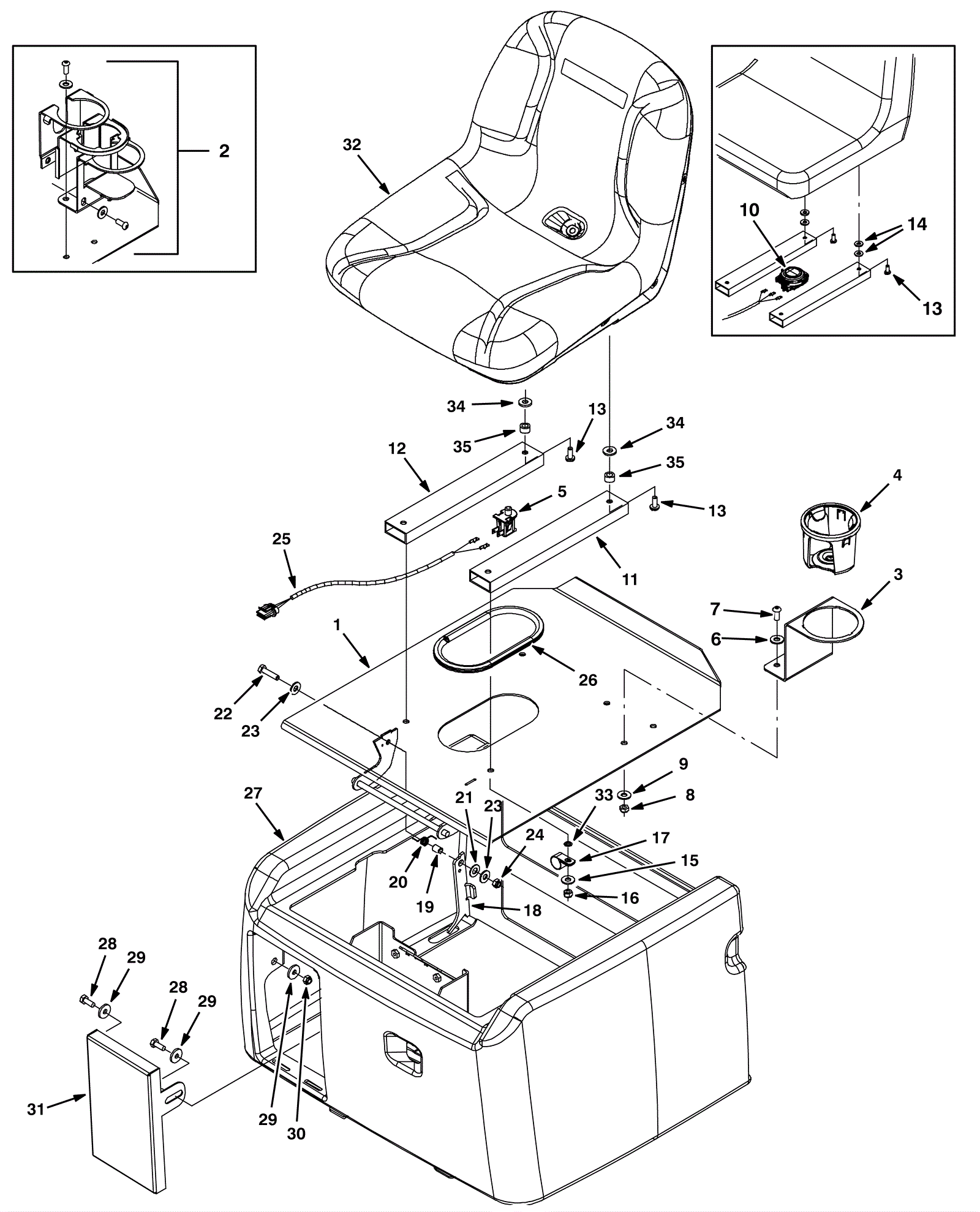

R14 Seat Assembly

#PartDescriptionPriceReqNotesAvailability
1 275-8063 Seat plate with decal $312.40 1 usually ships 1-5 days
2 275-9335 Cup holder assembly $81.18 1 (before SN 10382116) usually ships 1-5 days
3 275-9337 Cup holder bracket (OBSOLETE) $16.50 1 (after SN 10382115) usually ships 1-5 days
4 275-9336 Cup holder (black) $11.66 1 (after SN 10382215) ships same day
5 275-9280 Seat switch $11.11 1 (after SN 10400496) usually ships 10-13 days
6 275-8068 Washer 1/2 flat steel $4.49 2 ships same day
7 175-4927 Screw M8-1.25 x 20mm button head $4.36 2 ships same day
8 999-0496 Nut M8-1.25 nylon insert lock stainless steel $1.34 2 ships same day
9 999-9097 Washer M8 flat stainless steel $0.99 2 ships same day
10 175-0596 Seat switch $25.52 1 (before SN 10400497) ships same day
11 275-8069 11 1/2 inch seat adjuster rail (OBSOLETE)- SEE NOTE $60.50 1 usually ships 10-13 days
12 275-8070 11 1/2 inch seat adjuster rail with latch $47.32 1 ships same day
13 999-0399 Screw 5/16-18 x 3/4 pan head phillips zinc plated $0.99 4 ships same day
14 175-3176 Washer 3/8 flat steel plated $3.30 8 (before SN 10400497) ships same day
15 999-0024 Washer 5/16 flat stainless steel $1.34 4 ships same day
16 999-0278 Nut 5/16-18 nylon insert lock jam zinc plated $0.99 4 ships same day
17 175-6768 P clamp (Tennant Industrial) $5.67 1 usually ships 1-5 days
18 275-8071 Seat stop plate $46.64 1 ships same day
19 275-8072 P/M sleeve stainless steel $6.49 1 usually ships 10-13 days
20 275-8073 Torsion spring (Tennant Industrial) $13.84 1 ships same day
21 275-8074 Washer .44 flat nylon $4.49 1 usually ships 1-5 days
22 999-0786 Screw M8-1.25 x 35mm hex head stainless steel $1.12 1 ships same day
23 999-9097 Washer M8 flat stainless steel $0.99 2 ships same day
24 999-0496 Nut M8-1.25 nylon insert lock stainless steel $1.34 1 ships same day
25 275-9329 Seat harness $44.55 1 ships same day
26 275-8075 Trim $39.30 1 ships same day
27 275-9651 Battery box trim cover $594.00 1 usually ships 1-5 days
28 999-0499 Bolt M8-1.25 x 20mm hex head full thread stainless steel $1.85 2 ships same day
29 175-7920 Washer M8 flat stainless steel $4.49 3 ships same day
30 999-0496 Nut M8-1.25 nylon insert lock stainless steel $1.34 1 ships same day
31 275-9652 Fill bracket $52.03 1 usually ships 1-5 days
32a N/A Not available Call for price 1 (Seat) (Model V-2505) (from SN 10400497- SN 10611439) (has been replaced with 32b) usually ships 3-26 days
32b 275-9328 Seat kit (includes screw and spacer) $268.18 1 (before SN 10400497 and after SN 10611439) ships same day
33 175-2893 Washer 5/16 internal/external locking $4.49 1 usually ships 10-13 days
34 175-3176 Washer 3/8 flat steel plated $3.30 4 (after SN 10400496) ships same day
35 275-9333 Spacer $5.15 4 (after SN 10400496) usually ships 1-5 days
