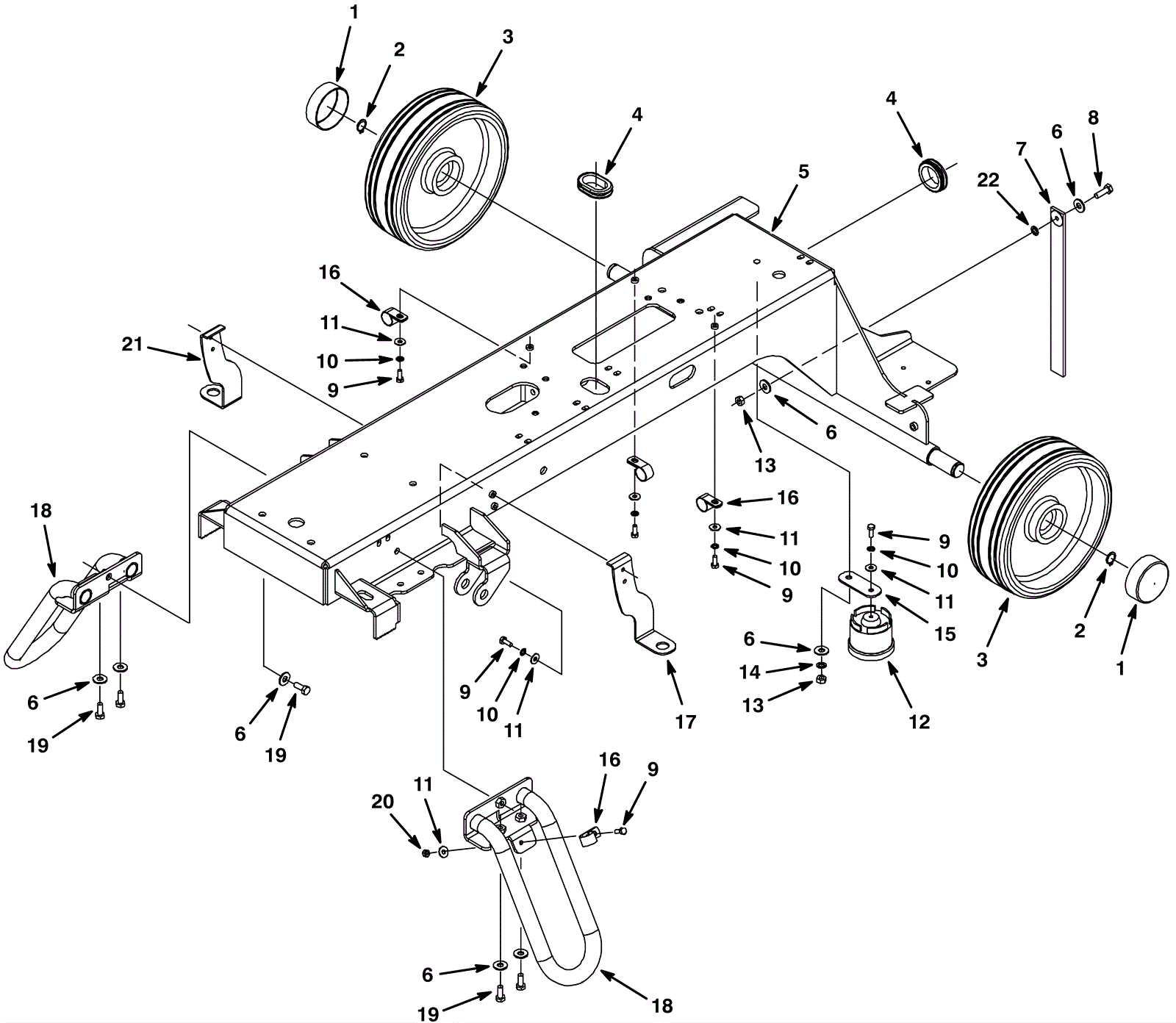

R14 Main Frame Assembly

#PartDescriptionPriceReqNotesAvailability
1 275-8060 Cap $6.70 2 ships same day
2 175-3294 Retaining ring $2.20 2 ships same day
3 275-8059 Tire assembly $186.80 2 ships same day
4 175-2366 Rubber grommet $5.30 2 ships same day
5 275-9259 Frame weldment $1,596.90 1 usually ships 1-5 days
6 999-9097 Washer M8 flat stainless steel $0.99 9 ships same day
7 275-8058 Static strap $89.60 1 ships same day
8 999-0501 Bolt M8-1.25 x 25mm hex head full thread stainless steel $2.64 1 ships same day
9 999-1312 Screw M6-1 x 20mm hex head stainless steel $0.99 9 ships same day
10 175-4544 Washer M6 locking $4.20 8 ships same day
11 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 9 ships same day
12 275-8062 Horn $133.20 1 usually ships 5-16 days
13 999-0496 Nut M8-1.25 nylon insert lock stainless steel $1.08 2 ships same day
14 999-1053 Washer 5/16 internal star lock stainless steel $0.99 1 ships same day
15 275-9260 Horn mounting plate $7.50 1 usually ships 1-5 days
16 175-3179 P clamp $3.60 4 usually ships 5-16 days
17 275-9649 Left hand spray jet bracket $38.10 1 usually ships 1-5 days
18 275-9259 Frame weldment $1,596.90 2 (frame stabilizer weldment) usually ships 1-5 days
19 999-0499 Bolt M8-1.25 x 20mm hex head full thread stainless steel $1.85 6 ships same day
20 999-0497 Nut M6-1 nylon insert lock stainless steel $1.03 1 ships same day
21 275-9650 Right hand spray jet bracket $37.90 1 usually ships 1-5 days
22 175-2893 Washer 5/16 internal/external locking $3.00 1 usually ships 5-16 days
