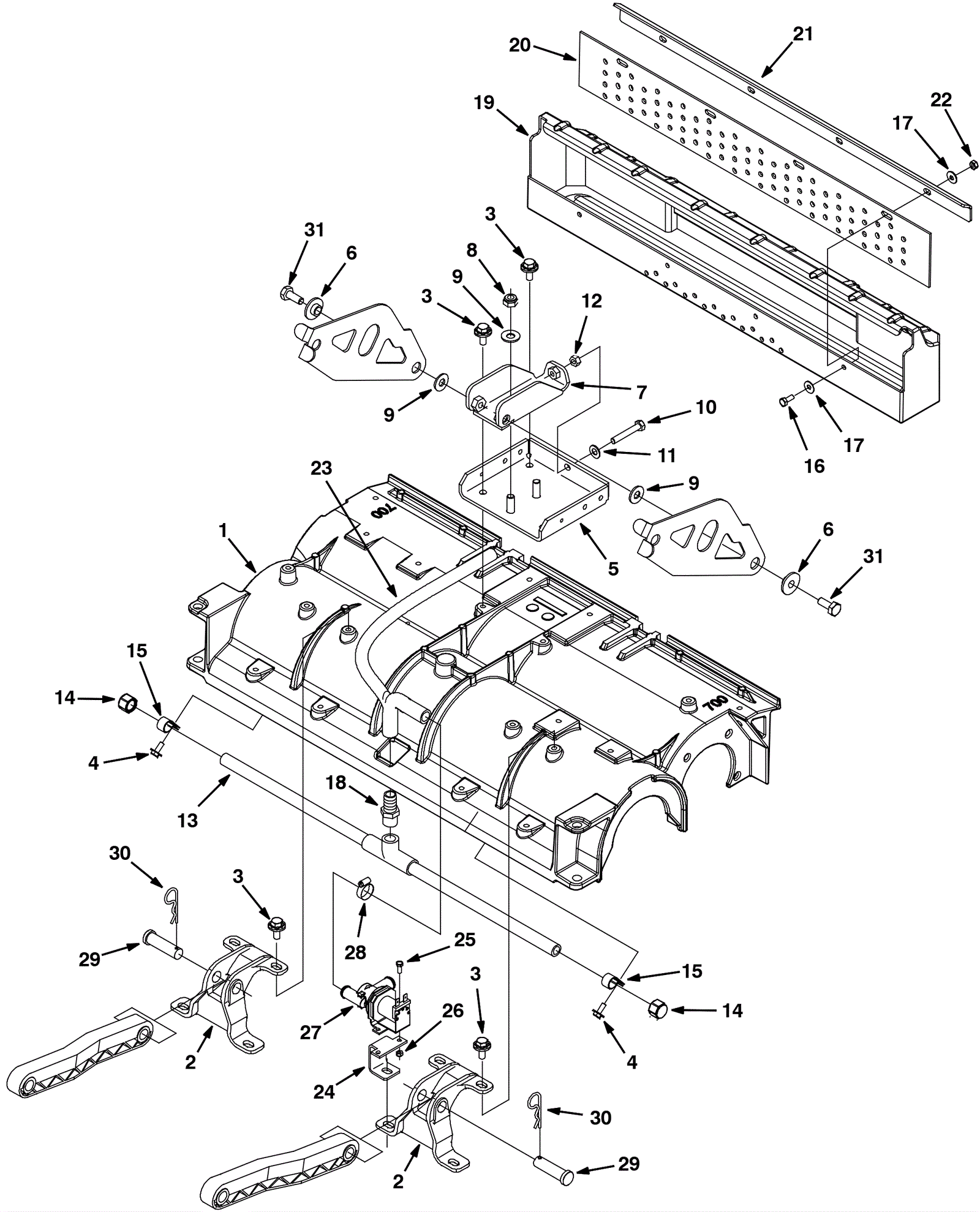

Scrub Head Assembly - Cylindrical

#PartDescription ReqNotesAvailability
1a 275-9365 28 inch (700mm) scrub head housing 1
1b 275-9377 32 inch (800mm) scrub head housing 1
2 275-9366 Linkage mount 2
3 275-4736 Screw M8-1.25 x 20mm hex washer head stainless steel SEMS 12
4 999-1383 Screw M6-1 x 16mm hex head stainless steel 2
5 275-9367 Lifting channel 1
6 175-3287 Flanged bushing 2
7 275-9368 Upper lifting bracket 1
8 999-1120 Nut M10-1.5 nylon insert lock stainless steel 2
9 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel 4
10 999-1692 Screw M8-1.25 x 50mm hex stainless steel 1
11 999-0024 Washer 5/16 flat stainless steel 1
12 999-1424 Nut M8-1.25 hex stainless steel 1
13a 275-9369 Spray tube assembly (28 inch) 1
13b 275-9378 Spray tube assembly (32 inch) 1
14 275-1505 Cap fitting 2
15 275-0559 P clamp 2
16 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish 4
17 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel 8
18 275-4219 FITTING, PLSTC, STR, BM10/PM08 (Tennant Industrial) 1
19a 275-9370 Debris hopper (28 inch) 1
19b 275-1511 Debris hopper (32 inch) 1
20a 275-9371 Debris skirt (28 inch) 1
20b 275-1510 Debris skirt (32 inch) 1
21a 275-9372 Debris skirt retainer (28 inch) 1
21b 275-1509 Debris skirt retainer (32 inch) 1
22 999-1308 Nut M6-1 hex stainless steel 5
23 275-9373 Molded hose 1
24 275-9374 Valve mounting bracket 1
25 999-1220 Screw M5-.8 x 12mm hex head stainless steel 2
26 999-0740 Nut M5-.8 hex stainless steel 2
27a 275-1526 24V solution solenoid valve 1
27b 991-9173 24V solenoid valve (NON-OEM)
28 175-6081 Hose clamp 3
29 175-2105 Clevis pin 2
30 175-2106 Cotter hair pin 2
31 999-1372 Bolt M10-1.5 x 25mm hex head stainless steel 2
