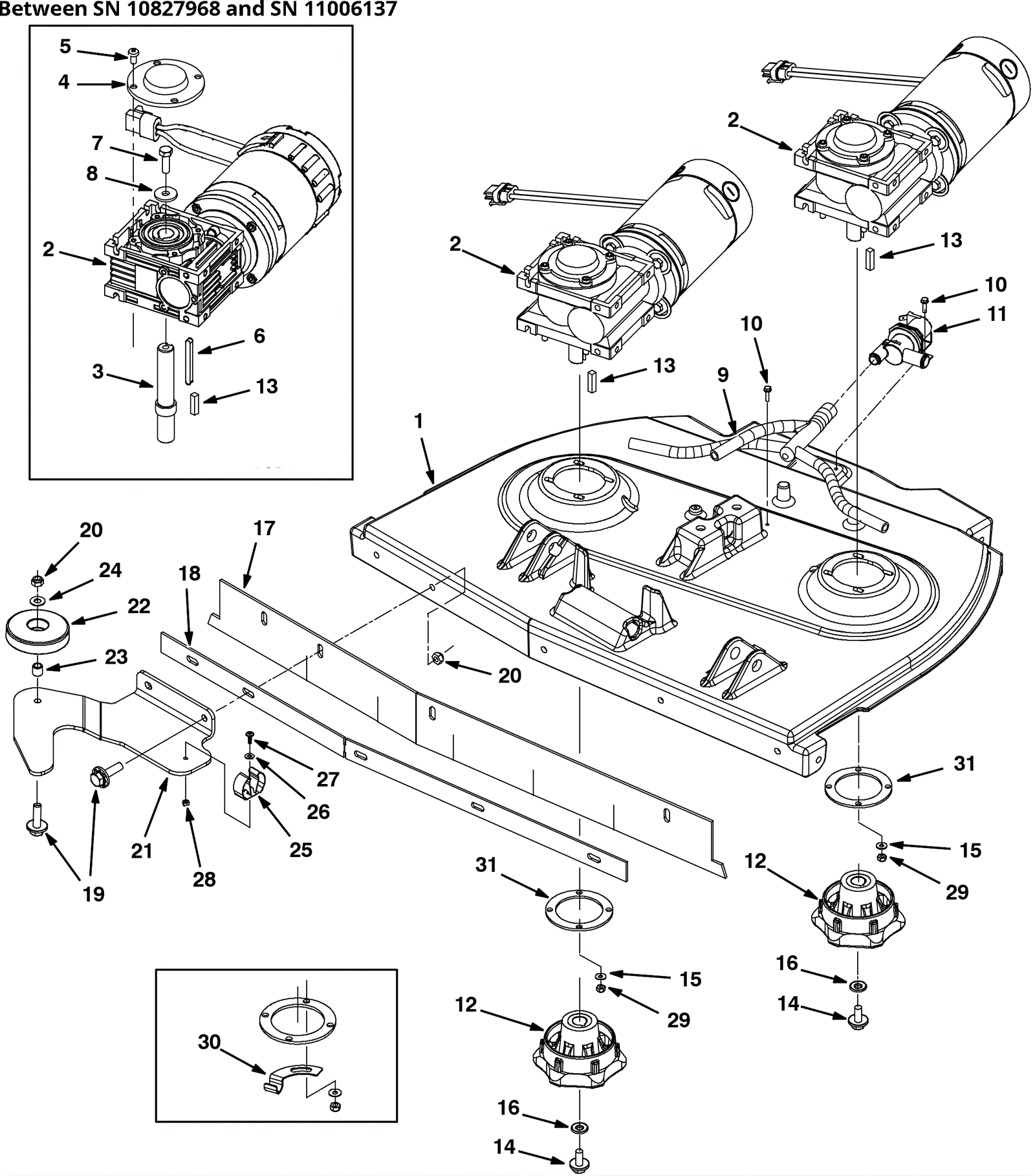

| # | Part | Description |
Req | Notes | Availability |
|---|
1a |
275-8120
|
26 inch scrub head |
1 |
|
|
1b |
275-8133
|
32 inch scrub head |
1 |
|
|
2a |
275-6053
|
24V brush motor and gear box assembly |
2 |
(includes 2b-2d, 3a, 4a, 5-9) (after SN 11006138 and SN 30122411) |
|
2b |
275-8123
|
Carbon brush kit |
1 |
(SN from 10827968-11006137 and 30063604-30122410) |
|
2c |
275-8124
|
Safety hook |
1 |
(SN from 10827968-11006137 and 30063604-30122410) |
|
2d |
275-8125
|
Electric motor brush cover |
1 |
(SN from 10827968-11006137 and 30063604-30122410) |
|
3a |
375-7724
|
Brush drive shaft (OBSOLETE) |
1 |
(SN from 10827968-11006137 and 30063604-30122410) |
|
3b |
275-8127
|
Brush drive shaft |
2 |
(before SN 10409228) |
|
4a |
375-7725
|
Motor cap (OBSOLETE) |
1 |
(SN from 10827968-11006137 and 30063604-30122410) |
|
4b |
275-8121
|
Motor cap (OBSOLETE) |
2 |
(before SN 10409228) |
|
5 |
999-1041
|
Screw M6-1 x 12mm pan head phillips stainless steel |
4 |
|
|
6 |
275-8128
|
Square keyway |
2 |
|
|
7 |
999-0499
|
Bolt M8-1.25 x 20mm hex head full thread stainless steel |
8 |
(SN from 10827968-11006137 and 30063604-30122410) |
|
8 |
175-7920
|
Washer M8 flat stainless steel |
1 |
(SN from 10827968-11006137 and 30063604-30122410) |
|
9a |
275-8131
|
Solution manifold |
1 |
(26 inch) |
|
9b |
275-8135
|
Solution manifold |
1 |
(32 inch) |
|
10 |
999-9106
|
Screw M4-.7 x 16mm hex head stainless steel |
3 |
|
|
11a |
275-1526
|
24V solution solenoid valve |
1 |
|
|
11b |
991-9173
|
24V solenoid valve |
|
(NON-OEM) |
|
12 |
175-7021
|
Brush drive hub |
2 |
|
|
13 |
175-5356
|
Square keyway |
2 |
|
|
14 |
275-4736
|
Screw M8-1.25 x 20mm hex washer head stainless steel SEMS |
2 |
|
|
15 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
2 |
(ec-H2O model) |
|
16 |
175-7920
|
Washer M8 flat stainless steel |
2 |
|
|
17a |
275-8047
|
26 inch spray skirt |
1 |
|
|
17b |
275-8048
|
32 inch spray skirt |
1 |
|
|
17c |
991-9236
|
SKIRT,CI NEO.33.51 inch LONG |
1 |
(NON-OEM) |
|
18a |
275-8129
|
26 inch skirt retainer |
1 |
|
|
18b |
275-8134
|
32 inch skirt retainer |
1 |
|
|
19 |
999-1653
|
Screw M8-1.25 x 30mm hex head stainless steel |
6 |
|
|
20 |
999-0496
|
Nut M8-1.25 nylon insert lock stainless steel |
6 |
|
|
21a |
275-9363
|
Guide wheel bracket |
1 |
(26 inch) |
|
21b |
275-9364
|
Guide wheel bracket |
1 |
(32 inch) |
|
22a |
175-7919
|
Guide wheel |
1 |
(OEM) |
|
22b |
991-8570
|
Bumper wheel |
1 |
(NON-OEM) |
|
23 |
175-2249
|
Sleeve |
1 |
|
|
24 |
999-0024
|
Washer 5/16 flat stainless steel |
1 |
|
|
25 |
175-7938
|
Spring clip (black) |
1 |
(ec-H2O model) |
|
26 |
999-0393
|
Washer 3/16 flat aluminum |
1 |
(ec-H2O model) |
|
27 |
999-0521
|
Screw M4-.7 x 12mm pan head phillips zinc |
1 |
(ec-H2O model) |
|
28 |
999-0954
|
Nut M4-.7 nylon insert lock stainless steel |
1 |
(ec-H2O model) |
|
29 |
999-0497
|
Nut M6-1 nylon insert lock stainless steel |
2 |
|
|
30 |
275-9362
|
Hose support bracket |
2 |
|
|
31 |
275-8126
|
Support plate |
1 |
|
|
