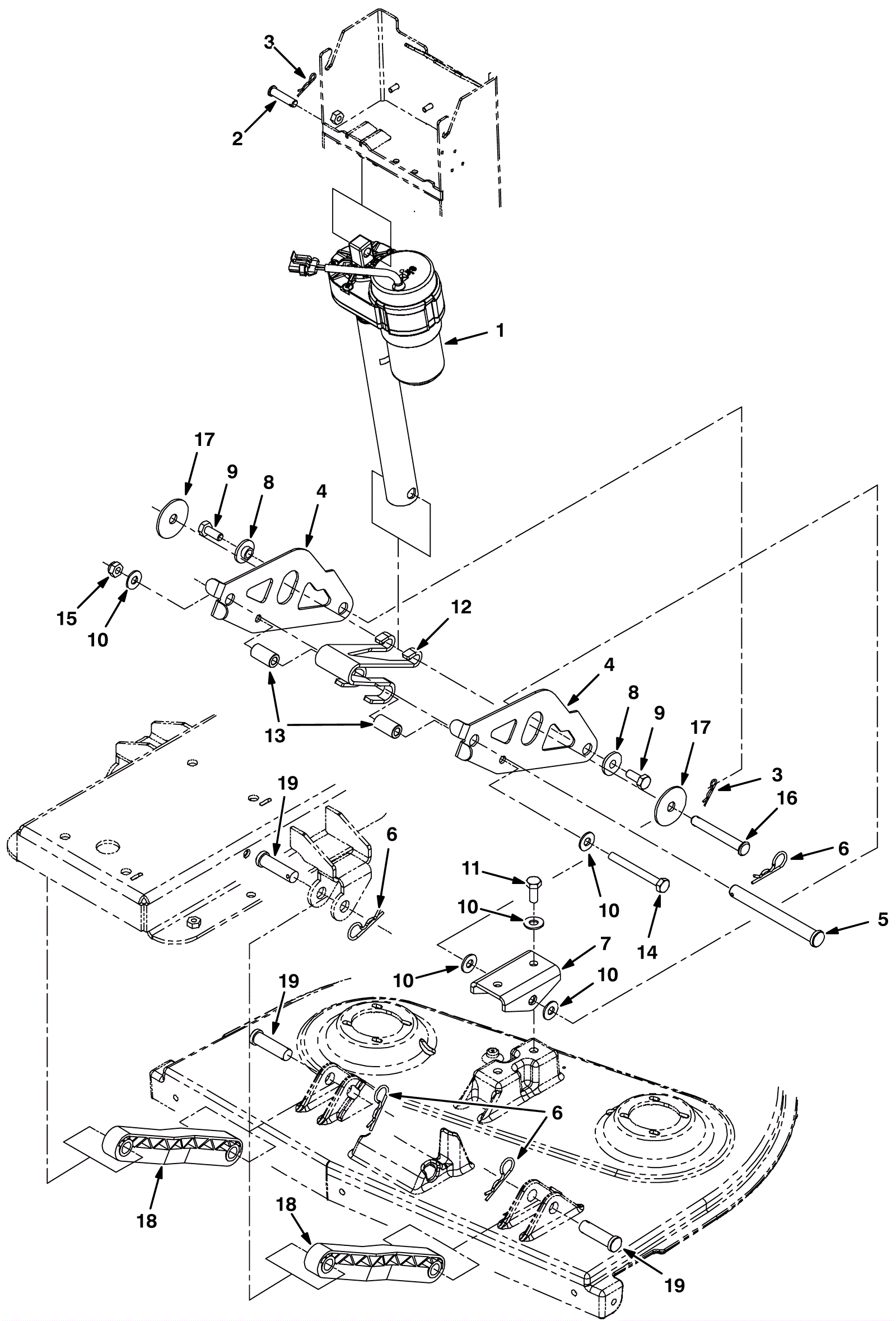

| # | Part | Description |
Req | Notes | Availability |
|---|
1a |
275-9376
|
24V actuator |
1 |
|
|
1b |
991-1915
|
24V actuator |
1 |
(NON-OEM) |
|
2 |
275-8112
|
Clevis pin |
1 |
|
|
3 |
175-2113
|
Cotter pin |
2 |
|
|
4 |
275-8113
|
Center arm plate |
2 |
|
|
5 |
275-8114
|
Clevis pin |
1 |
|
|
6 |
175-2106
|
Cotter hair pin |
5 |
|
|
7 |
275-8115
|
Lifting bracket |
1 |
|
|
8 |
175-3287
|
Flanged bushing |
2 |
|
|
9 |
999-1372
|
Bolt M10-1.5 x 25mm hex head stainless steel |
2 |
|
|
10 |
999-0355
|
Washer 3/8 x 7/8 SAE flat stainless steel |
6 |
|
|
11 |
999-1372
|
Bolt M10-1.5 x 25mm hex head stainless steel |
2 |
|
|
12 |
275-8117
|
Spring lift |
1 |
|
|
13 |
275-8118
|
P/M sleeve stainless steel |
2 |
|
|
14 |
999-1408
|
Screw M10-1.5 x 90mm hex head stainless steel |
1 |
|
|
15 |
999-1120
|
Nut M10-1.5 nylon insert lock stainless steel |
1 |
|
|
16 |
275-8119
|
Clevis pin |
1 |
|
|
17 |
175-2274
|
Washer .53 steel plated |
2 |
|
|
18 |
175-2102
|
Scrub head lifting arm |
2 |
|
|
19 |
175-2105
|
Clevis pin |
4 |
|
|
