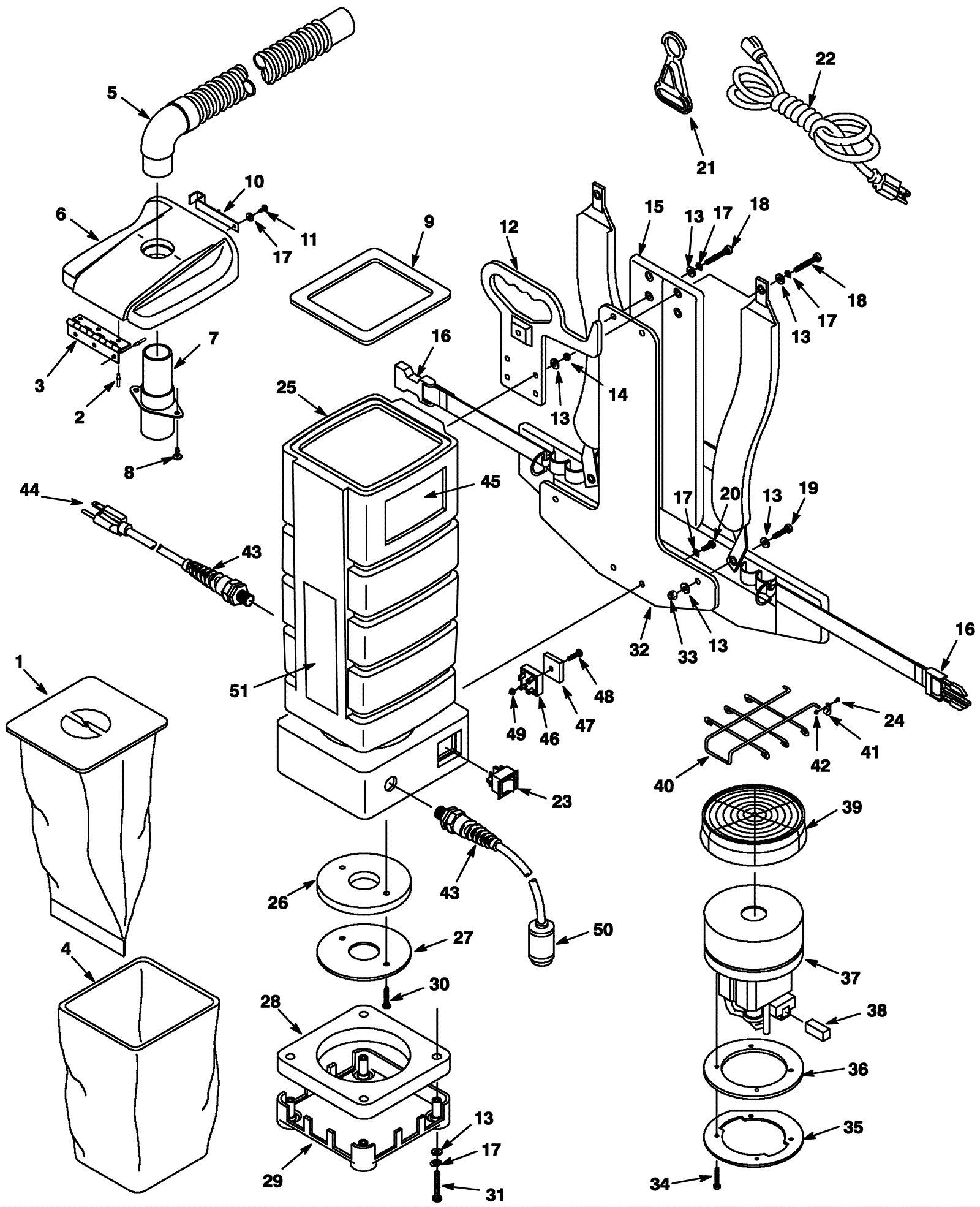

PV-500 Entire Assembly

#PartDescriptionPriceReqNotesAvailability
1a 175-0221 Cloth filter bag (OBSOLETE) $55.11 1 usually ships 10-16 days
1b 175-0222 Enviro-filter paper bags (pkg of 10) $7.39 1 ships same day
1c 991-9020 Enviro-generic paper bags (pkg of 10) $13.99 1 ships same day
2 175-4396 Pop rivet $5.02 6 usually ships 1-5 days
3 175-0223 Cover hinge $7.81 1 usually ships 10-16 days
4 175-0224 Secondary filter bag (OBSOLETE) $17.16 1 usually ships 10-16 days
5 175-0225 Hose 1 1/2 x 50 inch with 90 degree cuff $103.73 1 ships same day
6a 175-0234 Cover (gray) (OBSOLETE) $102.85 1 usually ships 1-5 days
6b 175-4397 Cover (teal) $149.05 1 usually ships 1-5 days
6c 275-4926 Cover (aqua) (OBSOLETE) $120.34 1 usually ships 1-5 days
7 175-0050 Hose adapter $10.89 1 ships same day
8 999-0999 Screw 10-24 x 3/8 truss head phillips stainless steel $1.43 2 ships same day
9 175-0227 Cover gasket $14.52 1 usually ships 10-16 days
10 175-0125 Lid latch $9.13 1 usually ships 10-16 days
11 175-4398 Screw M5-.8 x 10mm phillips truss head zinc $3.83 1 usually ships 10-16 days
12 175-0229 Handle $53.35 1 usually ships 10-16 days
13 999-0393 Washer 3/16 flat aluminum $0.99 16 ships same day
14 175-0230 Bushing $9.02 2 usually ships 10-16 days
15 175-0231 Harness assembly (OBSOLETE) $259.60 1 usually ships 10-16 days
16 175-0232 Belt buckle $18.92 1 usually ships 10-16 days
17 999-0053 Washer #10 split lock plain finish $0.99 11 ships same day
18 999-1031 Screw 10-24 x 1 truss head phillips stainless steel $0.99 4 ships same day
19 999-1028 Screw 10-24 x 3/4 truss head phillips stainless steel $1.69 2 ships same day
20 999-0454 Screw 10-24 x 1/2 truss head phillips zinc plated $0.99 2 ships same day
21 175-0236 Cord belt clip $10.23 1 ships same day
22a 275-2294 16/3 power cord 75 foot $103.40 1 (OEM) ships same day
22b 991-5006 16/3 replacement power cord 50 foot (yellow) $37.50 1 (NON-OEM) ships same day
23 175-0006 Rocker switch $15.62 1 usually ships 10-16 days
24 175-0238 Screw 8-32 x 1/2 (OBSOLETE) $0.99 2 usually ships 1-5 days
25a 175-0240 Housing (gray) (OBSOLETE) $156.86 1 usually ships 1-5 days
25b 175-4399 Housing (teal) $190.52 1 usually ships 1-5 days
25c 275-4927 Housing (aqua) (OBSOLETE) $213.51 1 usually ships 1-5 days
26 175-0241 Insulation foam (OBSOLETE) $5.50 1 usually ships 10-16 days
27 175-0242 Baffle plate $45.21 1 usually ships 1-5 days
28 175-0243 Vacuum motor filter (OBSOLETE) $6.60 1 usually ships 10-16 days
29 175-0244 Base plate $71.83 1 usually ships 10-16 days
30 999-1212 Screw 10-32 x 1/2 hex head stainless steel $0.99 2 ships same day
31 999-1195 Screw 10-24 x 1 1/4 round head phillips zinc plated $0.99 4 ships same day
32 175-0246 Back plate (OBSOLETE) $69.85 1 usually ships 10-16 days
33 999-0442 Nut 10-24 nylon insert lock stainless steel $1.76 2 ships same day
34 999-1217 Screw 10-24 x 1 3/4 indented hex head unslotted zinc $0.99 4 ships same day
35 175-0248 Ring with tab $517.00 1 usually ships 1-5 days
36 175-0249 Vacuum motor gasket $9.90 1 usually ships 10-16 days
37 175-0252 120V vacuum motor $380.93 1 (includes 38) ships same day
38 275-5835 Carbon brush (pkg of 2) $32.01 1 usually ships 10-16 days
39 991-5119 Vacuum motor filter $1.35 1 ships same day
40 175-0254 Wire bag support $40.26 1 usually ships 1-5 days
41 175-0255 Clamp $2.77 2 usually ships 1-5 days
42 999-0151 Nut 8-32 nylon insert lock zinc plated $1.10 2 ships same day
43 175-0001 Strain relief $12.65 2 ships same day
44a 175-1522 16/3 pigtail cord 18 inch $48.18 1 usually ships 10-16 days
44b 991-5002 16/3 extension cord 50 foot (yellow) $48.73 1 ships same day
45 175-0147 Tennant decal $7.59 2 usually ships 1-5 days
46 175-0261 Rectifier kit $225.94 1 usually ships 1-5 days
47 175-0262 Heat sink plate $25.63 1 usually ships 1-5 days
48 999-1411 Screw 10-24 x 1 round head slotted nylon $0.99 1 ships same day
49 999-1120 Nut M10-1.5 nylon insert lock stainless steel $3.92 1 ships same day
50 175-0260 Pigtail with twistlock $208.23 1 usually ships 1-5 days
51 275-5247 Explosion/fire/shock warning decal $9.68 1 usually ships 1-5 days
