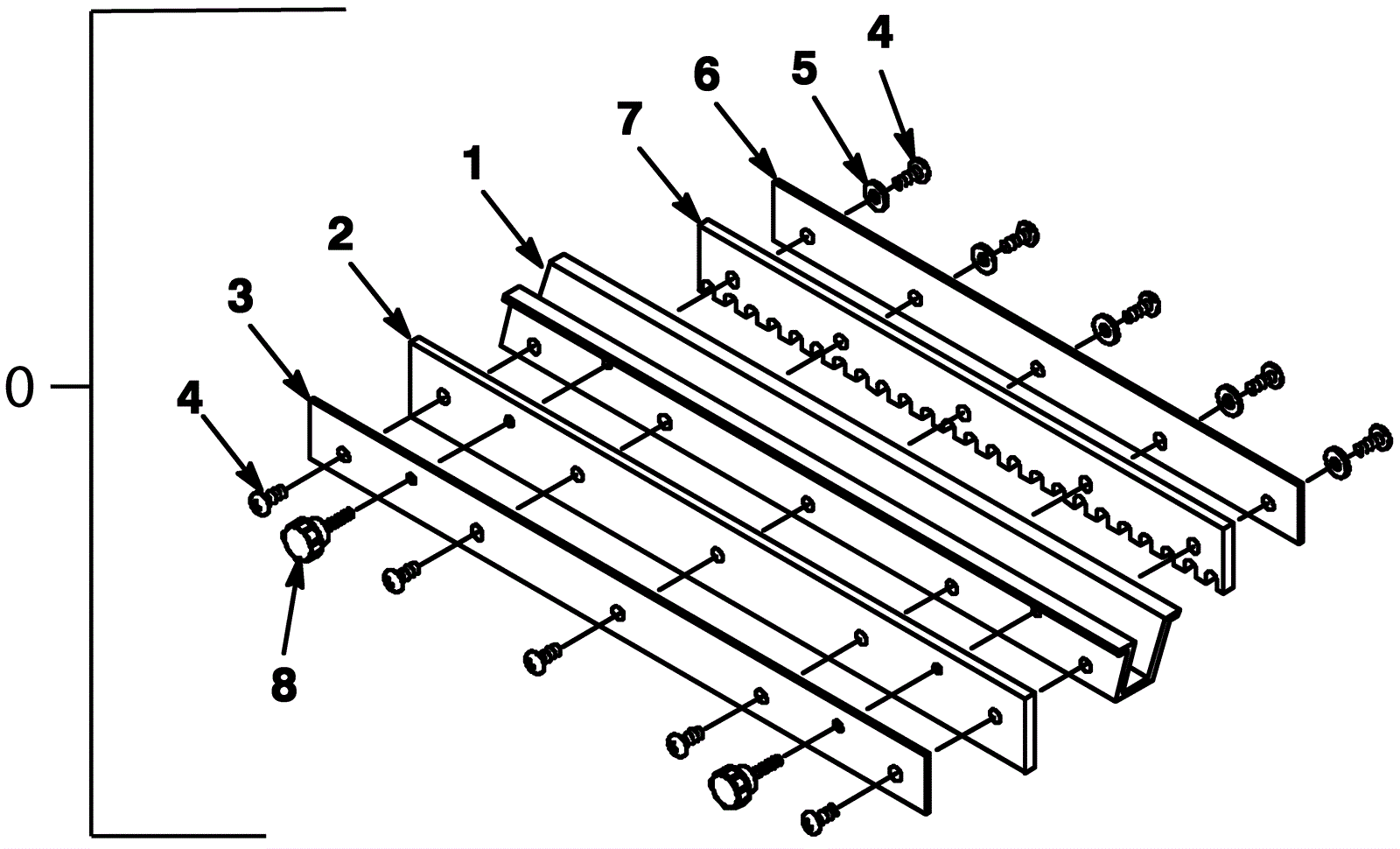

| # | Part | Description |
Req | Notes | Availability |
|---|
0 |
175-9810
|
13 inch (330mm) squeegee assembly |
1 |
(includes entire assembly) |
|
1 |
175-1320
|
Squeegee channel 15 inch |
1 |
|
|
2 |
175-1319
|
Squeegee blade 15 inch gum rubber |
1 |
|
|
3 |
175-1318
|
Squeegee plate 15 inch |
1 |
|
|
4 |
999-0811
|
Screw 10-32 x 3/8 pan head phillips stainless steel |
10 |
|
|
5 |
999-0393
|
Washer 3/16 flat aluminum |
5 |
|
|
6 |
175-1323
|
Squeegee plate 13 inch |
1 |
|
|
7 |
175-1322
|
Squeegee blade 15 inch urethane |
1 |
|
|
8 |
175-6050
|
Knob |
2 |
|
|
