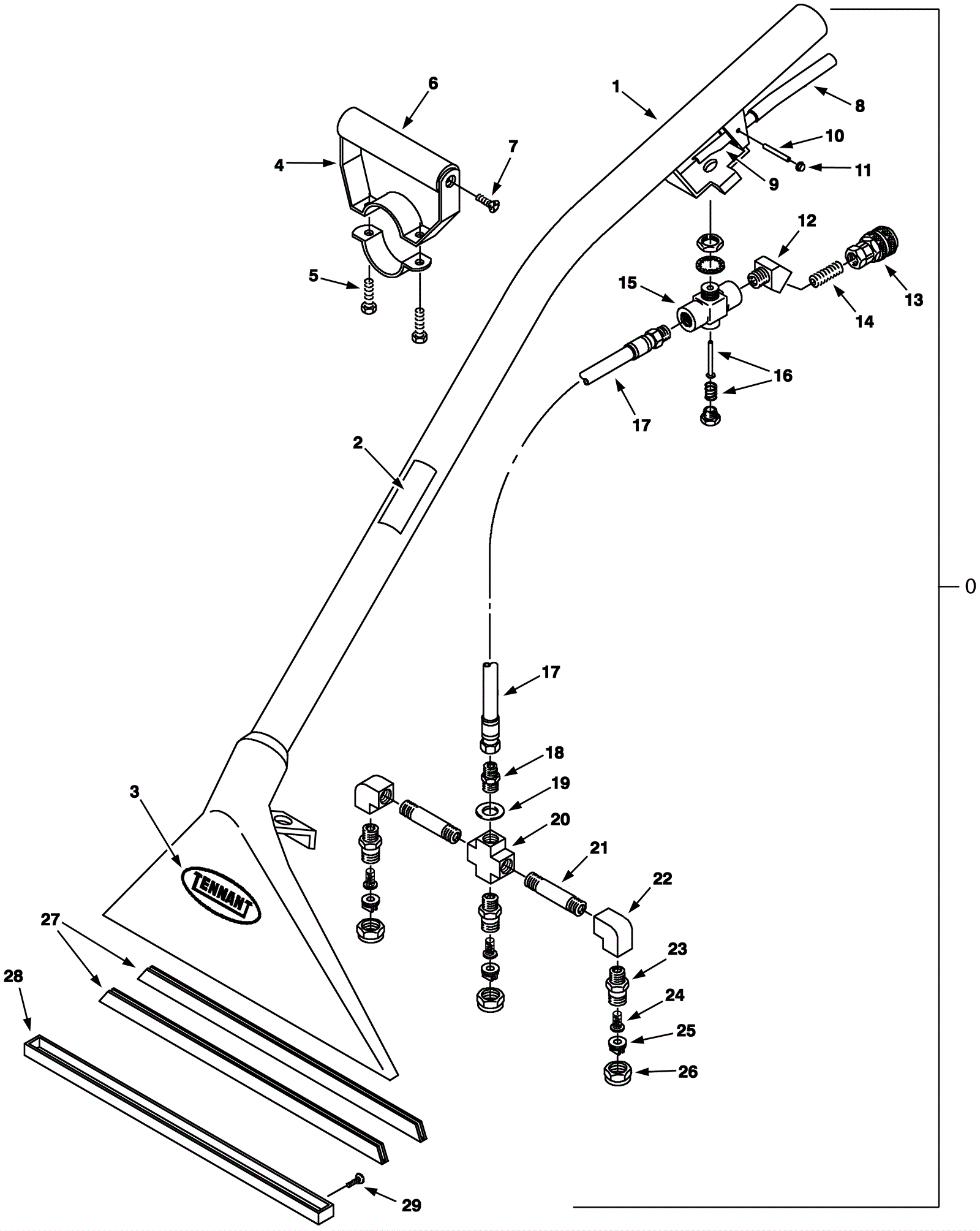

| # | Part | Description |
Req | Notes | Availability |
|---|
0a |
275-5842
|
13 inch floor tool assembly with glide plate |
1 |
(includes entire assembly,excluding 27) |
|
0b |
775-0395
|
13 inch low pressure wand assembly |
1 |
(includes entire assembly, excluding 28, 29) |
|
1 |
275-5848
|
Floor tool with lip (black) |
1 |
|
|
2 |
175-3564
|
Low pressure tool decal |
1 |
|
|
3 |
175-0147
|
Tennant decal |
1 |
|
|
4 |
175-8877
|
Handle assembly |
1 |
(includes 5, 6, 7) |
|
5 |
999-0633
|
Bolt 1/4-20 x 5/8 hex head stainless steel |
2 |
|
|
6 |
175-1813
|
Foam grip |
1 |
|
|
7 |
999-0990
|
Screw 1/4-20 x 5/8 flat head phillips stainless steel |
2 |
|
|
8 |
175-1816
|
Handle sleeve |
1 |
|
|
9 |
175-1815
|
Trigger |
1 |
|
|
10 |
175-1817
|
Handle pin |
1 |
|
|
11 |
175-1818
|
Nut 1/4 push |
2 |
|
|
12 |
175-6031
|
Straight jet fitting |
1 |
|
|
13 |
991-8158
|
1/4 inch BH2-60 female coupler (mate to QD40) |
1 |
|
|
14 |
175-6244
|
Nipple |
1 |
|
|
15 |
175-1819
|
Manual valve assembly |
1 |
(includes 16) |
|
16 |
175-1820
|
Valve pin and spring kit |
1 |
|
|
17 |
175-3565
|
Solution hose assembly |
1 |
|
|
18 |
175-6239
|
1/4 inch nipple |
1 |
|
|
19 |
175-1825
|
Washer |
1 |
|
|
20a |
175-1826
|
Spray bar without tips for 13 inch wand |
1 |
(includes 20b, 21, 22, 23) |
|
20b |
175-1829
|
Tee fitting |
1 |
|
|
21 |
175-6015
|
Nipple |
2 |
|
|
22 |
175-6248
|
90 degree elbow |
2 |
|
|
23 |
175-1830
|
1/4 inch male spray body |
3 |
|
|
24 |
175-1802
|
Mesh screen filter |
3 |
|
|
25 |
175-3566
|
T-jet tip fitting |
3 |
|
|
26 |
175-1834
|
Spray nozzle cap |
3 |
|
|
27 |
175-1321
|
13 inch pick-up shoe plate stainless steel |
2 |
|
|
28 |
275-4843
|
Glide plate |
1 |
|
|
29 |
175-9491
|
Screw #6-32 x 8/9 pan head phillips |
2 |
|
|
