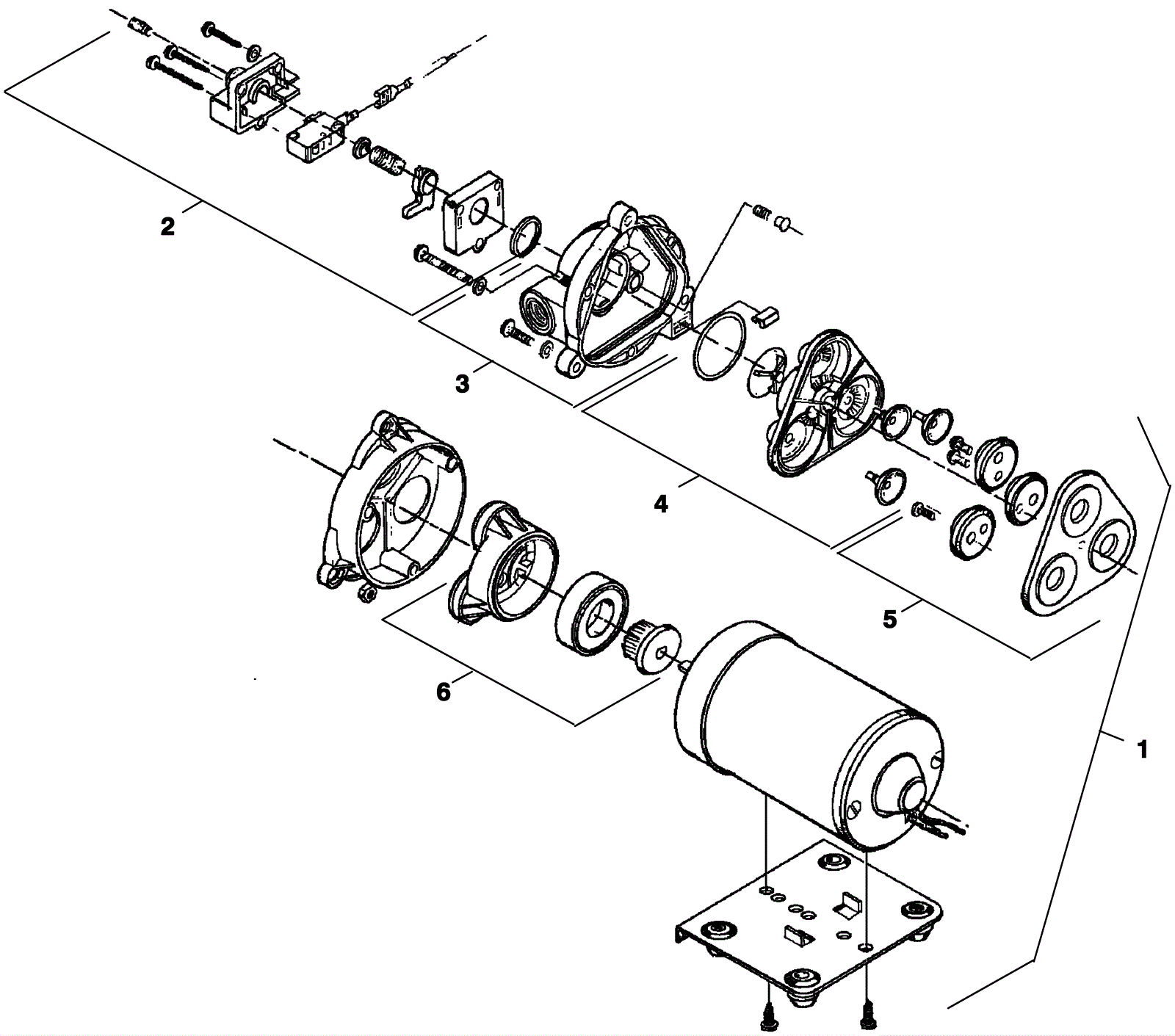

| # | Part | Description |
Req | Notes | Availability |
|---|
1a |
175-6011
|
120V 100 PSI pump |
1 |
(includes entire assembly) |
|
1b |
991-8225
|
Shurflo pump |
1 |
|
|
2a |
175-6003
|
Pressure switch kit |
1 |
|
|
2b |
175-6004
|
Viton pressure switch kit |
1 |
|
|
2c |
175-6005
|
Shurflo diaphragm switch kit |
1 |
|
|
3a |
175-6006
|
Upper pump housing kit |
1 |
|
|
3b |
175-6007
|
Check valve kit |
1 |
|
|
4 |
175-6008
|
Viton valve kit |
1 |
|
|
5 |
175-6009
|
Shurflo valve kit |
1 |
|
|
6 |
175-6010
|
Lower pump housing kit |
1 |
|
|
