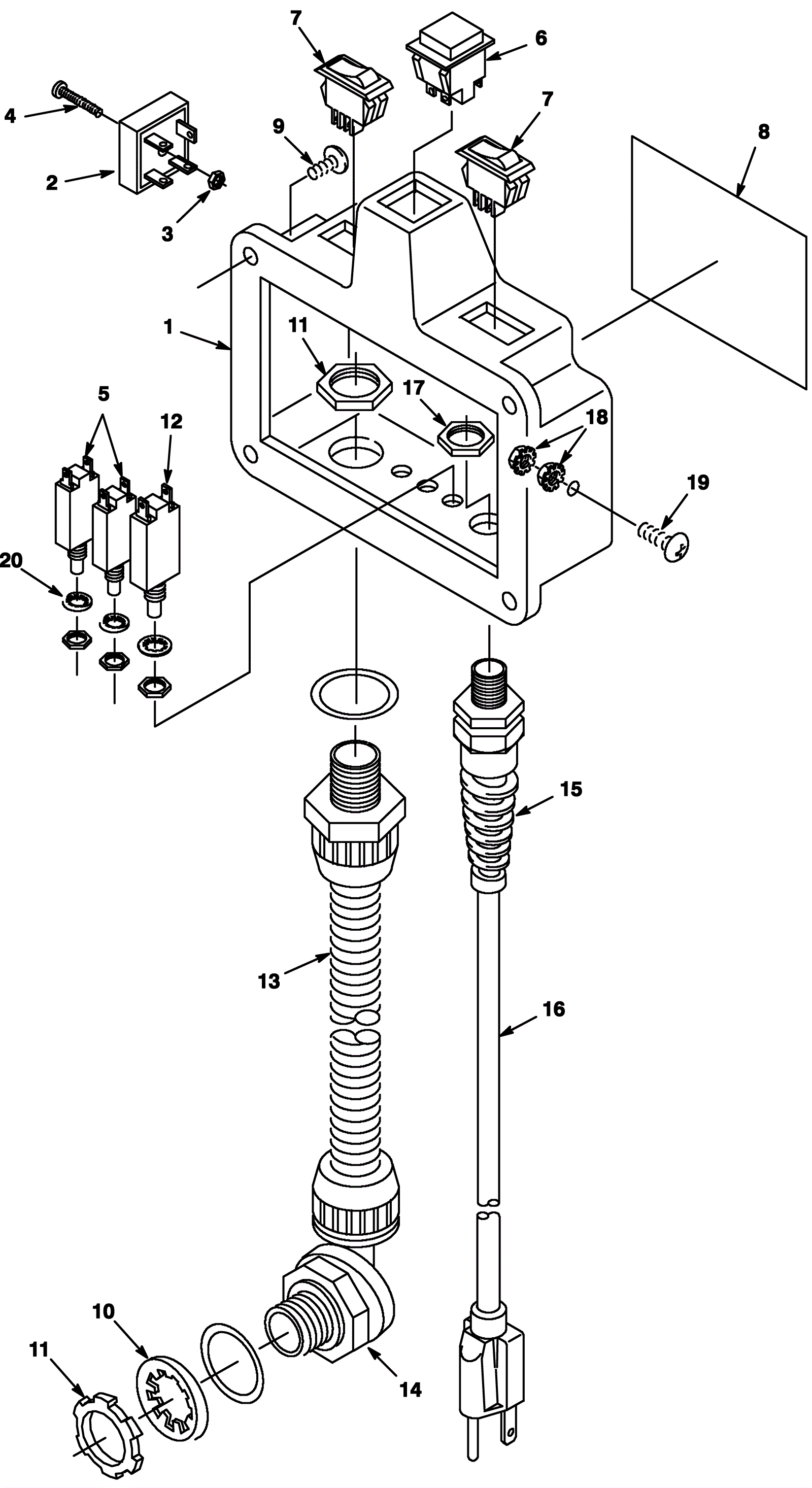

| # | Part | Description |
Req | Notes | Availability |
|---|
1a |
275-4898
|
120V switchbox kit (black) (OBSOLETE) |
1 |
|
|
1b |
275-4899
|
Switchbox |
1 |
|
|
2 |
175-6052
|
15amp rectifier |
1 |
|
|
3 |
999-1120
|
Nut M10-1.5 nylon insert lock stainless steel |
1 |
|
|
4 |
999-1411
|
Screw 10-24 x 1 round head slotted nylon |
1 |
|
|
5 |
175-6060
|
1.5amp circuit breaker |
2 |
|
|
6 |
175-6058
|
Push switch |
1 |
|
|
7 |
175-0005
|
Rocker switch |
2 |
|
|
8 |
275-4900
|
Operating instructions decal (OBSOLETE) |
1 |
|
|
9 |
999-1027
|
Screw 10-24 x 1 1/4 round head phillips stainless steel |
4 |
|
|
10 |
175-3550
|
Washer 13/16 internal star lock zinc (OBSOLETE) |
1 |
|
|
11 |
175-6158
|
Nut 1/2 conduit |
2 |
|
|
12 |
175-6061
|
12amp circuit breaker |
1 |
|
|
13 |
175-3554
|
Wiring harness |
1 |
(includes 14) |
|
14 |
175-1591
|
1/2 inch swivel elbow (OBSOLETE) |
3 |
|
|
15 |
175-0001
|
Strain relief |
1 |
|
|
16a |
275-4901
|
16/3 power cord 40 foot (OBSOLETE) |
1 |
(OEM) |
|
16b |
991-5006
|
16/3 replacement power cord 50 foot (yellow) |
1 |
(NON-OEM) |
|
16c |
991-5002
|
16/3 extension cord 50 foot (orange) |
1 |
(NON-OEM) |
|
17 |
175-7223
|
Hex nut |
1 |
|
|
18 |
999-0195
|
Nut 6-32 hex plain |
2 |
|
|
19 |
999-0249
|
Screw 6-32 x 5/8 round head slotted zinc plated |
1 |
|
|
20 |
999-9099
|
Washer M10 flat stainless steel |
3 |
|
|
