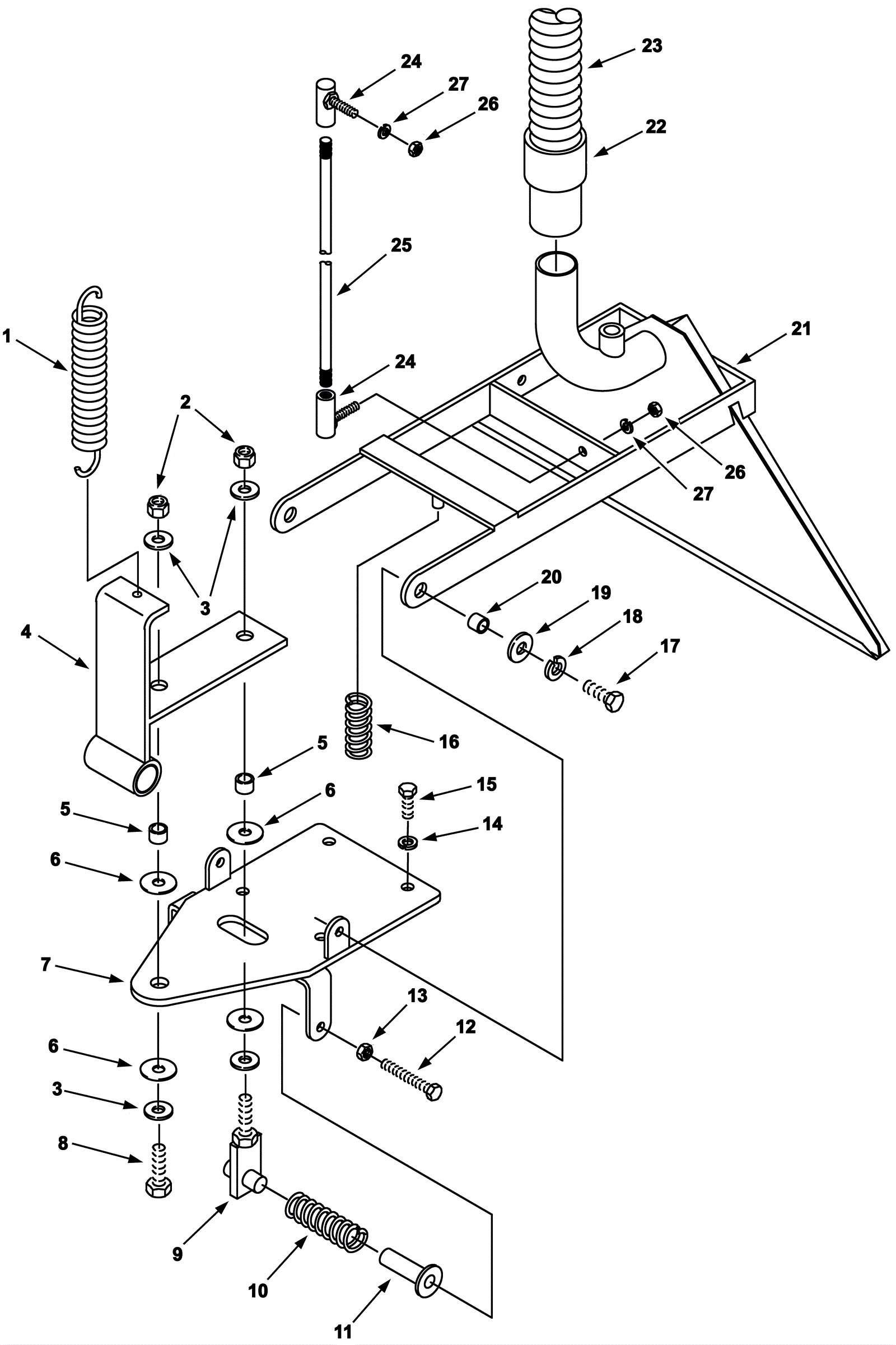

BOSS 2000E Pick-Up Head Assembly

#PartDescriptionPriceReqNotesAvailability
1 175-2748 Spring $17.05 1 ships same day
2 999-1208 Nut 1/2-13 nylon insert lock stainless steel $2.53 2 ships same day
3 999-0187 Washer 1/2 flat plain finish $0.99 4 ships same day
4 175-8060 Brush assembly pivot bracket $104.72 1 usually ships 1-5 days
5 175-2743 Sleeved bushing $4.75 2 ships same day
6 175-6565 Polypropelene washer $5.28 4 usually ships 1-5 days
7 175-8082 Brush mount bracket assembly $143.44 1 usually ships 1-5 days
8 999-0558 Bolt 1/2-13 x 1 1/2 hex head stainless steel $1.67 1 ships same day
9 175-8081 Pivot spring bolt $22.44 1 usually ships 1-5 days
10 175-8080 Pivot compression spring $9.35 2 usually ships 1-5 days
11 175-8079 Pivot spring pin $18.81 2 usually ships 1-5 days
12 999-1006 Screw 3/8-16 x 1 3/4 hex head stainless steel $2.31 2 ships same day
13 999-0628 Nut 3/8-16 hex jam stainless steel $0.99 2 ships same day
14 999-0553 Washer 5/16 medium split lock stainless steel $0.99 4 ships same day
15 999-0556 Bolt 5/16-18 x 3/4 hex head stainless steel $0.99 4 ships same day
16 175-1611 Spring $2.69 1 ships same day
17 999-0493 Bolt 3/8-16 x 3/4 hex head stainless steel $0.99 2 ships same day
18 999-0034 Washer 3/8 split lock plain finish $1.82 2 ships same day
19 999-0617 Washer 3/8 x 1 flat stainless steel $1.82 2 ships same day
20 175-2725 Bushing $7.48 2 usually ships 10-16 days
21 175-8078 Nozzle (black) $816.42 1 usually ships 10-16 days
22 175-0228 Hose cuff (black) $10.89 1 usually ships 10-16 days
23 175-6270 Vacuum hose with cuff $38.72 1 usually ships 10-16 days
24 175-4786 Ball joint $26.18 2 usually ships 10-16 days
25 175-8068 Brush lift rod $23.21 1 usually ships 10-16 days
26 999-1238 Nut 5/16-24 hex stainless steel $0.99 2 ships same day
27 999-0553 Washer 5/16 medium split lock stainless steel $0.99 2 ships same day
