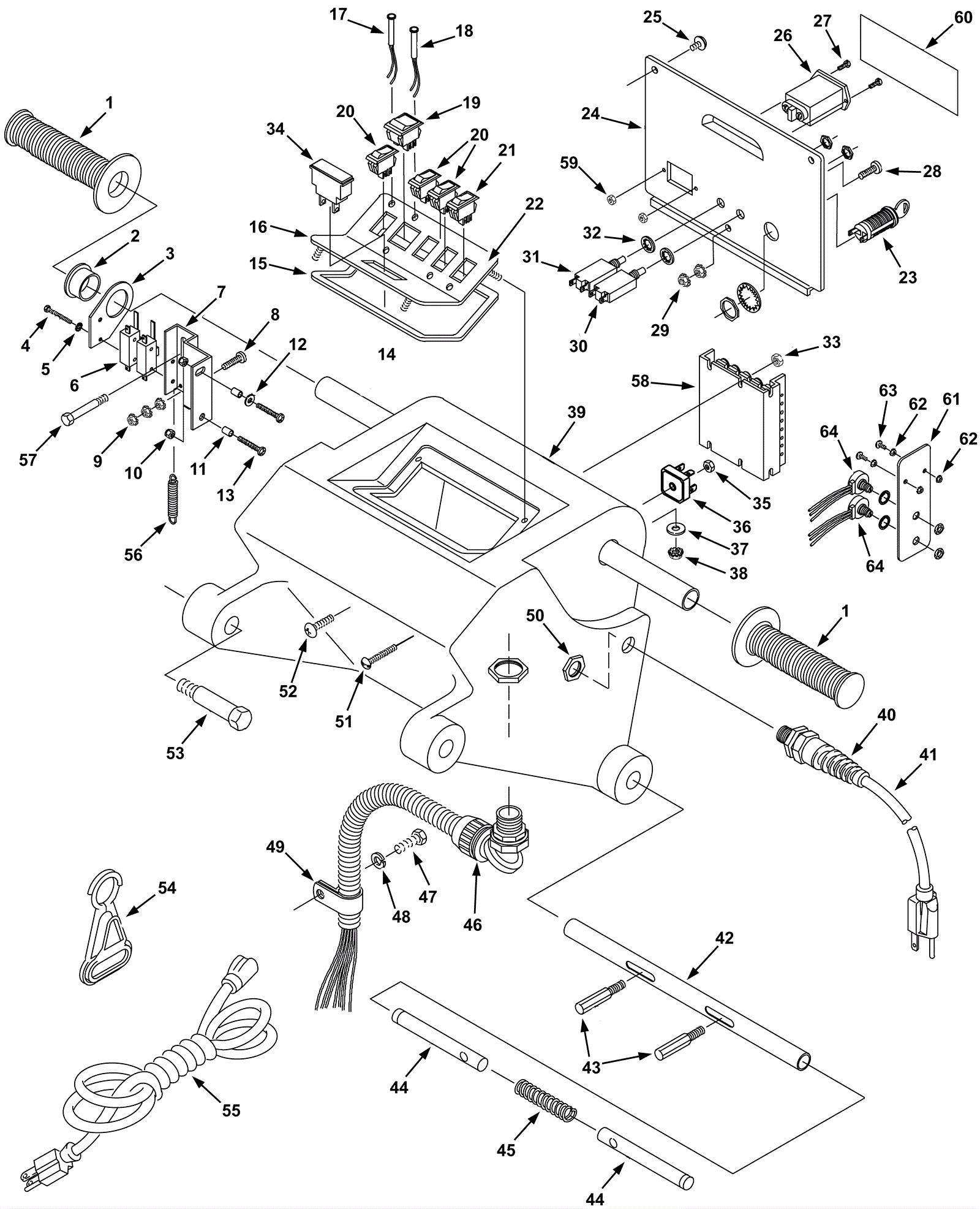

BOSS 2000E Control Console Assembly

#PartDescriptionPriceReqNotesAvailability
1a 175-2703 Handle grip $5.02 2 ships same day
1b 991-8571 Handle grip $2.91 2 ships same day
2 175-3093 Flanged bushing $4.88 1 usually ships 10-16 days
3 175-3115 Switch bracket $7.48 1 usually ships 1-5 days
4 999-1157 Screw 6-32 x 1 5/8 pan head phillips zinc $0.99 2 ships same day
5 999-0148 Washer #6 external star lock zinc plated $0.99 2 ships same day
6a 175-3116 Snap switch $14.08 2 usually ships 10-16 days
6b 991-5121 Charger interlock switch $14.08 2 (NON-OEM) ships same day
7 175-3117 Switch mount $23.76 1 usually ships 1-5 days
8 999-1028 Screw 10-24 x 3/4 truss head phillips stainless steel $1.69 1 ships same day
9 999-0356 Nut 10-24 lock stainless steel $0.99 3 ships same day
10 999-0152 Nut 1/4-20 nylon insert lock zinc plated $0.99 2 ships same day
11 175-8077 Nylon spacer $4.22 2 usually ships 10-16 days
12 999-0016 Washer 1/4 flat plain finish $0.99 1 ships same day
13 999-0366 Screw 1/4-20 x 1 1/2 round head slotted zinc plated $0.99 2 ships same day
14 175-3094 Handle tube $83.05 1 usually ships 10-16 days
15 175-2696 Console gasket $5.83 1 usually ships 1-5 days
16 275-4867 Control panel $42.24 1 usually ships 1-5 days
17 275-4868 120V light indicator (blue) $18.04 1 usually ships 1-5 days
18 275-4869 120V light indicator (green) $12.10 4 usually ships 1-5 days
19 275-4870 Rocker switch DPDT blank $16.06 1 usually ships 10-16 days
20 275-2302 Rocker switch SPST blank $10.12 3 usually ships 10-16 days
21 175-7871 Rocker switch $17.60 1 usually ships 10-16 days
22 275-4871 Decal dashboard $92.51 1 usually ships 1-5 days
23a 175-4287 Key switch assembly $143.33 1 (includes 23b) usually ships 10-16 days
23b 175-0185 Double sided key (steel) $15.73 1 ships same day
24 275-4872 Cover plate $70.51 1 usually ships 1-5 days
25 999-0999 Screw 10-24 x 3/8 truss head phillips stainless steel $1.43 2 ships same day
26 275-6915 Hourmeter gauge $49.39 1 usually ships 10-16 days
27 175-5725 Screw #6-32 x 7/16 pan head phillips $3.70 2 usually ships 1-5 days
28 999-1028 Screw 10-24 x 3/4 truss head phillips stainless steel $1.69 1 ships same day
29 999-0356 Nut 10-24 lock stainless steel $0.99 2 ships same day
30 175-6060 1.5amp circuit breaker $51.04 1 usually ships 10-16 days
31 175-6215 Circuit breaker 2.5 amp $36.85 1 ships same day
32 999-9099 Washer M10 flat stainless steel $0.99 2 ships same day
33 999-0442 Nut 10-24 nylon insert lock stainless steel $1.76 2 ships same day
34 175-6209 Amp meter $73.92 1 usually ships 10-16 days
35 999-1120 Nut M10-1.5 nylon insert lock stainless steel $3.92 1 ships same day
36 175-6052 15amp rectifier $24.64 1 ships same day
37 999-0016 Washer 1/4 flat plain finish $0.99 4 ships same day
38 999-0356 Nut 10-24 lock stainless steel $0.99 4 ships same day
39 275-4873 Control housing (OBSOLETE) $137.39 1 usually ships 1-5 days
40 175-0340 Strain relief $10.34 1 usually ships 10-16 days
41 175-6218 14/3 pigtail cord 34 inch (yellow) $18.48 1 usually ships 10-16 days
42 175-2709 Handle adjustment tube $48.84 1 usually ships 1-5 days
43 175-2710 Handle adjustment pin $17.05 2 usually ships 1-5 days
44 175-2711 Handle adjustment locking pin $21.23 2 usually ships 1-5 days
45 175-2712 Spring $5.50 1 usually ships 1-5 days
46 275-4874 Wiring harness $192.17 1 usually ships 1-5 days
47 999-0424 Bolt 5/16-18 x 1 hex head stainless steel $0.99 1 ships same day
48 999-0553 Washer 5/16 medium split lock stainless steel $0.99 1 ships same day
49 175-3005 P clamp $4.22 1 usually ships 10-16 days
50 175-6158 Nut 1/2 conduit $4.88 1 usually ships 10-16 days
51 999-1411 Screw 10-24 x 1 round head slotted nylon $0.99 1 ships same day
52 999-0454 Screw 10-24 x 1/2 truss head phillips zinc plated $0.99 2 ships same day
53 175-0981 Bolt 5/8 x 2 shoulder $8.69 2 usually ships 1-5 days
54 175-0236 Cord belt clip $10.23 1 ships same day
55a 175-0993 14/3 extension cord 75 foot $179.52 1 (OEM) usually ships 10-16 days
55b 991-5001 14/3 extension cord 50 foot (yellow) $103.23 1 (NON-OEM) ships same day
55c 991-5005 14/3 replacement power cord 50 foot (yellow) $108.51 1 (NON-OEM) ships same day
56 175-6291 Handle spring $7.70 1 usually ships 10-16 days
57 999-0893 Screw 5/16-18 x 2 hex head stainless steel $0.99 1 ships same day
58 175-8076 Control board $485.54 1 usually ships 10-16 days
59 175-1009 Nut lock $1.54 2 usually ships 1-5 days
60 175-3906 Warning decal $10.12 1 usually ships 1-5 days
61 275-4875 Mounting plate $28.27 1 usually ships 1-5 days
62 999-0356 Nut 10-24 lock stainless steel $0.99 4 ships same day
63 999-0454 Screw 10-24 x 1/2 truss head phillips zinc plated $0.99 2 ships same day
64 275-4876 Potentiometer 10k $43.56 2 usually ships 1-5 days
