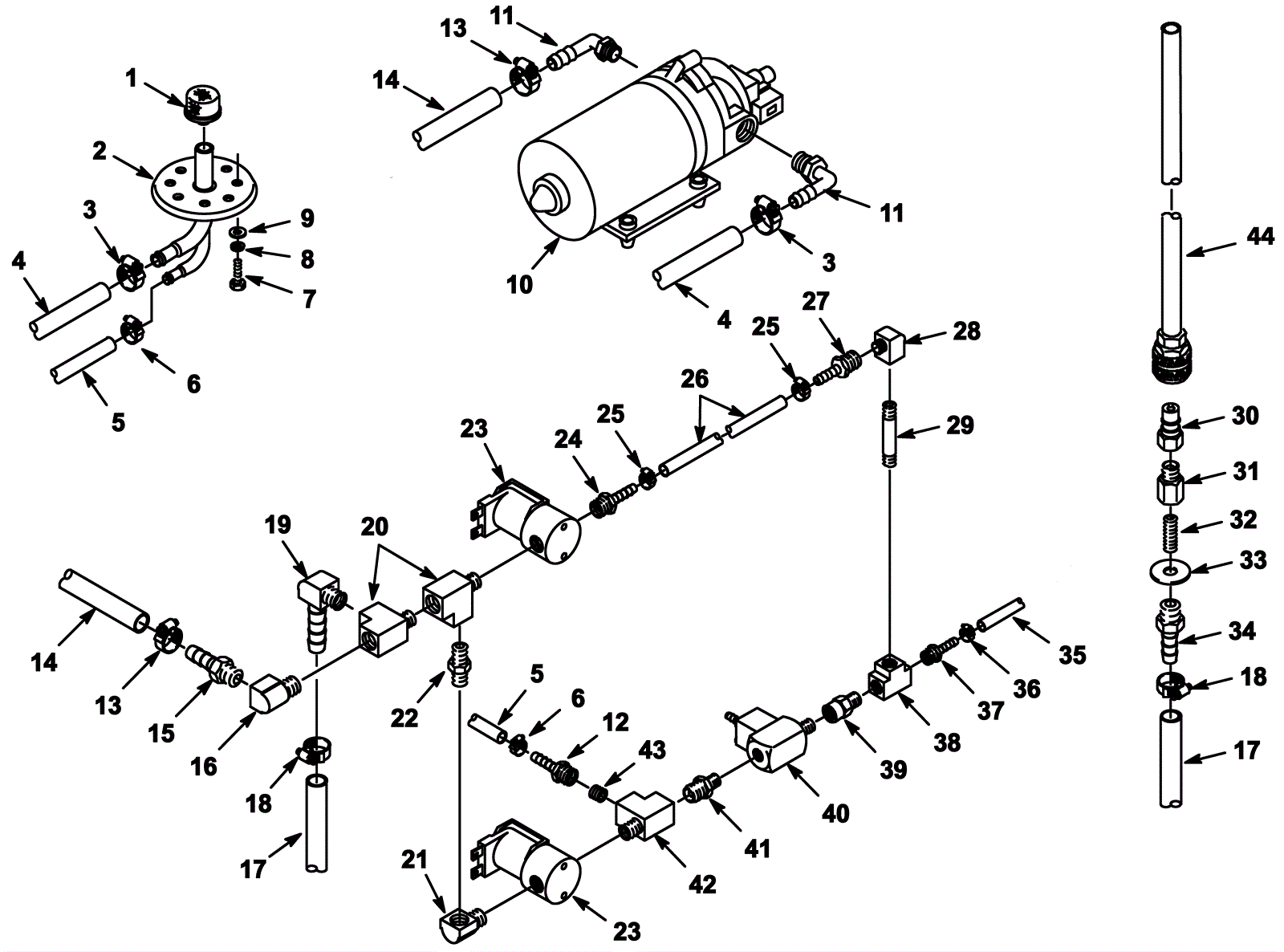

Plumbing Assembly

#PartDescription ReqNotesAvailability
1 175-6079 Mesh filter screen 1
2 175-7311 Bladder plate assembly (OBSOLETE) 1
3 175-6081 Hose clamp 2
4 275-4821 Hose 1/2 inch x 2 3/4 foot 1
5 175-6023 Hose 1/4 x 36 inch (gray) 1
6 997-2001 Hose clamp 2
7 999-1032 Screw 1/4-20 x 5/8 hex head stainless steel 4
8 999-0632 Washer 1/4 split lock stainless steel 4
9 999-0016 Washer 1/4 flat plain finish 4
10a 175-6011 120V 100 PSI pump 1 (OEM)
10b 991-8225 Shurflo pump 1 (NON-OEM)
11 175-6016 Elbow 2
12 175-1655 Adapter fitting 1
13 175-0199 Hose clamp 2
14 175-7221 24 inch hose (red) 1
15 175-6030 Straight hosebarb 1
16 175-2614 90 degree elbow fitting 1
17 175-6020 Braided hose 3/8 x 45 inch (gray) 1
18 175-6081 Hose clamp 1
19 175-2997 Elbow 1
20 175-6029 Straight tee 2
21 175-2614 90 degree elbow fitting 1
22 175-6239 1/4 inch nipple 1
23a 175-6025 Solution solenoid valve 2 (if solenoid valve is leaking try replacing the plunger with spring first before replacing entire solenoid valve)
23b 991-8598 Replacement plunger with spring for solenoid valve 1
24 175-6024 Hosebarb 1
25 175-6170 Hose clamp 2
26 175-6023 Hose 1/4 x 36 inch (gray) 1
27 175-3529 Brass fitting 1
28 175-1661 90 degree elbow fitting 1
29 275-4822 Brass fitting 1
30 991-8150 1/4 inch BH2-61 male nipple (mate to QD80) 1
31 175-6014 Adapter 1
32 175-6015 Nipple 1
33 999-0187 Washer 1/2 flat plain finish 1
34 175-6022 Brass fitting 1
35 175-7364 16 inch hose (gray) 1
36 175-6170 Hose clamp 1
37 175-1659 Fitting 1
38 175-7939 Brass tee fitting 1
39 175-8095 Check valve 1
40 275-4823 Injector 1
41 175-6230 Brass reducer 1
42 175-6029 Straight tee 1
43 175-4878 Plug fitting 1
44 175-3579 Pump out hose 1
