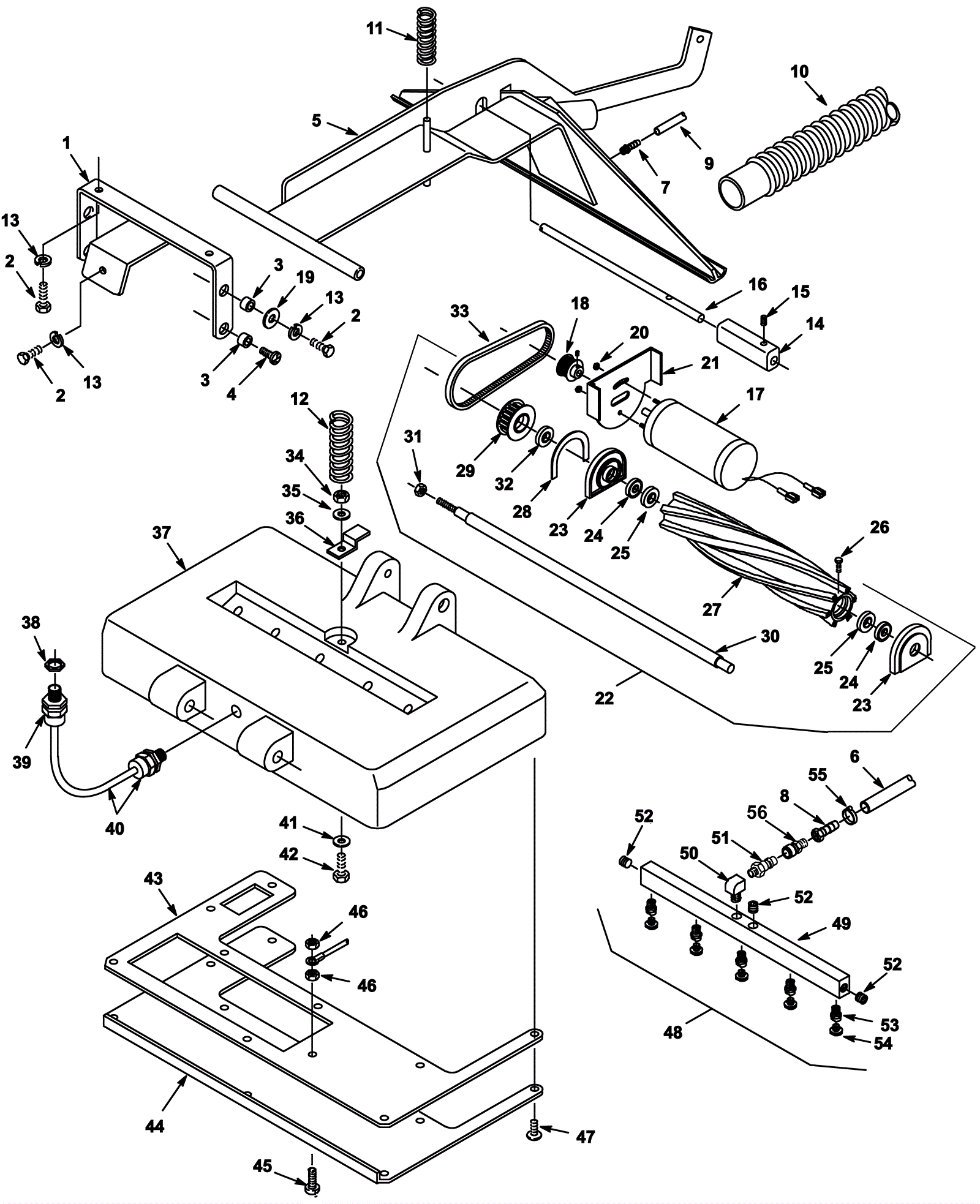

BOSS 2000LE Brush Base Assembly

#PartDescriptionPriceReqNotesAvailability
1 175-3526 Mounting bracket $101.75 1 usually ships 1-5 days
2 999-0030 Bolt 5/16-18 x 5/8 hex head grade 5 zinc plated $1.14 5 ships same day
3 175-2725 Bushing $7.48 4 usually ships 5-16 days
4 175-6187 Screw 3/8-16 x 3/4 inch truss head phillips $5.50 4 usually ships 1-5 days
5 175-3527 Pickup tool with lever $830.50 1 usually ships 1-5 days
6 175-7364 16 inch hose (gray) $14.63 1 usually ships 5-16 days
7 275-4818 Barb fitting $4.88 1 usually ships 1-5 days
8 175-3529 Brass fitting $5.50 1 usually ships 5-16 days
9 275-5841 PVC hose 1/8 x 42 inch (clear) $20.57 1 usually ships 5-16 days
10 175-3530 Vacuum hose with cuffs 1 1/2 x 46 inch $52.47 1 ships same day
11 175-3528 Pressure spring $11.44 1 usually ships 5-16 days
12 175-1611 Spring $2.69 1 ships same day
13 999-0034 Washer 3/8 split lock plain finish $1.82 4 ships same day
14 175-3531 Cam adjuster $55.55 1 usually ships 1-5 days
15 999-0096 Screw 1/4-20 x 1/4 cup point socket set plain finish $0.99 1 ships same day
16 175-3532 Cam adjuster lever $11.88 1 usually ships 1-5 days
17a 175-6131 120V brush motor $295.35 1 ships same day
17b 175-1266 Carbon brush (sold individually) $118.14 2 usually ships 1-5 days
18 175-6129 Motor pulley (Tennant Industrial) $39.00 1 usually ships 5-16 days
19 999-0617 Washer 3/8 x 1 flat stainless steel $1.82 2 ships same day
20 999-0239 Nut 10-32 k-lock zinc plated $0.99 2 ships same day
21 175-6130 Motor bracket $23.76 1 usually ships 5-16 days
22 175-6233 20 inch brush assembly $536.15 1 (includes 23-32) usually ships 5-16 days
23 175-6133 Bearing block $9.79 2 usually ships 5-16 days
24a 175-0069 Brush bearing $18.70 2 (OEM) ships same day
24b 991-5125 Brush bearing $2.75 2 (NON-OEM) ships same day
25 175-6134 Brush bearing seal $17.16 2 usually ships 5-16 days
26 999-0334 Bolt 1/4-20 x 3/4 inch hex head stainless steel $3.85 4 ships same day
27 175-6136 Scrubbing brush - CYLINDRICAL $195.14 1 usually ships 5-16 days
28 175-6143 Bearing block gasket $5.50 1 ships same day
29 175-6140 Brush pulley $37.84 1 usually ships 5-16 days
30 175-6138 20 inch brush shaft $156.42 1 usually ships 5-16 days
31 999-0430 Nut 5/16-18 hex jam plain finish $0.99 1 ships same day
32 175-6139 Spacer $4.75 1 usually ships 5-16 days
33 175-6141 Brush drive belt $30.91 1 usually ships 5-16 days
34 999-0513 Nut 3/8-16 nylon insert lock type NE stainless steel $3.96 1 ships same day
35 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel $0.99 1 ships same day
36 175-3539 Latch $30.14 1 usually ships 1-5 days
37 175-3538 20 inch base (black) $298.54 1 usually ships 1-5 days
38 175-6158 Nut 1/2 conduit $4.88 1 usually ships 5-16 days
39 175-6124 Cord grip $10.34 1 usually ships 1-5 days
40 175-3537 18/3 cord 24 inch (black) $17.27 1 usually ships 1-5 days
41 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel $0.99 1 ships same day
42 999-1006 Screw 3/8-16 x 1 3/4 hex head stainless steel $2.31 1 ships same day
43 175-6235 20 inch base gasket $37.29 1 usually ships 5-16 days
44 175-6145 20 inch brush base plate (black) $147.84 1 usually ships 5-16 days
45 999-0454 Screw 10-24 x 1/2 truss head phillips zinc plated $0.99 1 ships same day
46 999-0356 Nut 10-24 lock stainless steel $0.99 2 ships same day
47 999-0811 Screw 10-32 x 3/8 pan head phillips stainless steel $0.99 12 ships same day
48 275-4819 Spray bar kit $380.71 1 (includes 49-54) usually ships 5-16 days
49 175-6040 20 inch spray bar manifold $118.58 1 usually ships 5-16 days
50 175-1661 90 degree elbow fitting $5.50 1 usually ships 5-16 days
51 175-1684 Quick disconnect fitting $22.00 1 usually ships 5-16 days
52 175-6121 Brass plug $4.88 3 ships same day
53 175-6002 Spray jet nozzle fitting $95.26 5 (includes 54) usually ships 5-16 days
54 175-6001 Twist-out spray tip $26.18 5 usually ships 5-16 days
55 175-6170 Hose clamp $4.88 1 ships same day
56 175-1652 1/8 inch female brass quick coupler $35.97 1 usually ships 5-16 days
