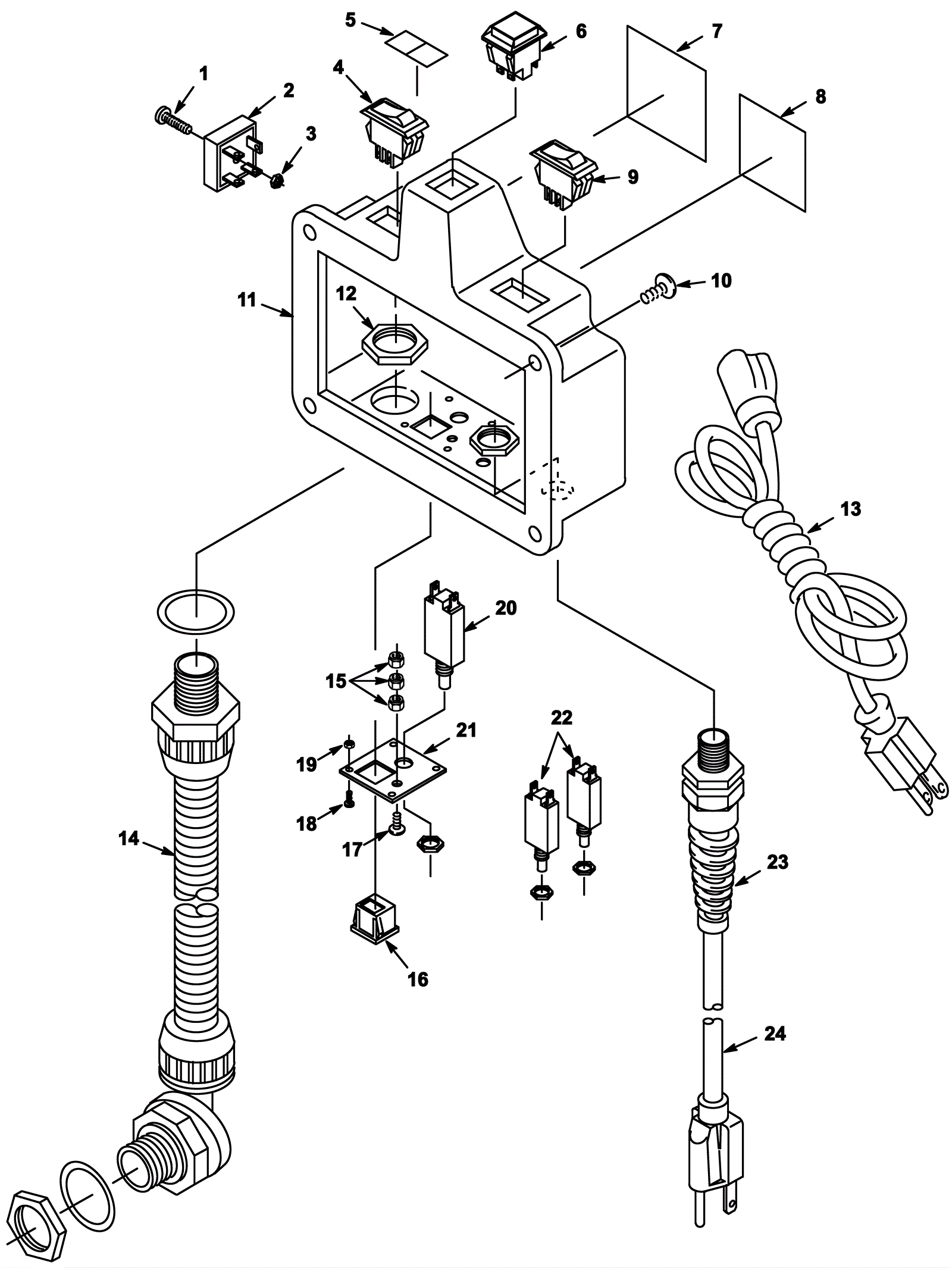

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
999-1411
|
Screw 10-24 x 1 round head slotted nylon |
1 |
|
|
2 |
175-6052
|
15amp rectifier |
1 |
|
|
3 |
999-1120
|
Nut M10-1.5 nylon insert lock stainless steel |
1 |
|
|
4 |
175-7871
|
Rocker switch |
1 |
(cleaning mode selector) |
|
5 |
275-4812
|
Decal (red and blue) |
1 |
|
|
6 |
175-6057
|
Brush pulse switch |
1 |
|
|
7 |
275-2369
|
Flammable material decal |
1 |
|
|
8 |
275-2370
|
Read manual decal |
1 |
|
|
9 |
175-0005
|
Rocker switch |
1 |
(master) |
|
10 |
999-1080
|
Screw 1/4-20 x 5/8 truss head phillips stainless steel |
4 |
|
|
11 |
N/A
|
Not available |
1 |
(Switchbox) |
|
12 |
175-6158
|
Nut 1/2 conduit |
1 |
|
|
13a |
175-6091
|
16/3 extension cord 50 foot (yellow) |
1 |
(OEM) |
|
13b |
991-5002
|
16/3 extension cord 50 foot (orange) |
1 |
(NON-OEM) |
|
13c |
991-5006
|
16/3 replacement power cord 50 foot (yellow) |
1 |
(NON-OEM) |
|
13d |
991-5007
|
18/3 replacement power cord 50 foot (black) |
1 |
(NON-OEM) |
|
14 |
275-4813
|
Wire harness (OBSOLETE) |
1 |
|
|
15 |
999-0356
|
Nut 10-24 lock stainless steel |
3 |
|
|
16 |
275-4814
|
Cord grip (OBSOLETE) |
1 |
|
|
17 |
999-1028
|
Screw 10-24 x 3/4 truss head phillips stainless steel |
1 |
|
|
18 |
999-1412
|
Screw 6-32 x 1/2 round head phillips stainless steel |
4 |
|
|
19 |
999-0227
|
Nut 6-32 hex nylon insert lock jam zinc plated |
4 |
|
|
20 |
175-6061
|
12amp circuit breaker |
1 |
(vacuum) |
|
21 |
275-4816
|
Mounting plate |
1 |
|
|
22 |
175-6060
|
1.5amp circuit breaker |
2 |
(brush and pump) |
|
23 |
175-0001
|
Strain relief |
1 |
|
|
24 |
175-6064
|
14/3 pigtail cord 18 inch |
1 |
|
|
