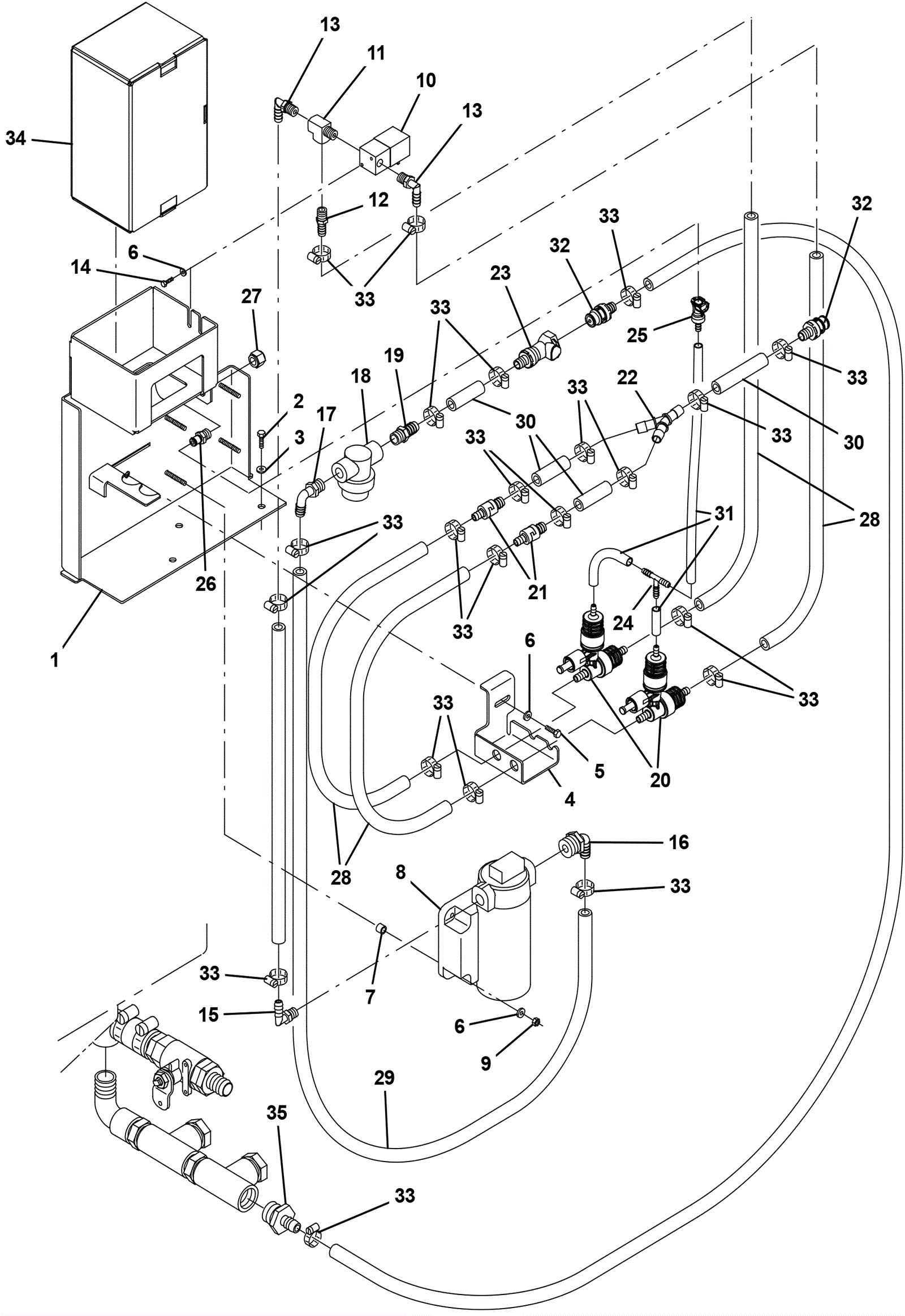

FaST Pumps and Detergent Assembly - After SN 003746

#PartDescription ReqNotesAvailability
1 275-9299 Bracket weldment (Tennant Industrial) 1
2 999-0783 Screw M8-1.25 x 16mm hex head 3
3 999-0024 Washer 5/16 flat stainless steel 3
4 275-9300 Mounting bracket (Tennant Industrial) 1
5 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish 1
6 999-0998 Washer #10 flat stainless steel 7
7 175-0550 Sleeve 4
8 275-9301 PUMP, SOLTN, 36VDC, 65PSI [FaST II+] (Tennant Industrial) 1
9 175-2894 Nut M5-.8 hex nylon locking 4
10 275-9293 VALVE, WATER, SOLENOID, 36VDC 6.0MM PF04 (Tennant Industria 1
11 175-6029 Straight tee 1
12 175-7218 Plastic straight fitting 1
13 175-6926 Plastic elbow fitting 2
14 175-0852 Bolt 5mm-.8 x 12 hex head 2
15 275-9302 FITTING, NYL, QDC, E90, BM06/ QM10 (Tennant Industrial) 1
16 275-9303 FITTING, NYL, QDC, E90, BM08/ QM10 (Tennant Industrial) 1
17 175-5241 90 degree elbow 1
18a 175-9025 In-line screen filter assembly 1 (OEM)
18b 991-8582 Mesh inline filter 1 (NON-OEM)
19 175-5234 Plastic fitting 1
20 275-7391 Injector assembly 2
21 275-9305 Check valve (Tennant Industrial) 2
22 175-5240 FITTING, PLSTC, Y, BM08/BM08/BM08, NYL (Tennant Industrial) 1
23 275-9306 HOUSING, CPLG, QF / PM08 (Tennant Industrial) 2
24 175-7303 1/4 inch union tee 1
25 175-5311 Female fitting with valve 1
26 175-5312 Male coupling strainer fitting 1
27 175-5313 Plastic cap fitting 1
28 275-1534 3 foot PVC hose (braided) (Tennant Industrial) 2
29 175-5229 HOSE, AFMKT, PVC, BRD, 0.50ID, 02FT, CLR (Tennant Industria 1
30 175-5249 Hose 1/2 x 1 foot (Tennant Industrial) 1
31 175-5306 HOSE, AFMKT, PVC, CLR, 0.25ID, 02FT (Tennant Industrial) 1
32 275-9307 INSERT, CPLG, QM, BM08 (Tennant Industrial) 2
33 175-6081 Hose clamp 22
35 175-2523 Plastic fitting 1
