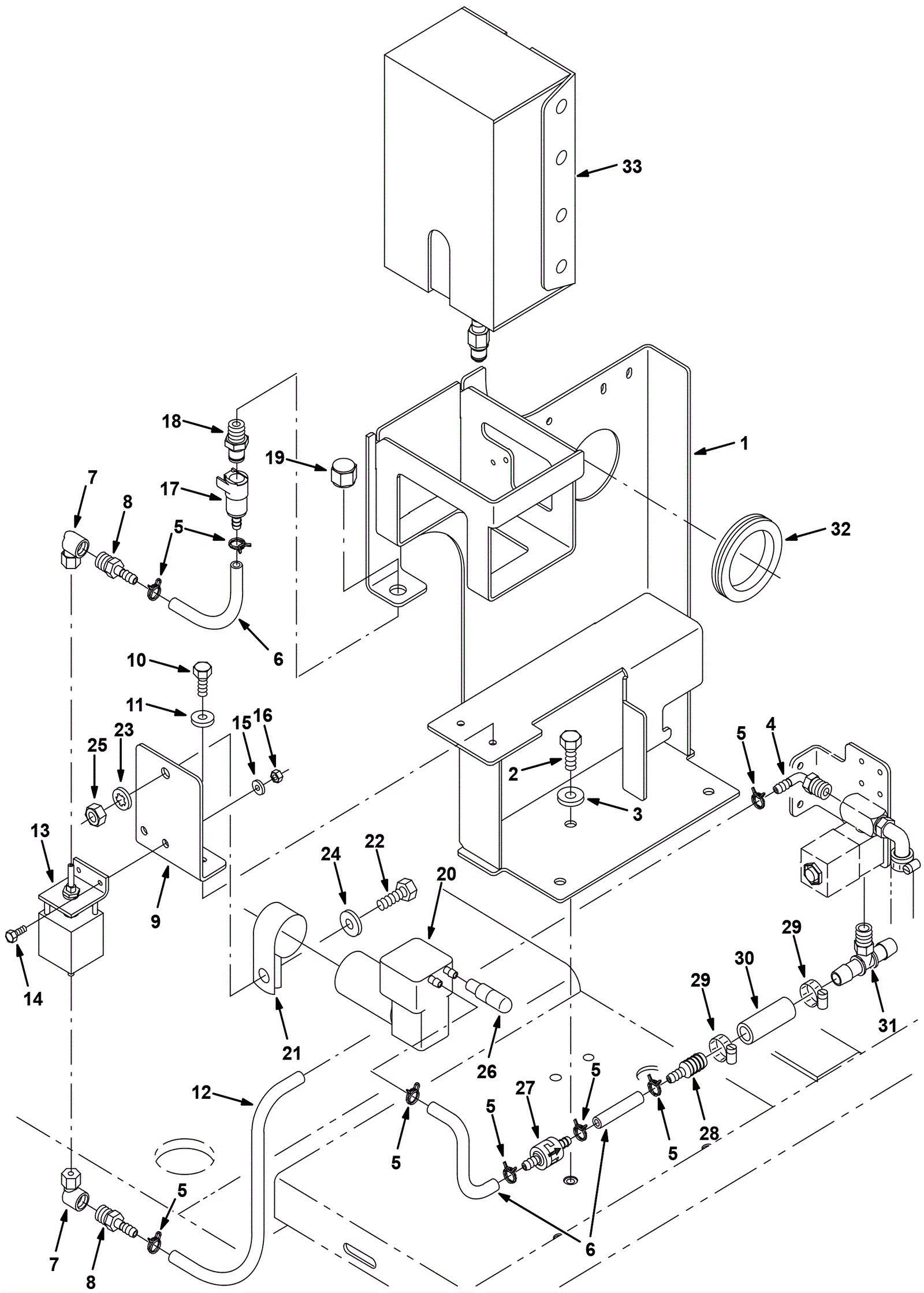

FaST Air Pump and Detergent Assembly - Before SN 003747

#PartDescription ReqNotesAvailability
1a 275-8334 BRACKET WLDT [7300/8300 FaST] (Tennant Industrial) 1 (before SN 002448)
1b 275-9294 BRACKET WLDT [7300/8300 FaST] (Tennant Industrial) 1 (between SN 002448 and SN 003746)
2 999-0499 Bolt M8-1.25 x 20mm hex head full thread stainless steel 3
3 999-0024 Washer 5/16 flat stainless steel 3
4 275-8335 FITTING, PLSTC, E90, BM04/PM04, NYL 1
5 175-5304 Hose clamp 8
6 175-9691 Hose 1/4 x 1 foot (Tennant Industrial) 2
7 175-5307 Brass fitting 2
8 175-1659 Fitting 2
9 275-8336 BRACKET, MTG, PUMP, DETGT [7300/8300] (Tennant Industrial) 1
10 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish 2
11 999-0123 Washer 1/4 SAE flat zinc plated 2
12 175-5306 HOSE, AFMKT, PVC, CLR, 0.25ID, 02FT (Tennant Industrial) 1
13 275-8337 PUMP, DETGT [560S] (Tennant Industrial) 1
14 999-0521 Screw M4-.7 x 12mm pan head phillips zinc 2
15 999-0377 Washer 6 SAE flat plain finish 2
16 999-0954 Nut M4-.7 nylon insert lock stainless steel 2
17 175-5311 Female fitting with valve 1
18 175-5312 Male coupling strainer fitting 1
19 175-5313 Plastic cap fitting 1
20 175-5316 Elevated air pump 36vdc 1
21 175-5314 P clamp (Tennant Industrial) 1
22 999-0501 Bolt M8-1.25 x 25mm hex head full thread stainless steel 1
23 999-0406 Washer 5/16 internal star lock zinc plated 1
24 999-0024 Washer 5/16 flat stainless steel 1
25 999-0471 Nut M8-1.25 nylon insert lock zinc plated 1
26 175-5318 Filter assembly 1
27 275-8338 VALVE, CHECK, 2GPM .5PSI BM04/BM04 (Tennant Industrial) 1
28 275-8339 FITTING, PLSTC, STR, BM04/BM08 (Tennant Industrial) 1
29 175-6081 Hose clamp 2
30 175-5249 Hose 1/2 x 1 foot (Tennant Industrial) 1
31 275-4755 Tee fitting 1
32 275-9295 Rubber grommet 1
33 275-9297 2 liter detergent - DO NOT ORDER 1 (detergent)
